Valve Cover: Installation

To install, reverse the removal procedure.

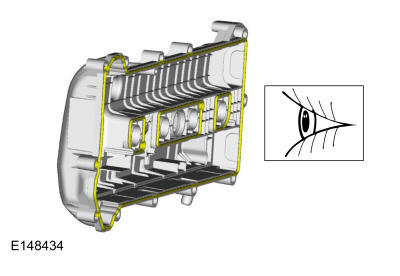

Inspect and if necessary, install new valve cover gaskets.

Courtesy of FORD MOTOR COMPANY
Install new valve cover seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

Courtesy of FORD MOTOR COMPANY
NOTE: The component must be installed within 10 minutes of applying the sealant.

Apply a 6 mm bead of silicone sealant.

Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
Tighten in sequence shown.
Torque: 89 lb.in (10 Nm)

Fig 1: Valve Cover Tightening Sequence

Courtesy of FORD MOTOR COMPANY
