Timing Cover: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the following items:

    1. Remover the cowl panel. Refer to: Cowl Panel .
    2. Remove the crankshaft pulley. Refer to: Crankshaft Pulley .
    3. Remove the engine mountings. Refer to: Engine Mount .

  3. Using the special tool, remove and discard the crankshaft front seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.
    GFD304015Courtesy of FORD MOTOR COMPANY
  4. Remove the bolts and the accessory drive belt tensioner.
    GFD304144Courtesy of FORD MOTOR COMPANY
  5. Remove the bolt and the idler pulley.
    GFD304145Courtesy of FORD MOTOR COMPANY
  6. Remove the bolts and the coolant pump pulley.
    GFD304146Courtesy of FORD MOTOR COMPANY
  7. Remove the bolts and the CKP sensor.
    GFD304147Courtesy of FORD MOTOR COMPANY

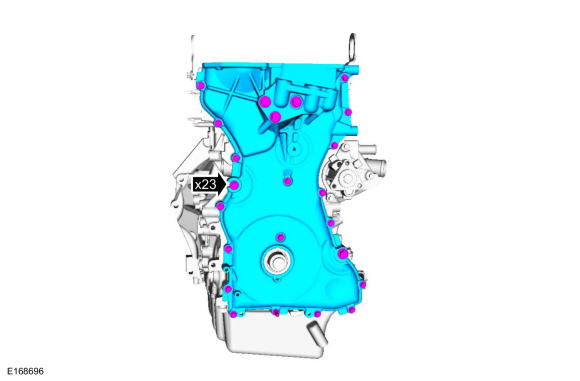

  8. Remove the bolts and the engine front cover.
GFD304148Courtesy of FORD MOTOR COMPANY
