Oil Pump: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the timing cover. Refer to: Timing Cover .

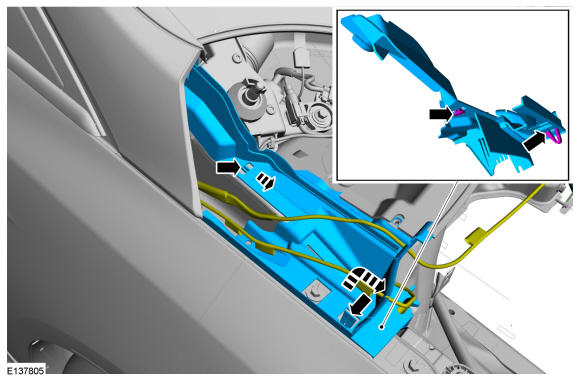

- Remove the upper dash panel reinforcement.
- Position aside the hoses and the wiring. Remove the upper dash panel reinforcement.

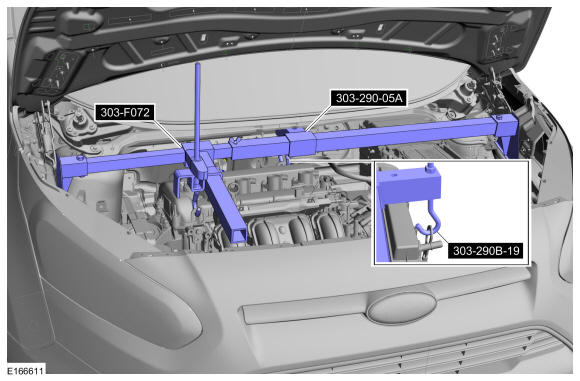

- Install the special tool to support the engine. Install Special Service Tool: 303-F072 Support Bar, Engine, 303-290-05A Adapter for 303-290A, 303-290B-19 Adapter for 303-290B.
- Using a floor jack and a wooden block, support the subframe. Remove the General Equipment: Trolley Jack. Remove the General Equipment: Wooden Block
- Disconnect the A/C electrical connector.
- Remove the nut and the stud.
Torque: 1: 18 lb.ft (25 Nm) 2: 71 lb.in (8 Nm)
- Remove the bolts and position aside the A/C compressor. Install the General Equipment: Cable Ties
Torque: 18 lb.ft (25 Nm)
-
NOTE: The oil drain plug with O-ring seal is to be reused unless damaged.NOTE: Be prepared to collect escaping fluid.
Drain the engine oil. Use the General Equipment: Oil Drain Equipment
Torque: 21 lb.ft (28 Nm)
- Remove and discard the engine oil filter. Use the General Equipment: Oil Drain Equipment
- Remove the engine bolt.
Torque: 35 lb.ft (48 Nm)
- Remove the transmission bolts.
Torque: 35 lb.ft (48 Nm)
- Remove the bolts and the oil pan.
- Remove the bolts and the oil pickup tube.
Torque: 89 lb.in (10 Nm)
- Remove and discard the oil pickup tube O-ring.
-
- Position out the spring.
- Remove the bolts and the oil pump chain tensioner.
Torque: 89 lb.in (10 Nm)

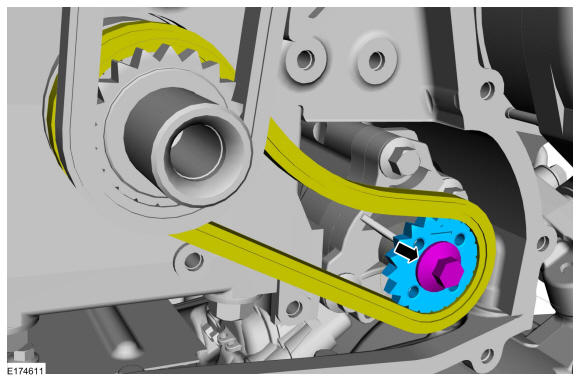

- Remove the bolt and the oil pump drive gear.
Torque: 18 lb.ft (25 Nm)
- Remove the bolts and the oil pump.
