Oil Pressure Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
If equipped.
1. Remove the retainers and the underbody shield reinforcement.
2. Remove the retainers and the underbody shield.
Courtesy of FORD MOTOR COMPANY

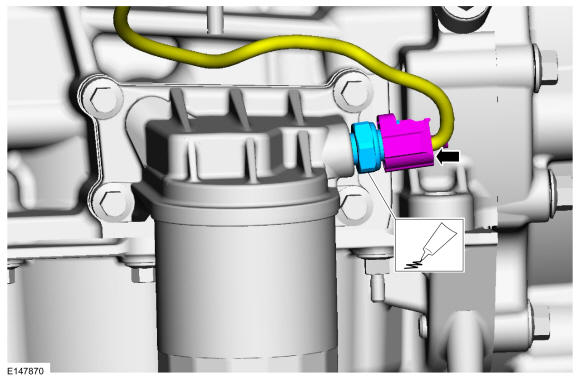

NOTE: If the oil pressure switch is to be reused, apply thread sealant.

Disconnect the electrical connector and remove the EOP switch.

Material: Motorcraft® Thread Sealant with PTFE / TA-24-B (WSK-M2G350-A2)

Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY
