Oil Pan: Installation

Clean all mating surfaces.
Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B
NOTE: The component must be installed within 10 minutes of applying the sealant.

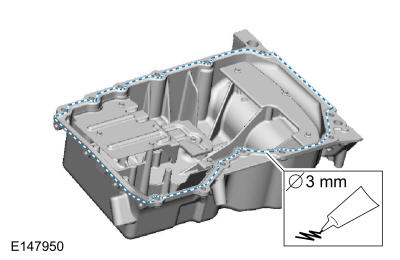

Apply a 3 mm (0.19 in) bead of silicone sealant.

Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the bolts finger tight at this stage.

Install the oil pan and the bolts finger tight.

Courtesy of FORD MOTOR COMPANY

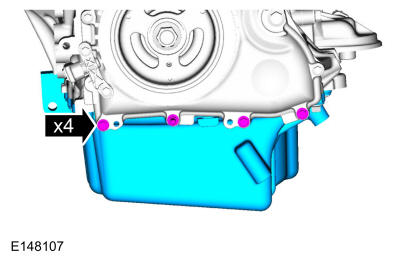

Install the engine front cover bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the oil pan bolts in sequence shown.
Torque: 177 lb.in (20 Nm)

Fig 1: Oil Pan Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the drain plug.
Torque: 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY

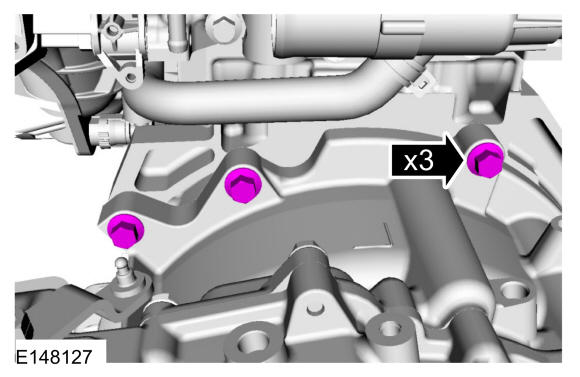

Alternate tightening the LH bellhousing-to-engine and RH engine-to-bellhousing lower bolts to draw the transmission and engine together.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

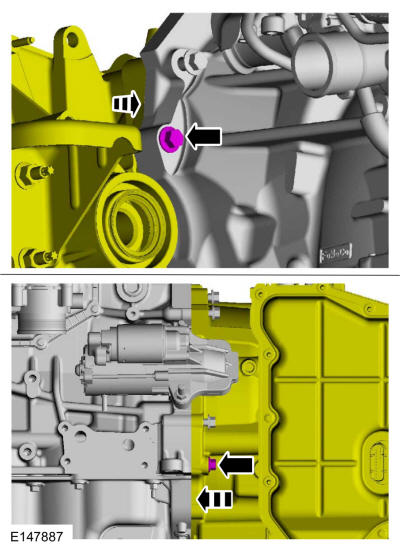

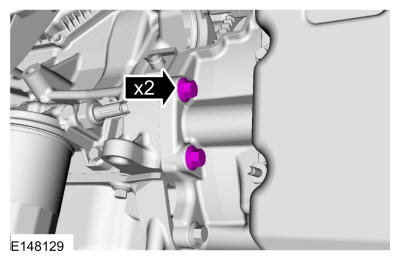

Tighten the bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

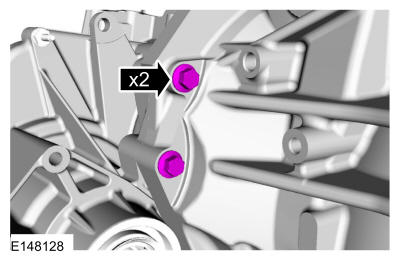

Install the bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Install the bolt.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that a new component is installed.

NOTE: Component(s) must be lubricated with clean engine oil.

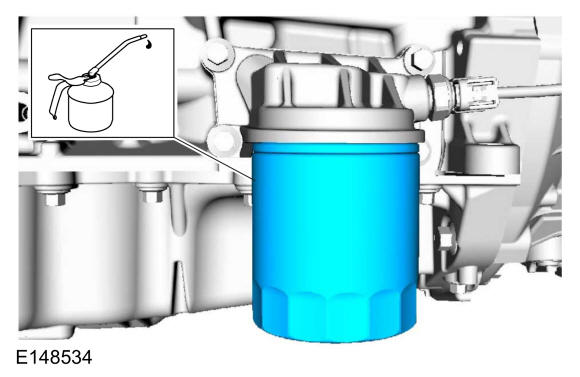

Install a new oil filter.

Torque: 124 lb.in (14 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new bolts are installed.

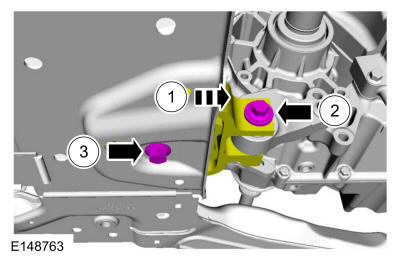

Position the bracket and install the bolts.

Torque: 92 lb.ft (125 Nm)

Courtesy of FORD MOTOR COMPANY

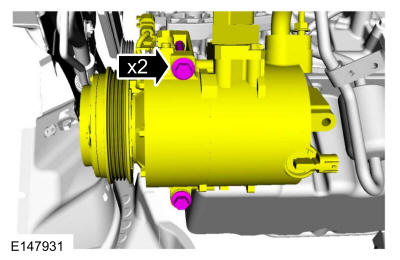

Position the A/C compressor and install the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

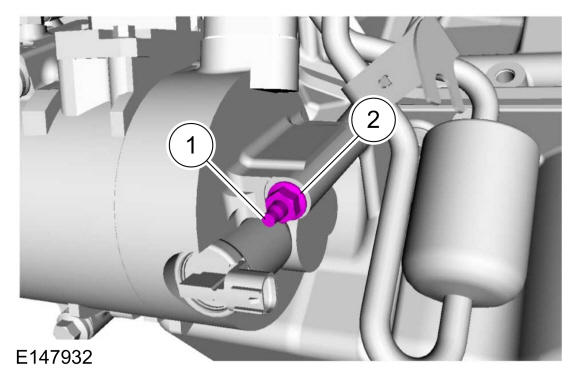

Install the A/C compressor stud and the nut.
Torque: Stud: 80 lb.in (9 Nm) Nut: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

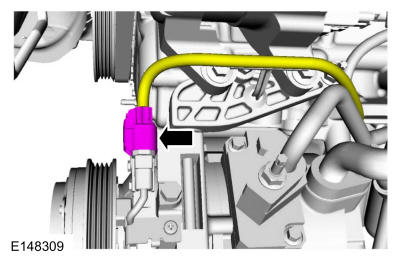

Connect the A/C compressor electrical connector.

Courtesy of FORD MOTOR COMPANY
Install the A/C compressor belt. Refer to: Air Conditioning (A/C) Compressor Belt .
Tighten the bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Tighten the bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Position the exhaust manifold heat shield and install the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Using the special tool, install the exhaust gas oxygen sensor. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

Courtesy of FORD MOTOR COMPANY
Connect the HO2S electrical connector and catalyst monitor sensor electrical connector. Connect the wire retainers.

Courtesy of FORD MOTOR COMPANY
NOTE: Only tighten the nuts and bolt finger tight at this stage.

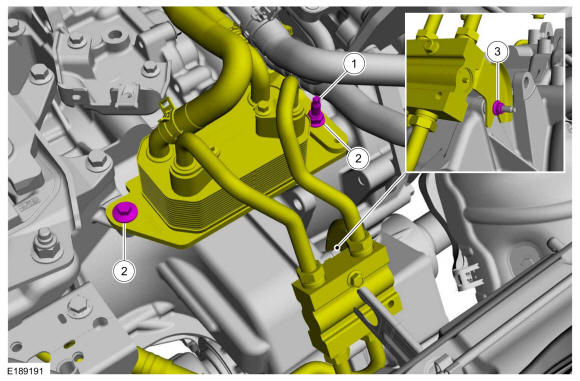

If equipped. Position the transmission fluid cooler. Install the stud, bolt and the nuts finger tight.

Torque: 1: 18 lb.ft (25 Nm) 2: 18 lb.ft (25 Nm) 3: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Install the battery tray. Refer to: Battery Tray - 2.5L Duratec (125kW/170PS) .
Install the cowl panel. Refer to: Cowl Panel .

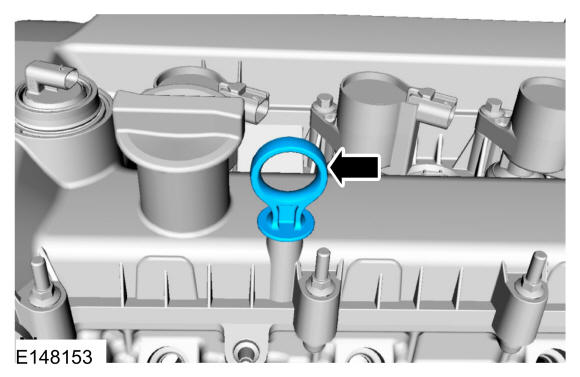

Install the oil level indicator.

Courtesy of FORD MOTOR COMPANY
Fill the engine with clean engine oil. Refer to: Specifications .
