Intake Manifold: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Jacking and Lifting - Overview .
  2. Refer to: Air Cleaner .
  3. Disconnect the tube from the intake manifold.
    GFD304084Courtesy of FORD MOTOR COMPANY
  4. Disconnect the fuel vapor tube. Refer to: Quick Release Coupling .
    GFD304085Courtesy of FORD MOTOR COMPANY

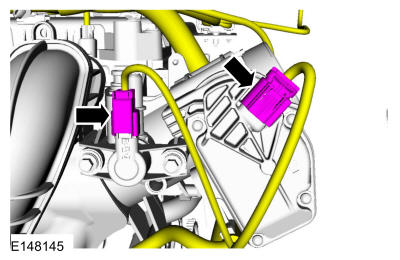

  5. Disconnect the electrical connectors.
    GFD304086Courtesy of FORD MOTOR COMPANY

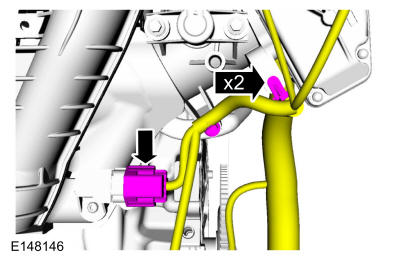

  6. Disconnect the electrical connector and wire retainers.
    GFD304087Courtesy of FORD MOTOR COMPANY

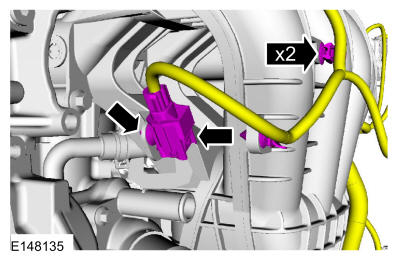

  7. Disconnect the electrical connector from the intake manifold. Disconnect the electrical connector and wire retainers.
    GFD304088Courtesy of FORD MOTOR COMPANY

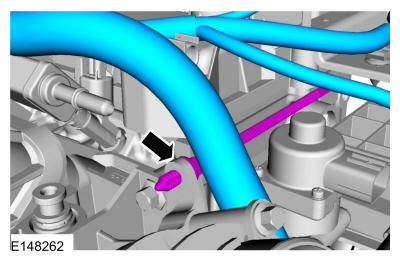

  8. Disconnect the harness retainer.
    GFD304089Courtesy of FORD MOTOR COMPANY

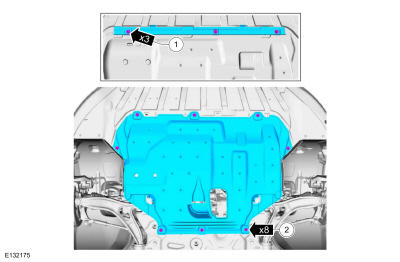

  9. If equipped, remove the screws and the splash shield.
    GFD304018Courtesy of FORD MOTOR COMPANY

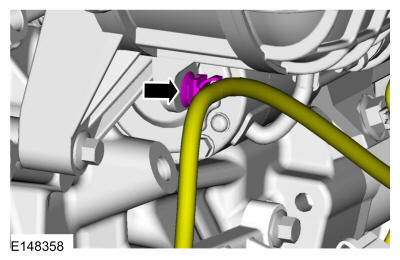

  10. Disconnect the wire retainer.
    GFD304090Courtesy of FORD MOTOR COMPANY

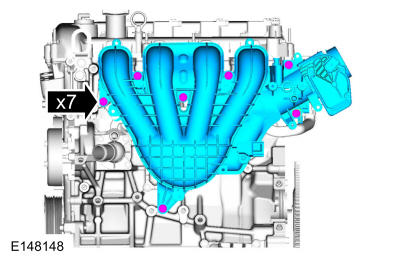

  11. Remove the bolts and position out the intake manifold.
    GFD304091Courtesy of FORD MOTOR COMPANY

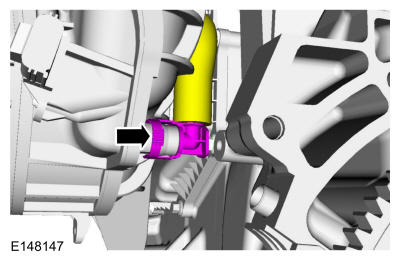

  12. Squeeze the 2 crankcase vent oil separator tube tabs and disconnect the tube from the intake manifold.
GFD304092Courtesy of FORD MOTOR COMPANY
