Intake Manifold: Installation
- To install, reverse the removal procedure.
-
NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

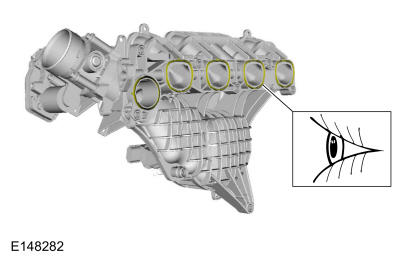

Visually inspect the intake manifold gaskets for nicks, cuts and abrasions. If these conditions are not present, the gaskets may be re-used.
-
NOTE: Install all the bolts finger tight before final tightening.

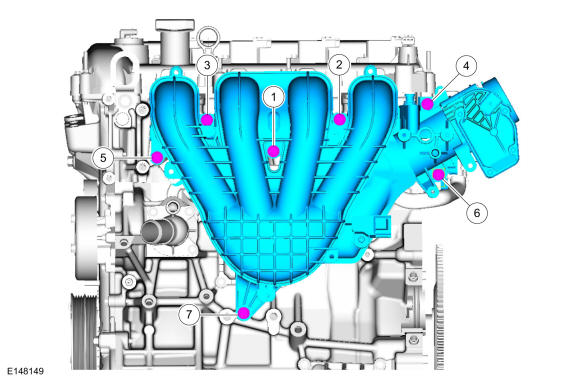

Position back the intake manifold and install the bolts. Tighten the bolts in the sequence shown.
Torque: 159 lb.in (18 Nm)
