Removal And Installation: Flexplate: Installation

  1. NOTE: Make sure that new components are installed.

    • Install the flexplate and the new bolts. Tighten in sequence shown in 3 stages.

      Torque: Stage 1: 37 lb.ft (50 Nm) Stage 2: 59 lb.ft (80 Nm) Stage 3: 83 lb.ft (112 Nm)

    • Remove Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.

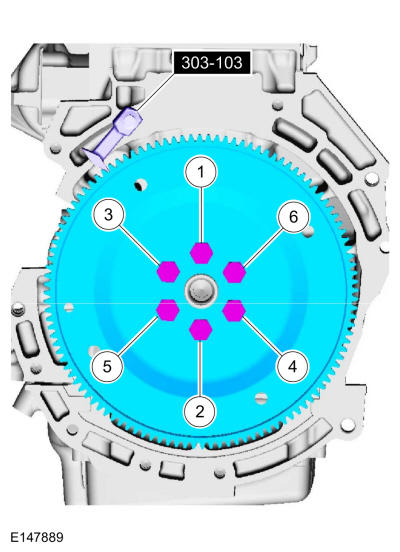

    Fig 1: Flexplate Tightening Sequence
    GFD304083Courtesy of FORD MOTOR COMPANY
  2. Install the transmission. Refer to: Transmission .
