Engine Mount: Installation

Tighten the engine mount studs.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
1. Install the engine mount and the nuts.
  Torque: 59 lb.ft (80 Nm)

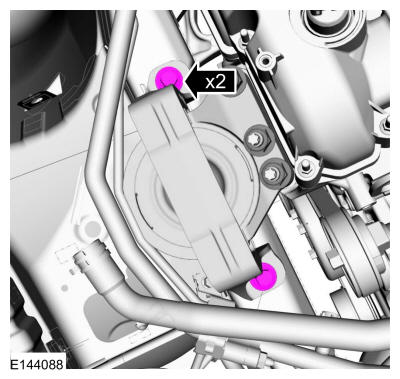

2. NOTE: Only tighten the bolts finger tight at this stage.

  Install the engine mount bolts finger tight.
Courtesy of FORD MOTOR COMPANY
Tighten the engine mount bolts.
Torque: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY

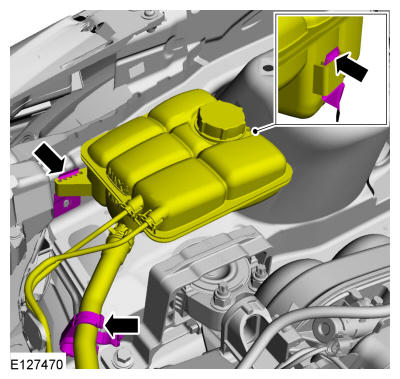

Position back the degas bottle, connect the coolant hose routing clip.

Courtesy of FORD MOTOR COMPANY

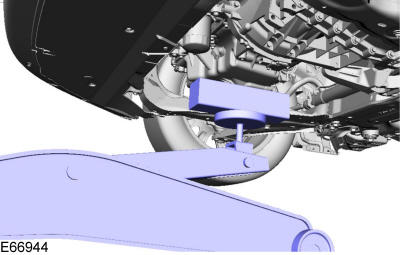

Remove the floor jack and wooden block. Use the General Equipment: Trolley Jack. Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY
If equipped.

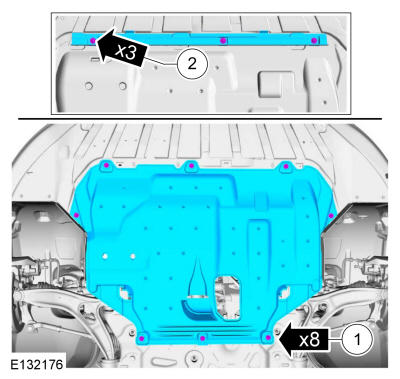

1. Install the underbody shield and the retainers.
2. Install the underbody shield reinforcement and the retainers.

Courtesy of FORD MOTOR COMPANY
