Engine - 2.5L DURATEC (125KW/170PS): Disassembly: Engine

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	205-153 (T80T-4000-W) Handle
Courtesy of FORD MOTOR COMPANY	303-1247 VCT Spark Plug Tube Seal Remover and Installer TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1416 Tool, Crank Damper Holding TKIT-2008ET-FLM
Courtesy of FORD MOTOR COMPANY	303-409 (T92C-6700-CH) Remover, Crankshaft Seal TKIT-1992-FH/FMH/FLMH TKIT-1993-LMH/MH
Courtesy of FORD MOTOR COMPANY	303-465 Tool, Camshaft Align Timing TKIT-1994-LMH/MH2 TKIT-1994-FH/FMH/FLMH
Courtesy of FORD MOTOR COMPANY	303-507 Timing Peg, Crankshaft TDC TKIT-2001N-FLM TKIT-2001N-ROW

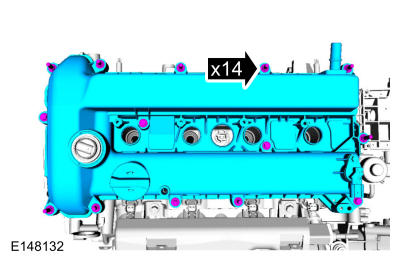

1. Loosen the fasteners and remove the valve cover.

   Courtesy of FORD MOTOR COMPANY

2. Using the special tools, remove the VCT oil control solenoid seals. Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer, 205-153 (T80T-4000-W) Handle.

   Courtesy of FORD MOTOR COMPANY

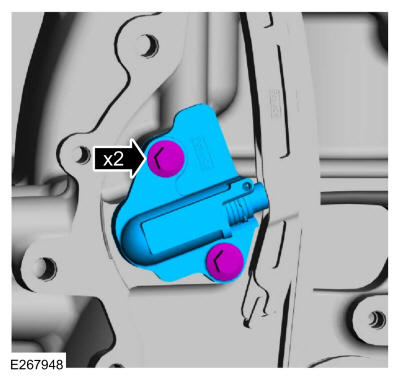

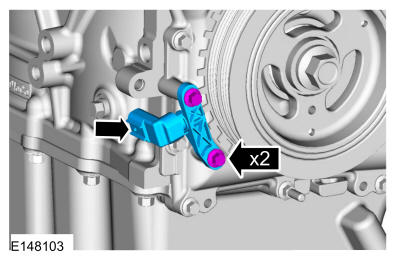

3. Remove the bolts and the CKP sensor.

   Courtesy of FORD MOTOR COMPANY

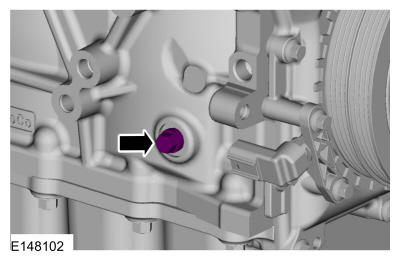

4. Remove the engine plug bolt.

   Courtesy of FORD MOTOR COMPANY

5. NOTE: Failure to position the No. 1 piston at TDC can result in damage to the engine. Turn the engine in the normal direction of rotation only.

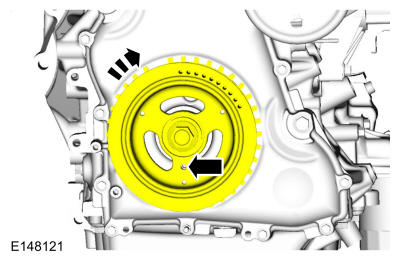

   Using the crankshaft pulley bolt, turn the crankshaft clockwise to position the No. 1 piston at TDC. The hole in the crankshaft pulley should be in the 6 o'clock position.

   Courtesy of FORD MOTOR COMPANY

6. NOTE: Only rotate the crankshaft clockwise.

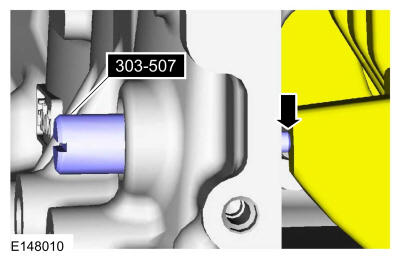

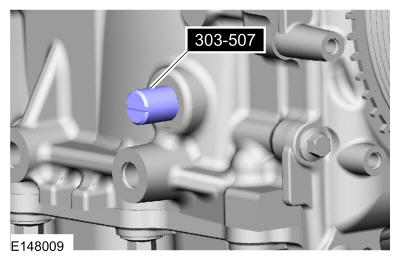

   1. Install the special tool. Install Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
   2. Rotate the crankshaft slowly until the crankshaft stops.

   Courtesy of FORD MOTOR COMPANY

7. NOTE: The Camshaft Alignment Plate is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.
   NOTE: The camshaft timing slots are offset. If the Camshaft Alignment Plate cannot be installed, rotate the crankshaft one complete revolution clockwise to correctly position the camshafts.

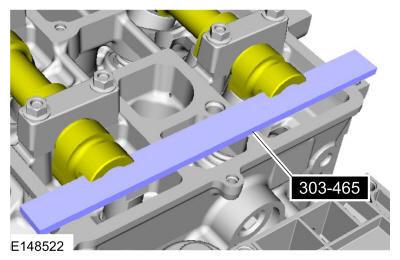

   Install the special tool. Install Special Service Tool: 303-465 Tool, Camshaft Align Timing.

   Courtesy of FORD MOTOR COMPANY

8. NOTE: The crankshaft must remain in the TDC position during removal of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the Crankshaft Damper Holding Tool and the bolt should be removed using an air impact wrench (1/2-in drive minimum).
   NOTE: If equipped, the crankshaft sprocket diamond washer may come off with the crankshaft pulley.

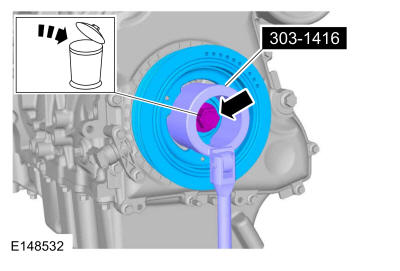

   • Using the special tool, remove the bolt and the crankshaft pulley. Use Special Service Tool: 303-1416 Tool, Crank Damper Holding.
   • Discard the bolt and washer.

   Courtesy of FORD MOTOR COMPANY

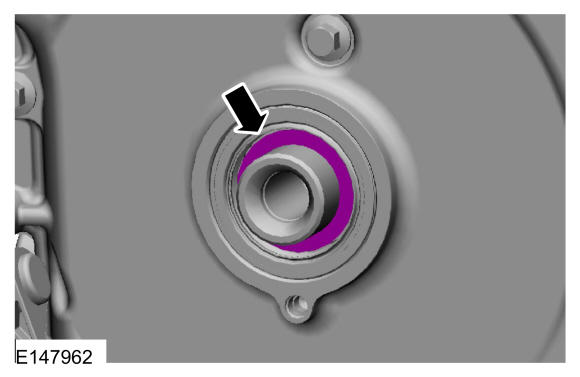

9. NOTE: Early build engines are equipped with a diamond washer on each side of the crankshaft sprocket. Late build engines have a laser etched crankshaft sprocket and do NOT require diamond washers. If an early build engine requires crankshaft sprocket replacement, discard the diamond washers and the sprocket and install a new laser etched sprocket (service part). Diamond washers should NEVER be installed with the laser etched sprocket.

   If equipped, remove the diamond washer.

   Courtesy of FORD MOTOR COMPANY

10. NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.

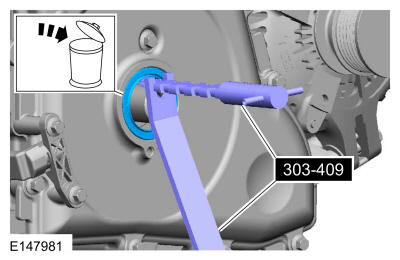

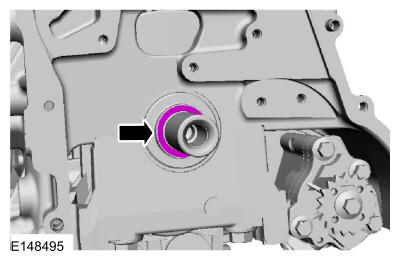

    Using the special tool, remove the crankshaft front seal and discard. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.

    Courtesy of FORD MOTOR COMPANY

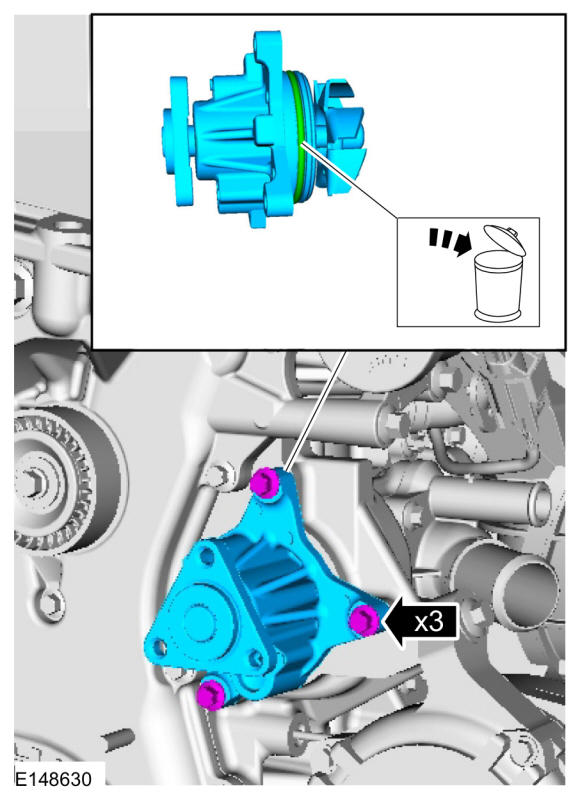

11. Remove the bolts and the coolant pump. Discard the O-ring seal.

    Courtesy of FORD MOTOR COMPANY

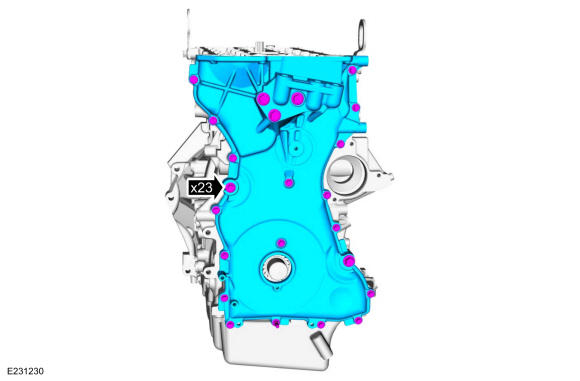

12. Remove the bolts and the engine front cover.

    Courtesy of FORD MOTOR COMPANY

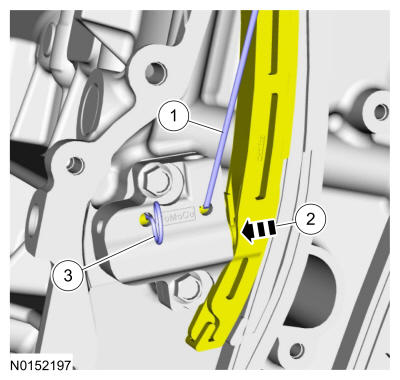

13. NOTE: If equipped with cast iron timing chain tensioner.
    1. Using a small pick, release and hold the ratchet mechanism.
    2. While holding the ratchet mechanism in the released position, compress the tensioner by pushing the timing chain arm toward the tensioner.
    3. Insert a holding pin into the hole to retain the tensioner.

    Courtesy of FORD MOTOR COMPANY

14. NOTE: If it is necessary to install a new timing chain tensioner, a cast iron tensioner is to be replaced with an aluminum tensioner (6K254). The existing bolts must be discarded and replaced with new bolts (6K282).
    NOTE: If equipped with cast iron timing chain tensioner.

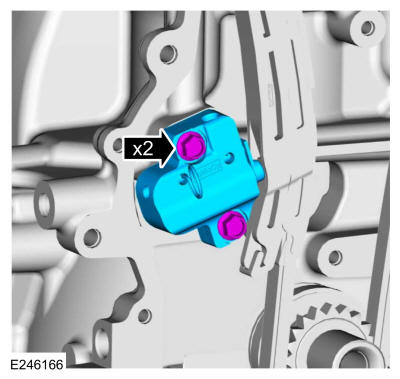

    Remove the bolts and the timing chain tensioner.

    Courtesy of FORD MOTOR COMPANY

15. NOTE: If equipped with aluminum timing chain tensioner.

    Remove the bolts and the timing chain tensioner.

    Courtesy of FORD MOTOR COMPANY

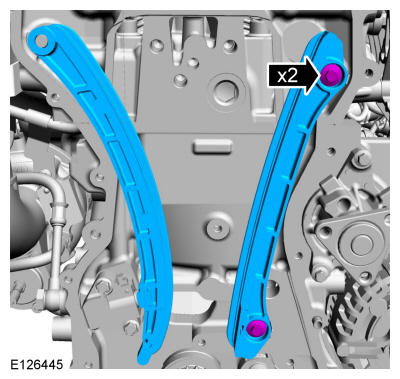

16. Remove the bolts, timing chain guide and tensioner arm.

    Courtesy of FORD MOTOR COMPANY

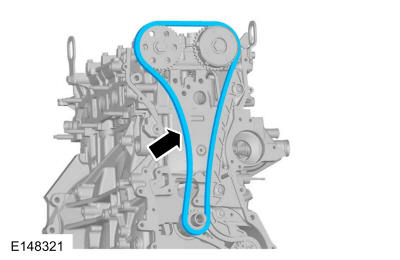

17. Remove the timing chain.

    Courtesy of FORD MOTOR COMPANY

18. NOTE: The Camshaft Alignment Plate is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.
    NOTE: Use the flats on the camshaft to prevent camshaft rotation.

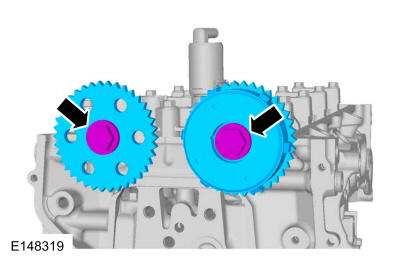

    Remove the bolts and the camshaft sprockets.

    Courtesy of FORD MOTOR COMPANY

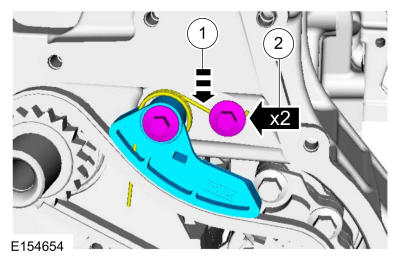

19. 1. Release the tension on the tensioner spring.
    2. Remove the shoulder bolts and the tensioner.

    Courtesy of FORD MOTOR COMPANY

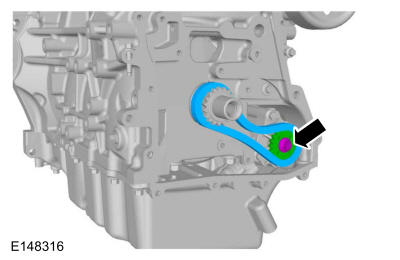

20. • Remove the bolt and oil pump sprocket.
    • Remove the timing chain.

    Courtesy of FORD MOTOR COMPANY

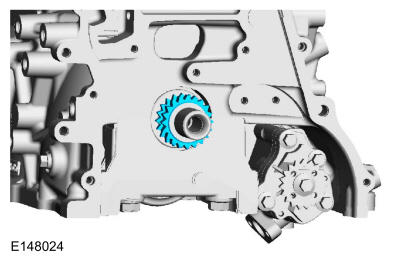

21. Remove the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

22. NOTE: Early build engines are equipped with a diamond washer on each side of the crankshaft sprocket. Late build engines have a laser etched crankshaft sprocket and do NOT require diamond washers. If an early build engine requires crankshaft sprocket replacement, discard the diamond washers and the sprocket and install a new laser etched sprocket (service part). Diamond washers should NEVER be installed with the laser etched sprocket.

    If equipped, remove the diamond washer.

    Courtesy of FORD MOTOR COMPANY

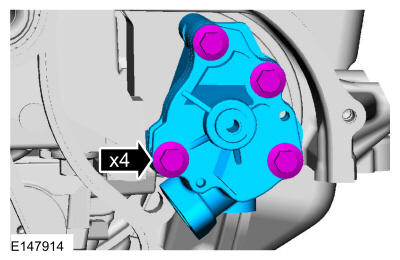

23. Remove the bolt and the VCT oil control solenoid.

    Courtesy of FORD MOTOR COMPANY

24. NOTE: Failure to follow the camshaft loosening procedure can result in damage to the camshafts.
    NOTE: Mark the location and orientation of each camshaft bearing cap.
    NOTE: Mark the location of the camshafts prior to removal.

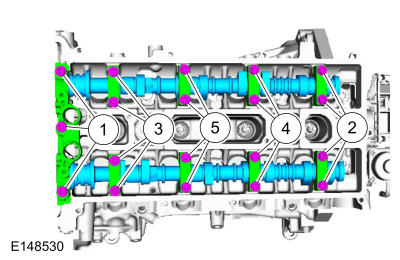

    Loosen the camshaft bearing caps in sequence 2 turns at a time until all tension is released from the camshaft bearing caps and remove the camshaft bearing caps and camshafts. Remove Special Service Tool: 303-465 Tool, Camshaft Align Timing.

    Courtesy of FORD MOTOR COMPANY

25. NOTE: If the camshafts and valve tappets are to be reused, mark the location of the valve tappets to make sure they are assembled in their original positions.
    NOTE: The number on the valve tappets only reflects the digits that follow the decimal. For example, a tappet with the number 0.650 has the thickness of 3.650 mm.

    Remove the valve tappets.

    Courtesy of FORD MOTOR COMPANY

26. Inspect the valve tappets. Install new parts as necessary.

    Courtesy of FORD MOTOR COMPANY

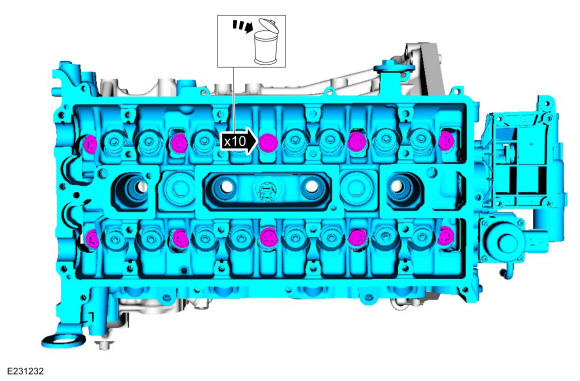

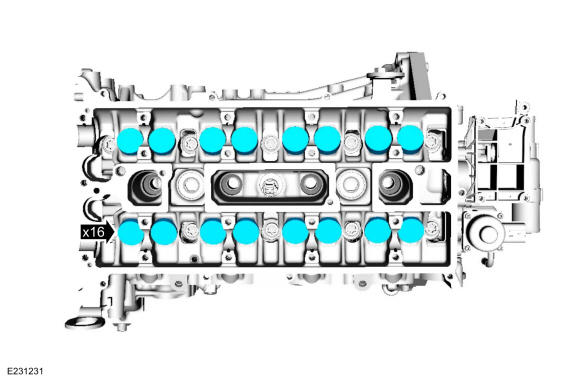

27. • Remove the bolts and the cylinder head.
    • Discard the bolts.

    Courtesy of FORD MOTOR COMPANY

28. Check the cylinder head distortion. Refer to: Cylinder Head Distortion .
29. Remove and discard the cylinder head gasket.

    Courtesy of FORD MOTOR COMPANY

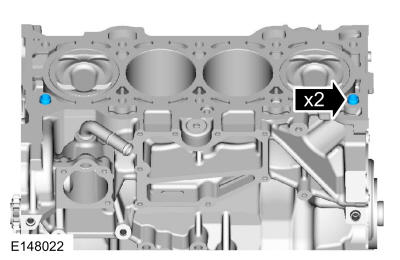

30. Remove the dowels.

    Courtesy of FORD MOTOR COMPANY

31. Check the cylinder block distortion. Refer to: Cylinder Block Distortion .

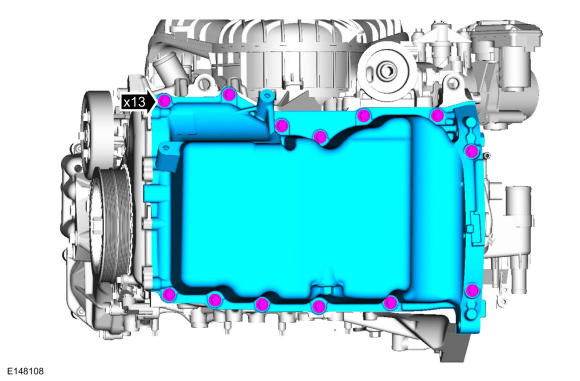

32. Remove the bolts and the oil pan.

    Courtesy of FORD MOTOR COMPANY

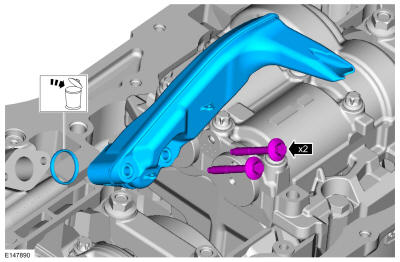

33. • Remove the bolts and the oil pickup tube.
    • Discard the O-ring seal.

    Courtesy of FORD MOTOR COMPANY

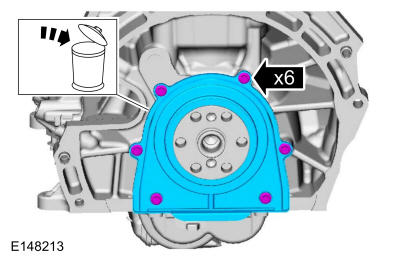

34. Remove the bolts and the crankshaft rear seal. Discard the crankshaft rear seal.

    Courtesy of FORD MOTOR COMPANY

35. Remove the bolts and the oil pump.

    Courtesy of FORD MOTOR COMPANY

36. Make sure the crankshaft TDC timing peg is still installed and the engine is still at TDC. Rotate the crankshaft slowly clockwise until the crankshaft balance weight is up against the crankshaft TDC timing peg. Install Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

    Courtesy of FORD MOTOR COMPANY

37. NOTE: Note the position of the components before removal.

    Index-mark the balance shaft assembly.

    Courtesy of FORD MOTOR COMPANY

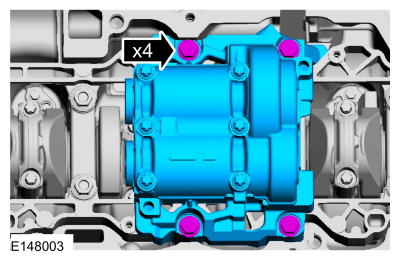

38. Remove the bolts and the balance shaft assembly.

    Courtesy of FORD MOTOR COMPANY

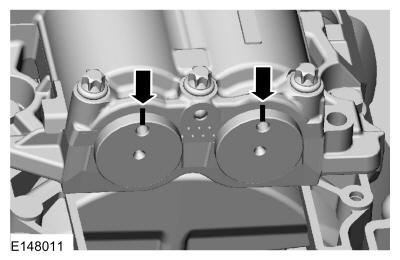

39. Remove the special tool. Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

    Courtesy of FORD MOTOR COMPANY

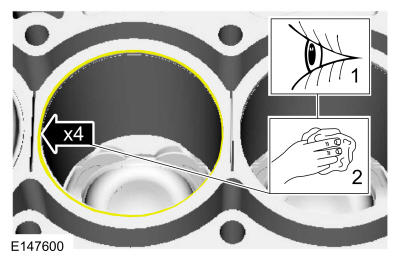

40. 1. Visual check.
    2. NOTE: Remove the carbon buildup, do not scratch the cylinder wall. Remove all debris from the cylinder.

       Clean the specified component with the specified material.

    Courtesy of FORD MOTOR COMPANY

41. NOTE: Clearly mark the connecting rods, connecting rod caps and connecting rod bearings in numerical order for correct orientation for reassembly.

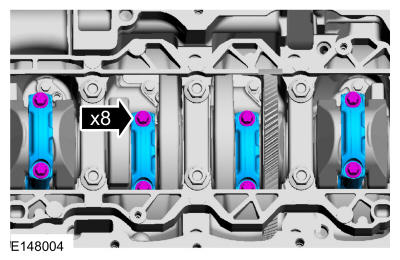

    Remove the bolts and the connecting rod caps.

    Courtesy of FORD MOTOR COMPANY

42. NOTE: Do not scratch the cylinder walls or crankshaft journals with the connecting rod.

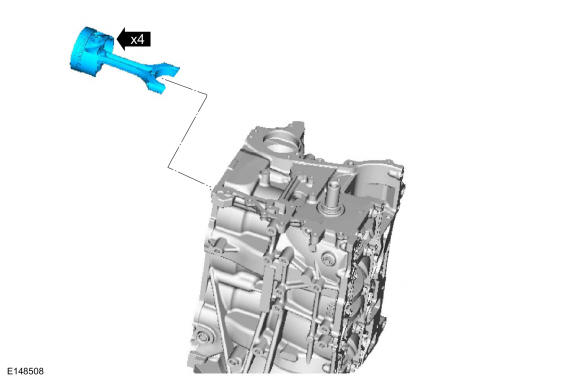

    Remove the pistons.

    Courtesy of FORD MOTOR COMPANY

43. NOTE: Mark the position of the parts, so they can be installed in their original positions.

    Remove the connecting rod bearings.

    Courtesy of FORD MOTOR COMPANY

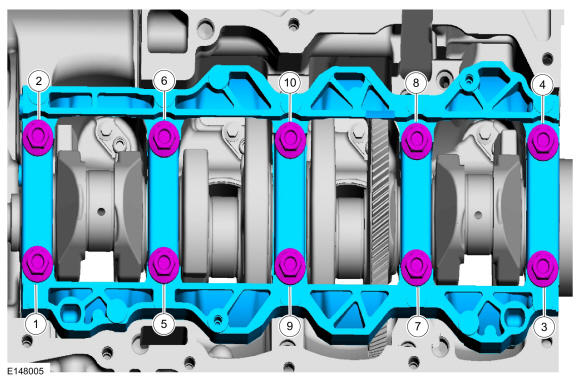

44. • Remove the bolts in sequence shown.
    • Remove the main bearing beam.
    Fig 1: Main Bearing Beam Loosening Sequence

    Courtesy of FORD MOTOR COMPANY

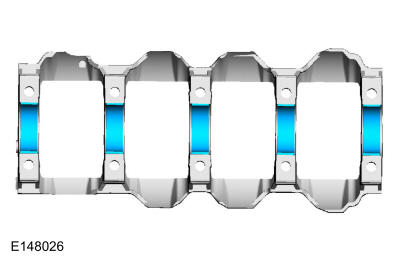

45. NOTE: If the main bearings are being reused, mark them in order for correct orientation and reassembly.

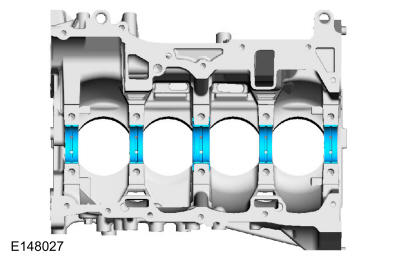

    Remove the lower main bearing beam bearings.

    Courtesy of FORD MOTOR COMPANY

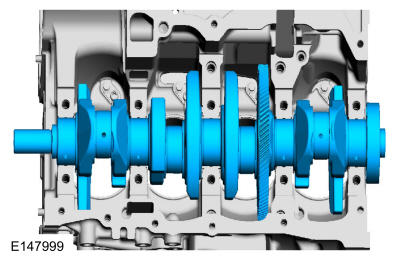

46. Remove the crankshaft.

    Courtesy of FORD MOTOR COMPANY

47. NOTE: If the main bearings are being reused, mark them in order for correct orientation and reassembly.
    NOTE: The center bulkhead has the thrust bearing.

    Remove the upper crankshaft main bearings.

    Courtesy of FORD MOTOR COMPANY

48. NOTE: If the oil squirters are being reused, mark them in order for correct location during reassembly.

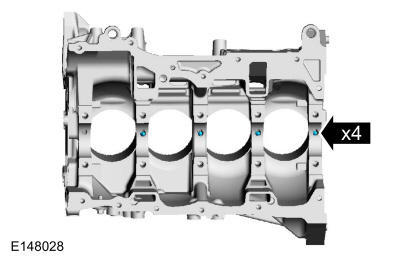

    Remove the oil squirters.

    Courtesy of FORD MOTOR COMPANY

49. Inspect the piston. Refer to: Piston Inspection .
50. Inspect the cylinder bore taper. Refer to: Cylinder Bore Taper .
