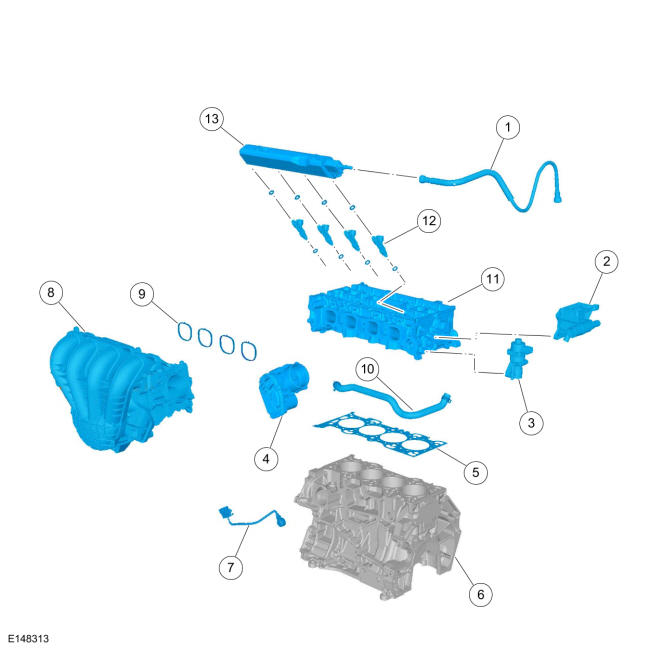

Exploded View Of Intake Manifold
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Fuel supply tube |
| 2 | - | Coolant outlet |
| 3 | - | EGR valve |
| 4 | - | Electronic throttle body |
| 5 | - | Cylinder head gasket |
| 6 | - | Cylinder block |
| 7 | - | Knock Sensor (KS) |
| 8 | - | Intake manifold |
| 9 | - | Intake manifold gasket |
| 10 | - | Coolant hose |
| 11 | - | Cylinder head |
| 12 | - | Fuel injector (4 required) |
| 13 | - | Fuel rail |
