Radiator Upper Mounting Repair

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

Repair

1. Remove the radiator. Refer to: Radiator .

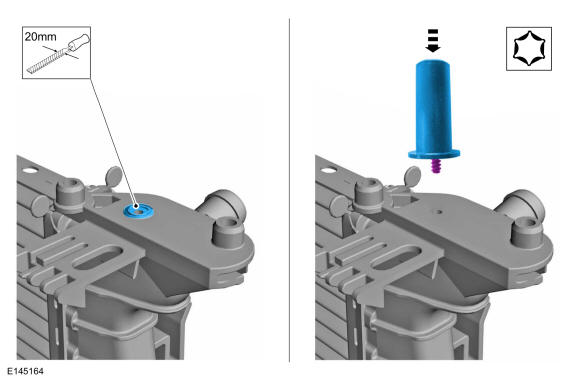

2. 1. Using a flat file, thoroughly file the radiator upper mounting surface. Use the General Equipment: Flat File
   2. Tighten the radiator upper mounting.

      Torque: 53 lb.in (6 Nm)

   Courtesy of FORD MOTOR COMPANY

3. Install the radiator. Refer to: Radiator .
