Turn Signal/Stop/Hazard Lamps

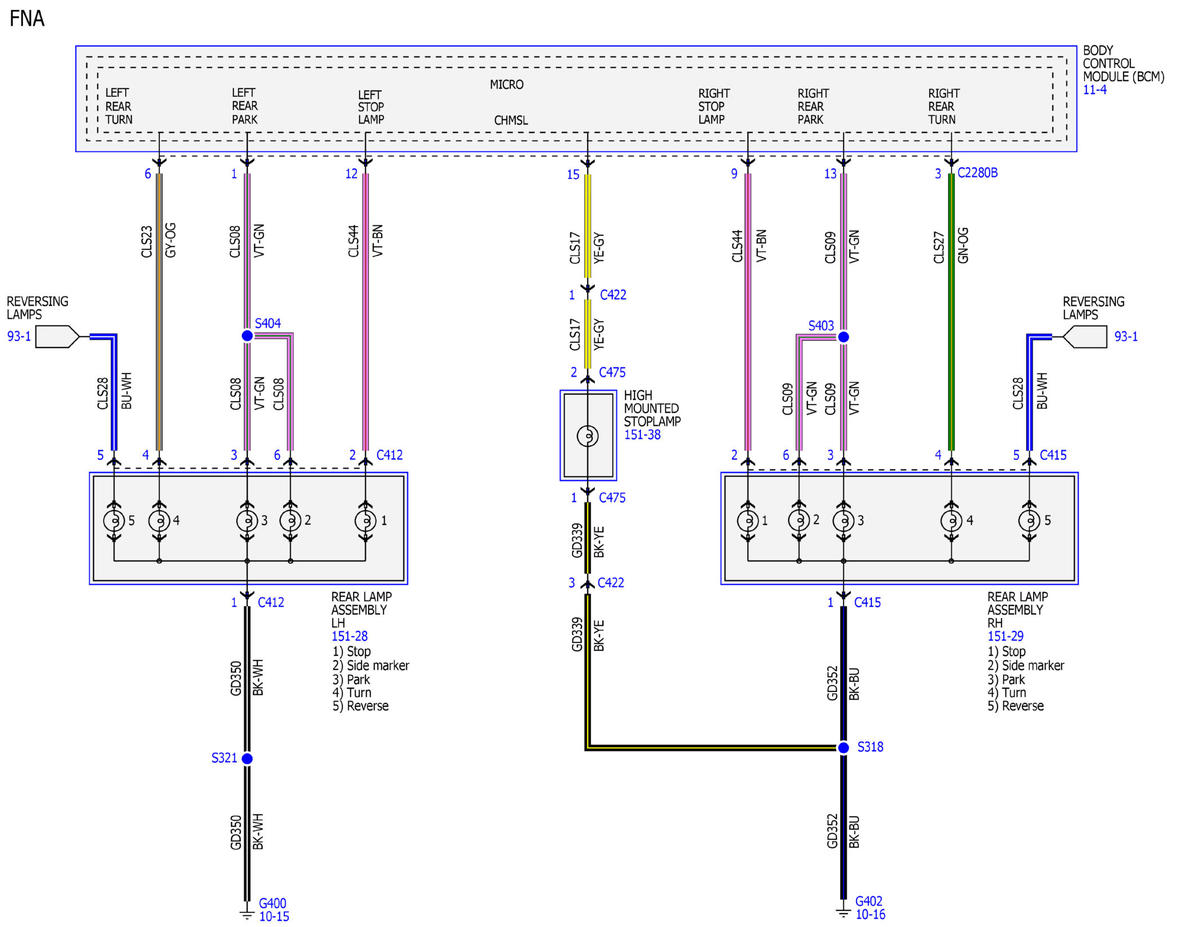

Fig 1: Turn Signal/Stop/Hazard Lamps Wiring Diagram (1 of 7)
GFDWR19859Courtesy of FORD MOTOR COMPANY

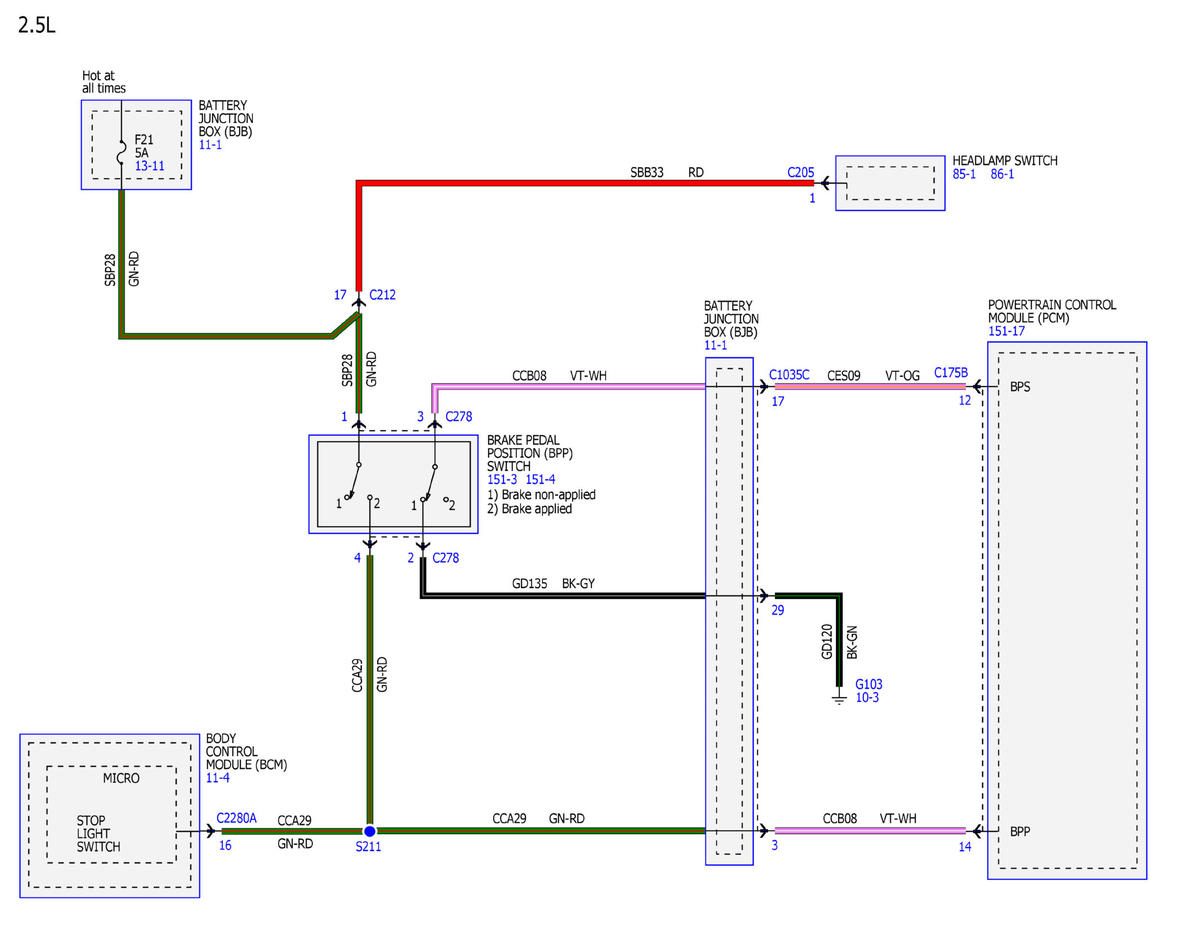

Fig 2: Turn Signal/Stop/Hazard Lamps Wiring Diagram (2 of 7)
GFDWR19860Courtesy of FORD MOTOR COMPANY

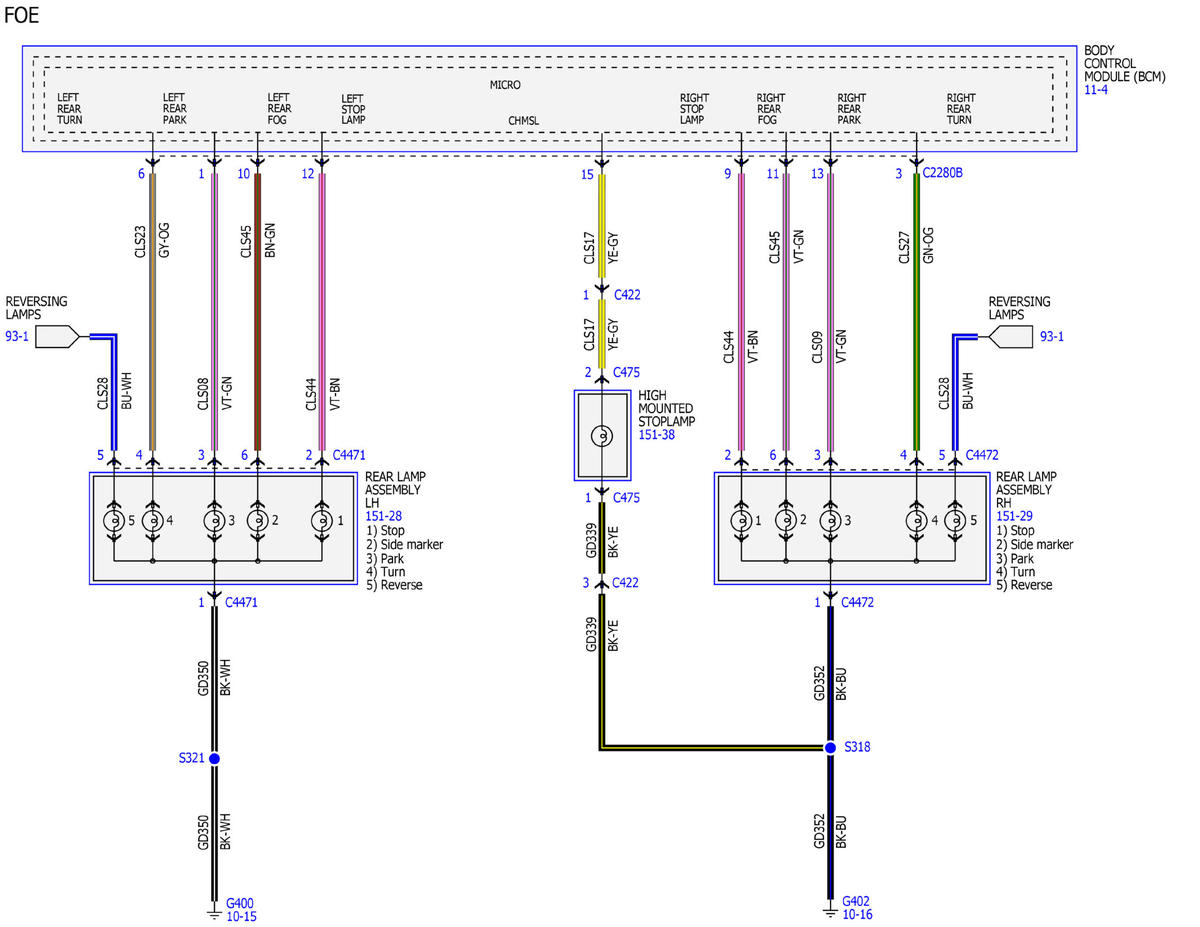

Fig 3: Turn Signal/Stop/Hazard Lamps Wiring Diagram (3 of 7)
GFDWR19861Courtesy of FORD MOTOR COMPANY

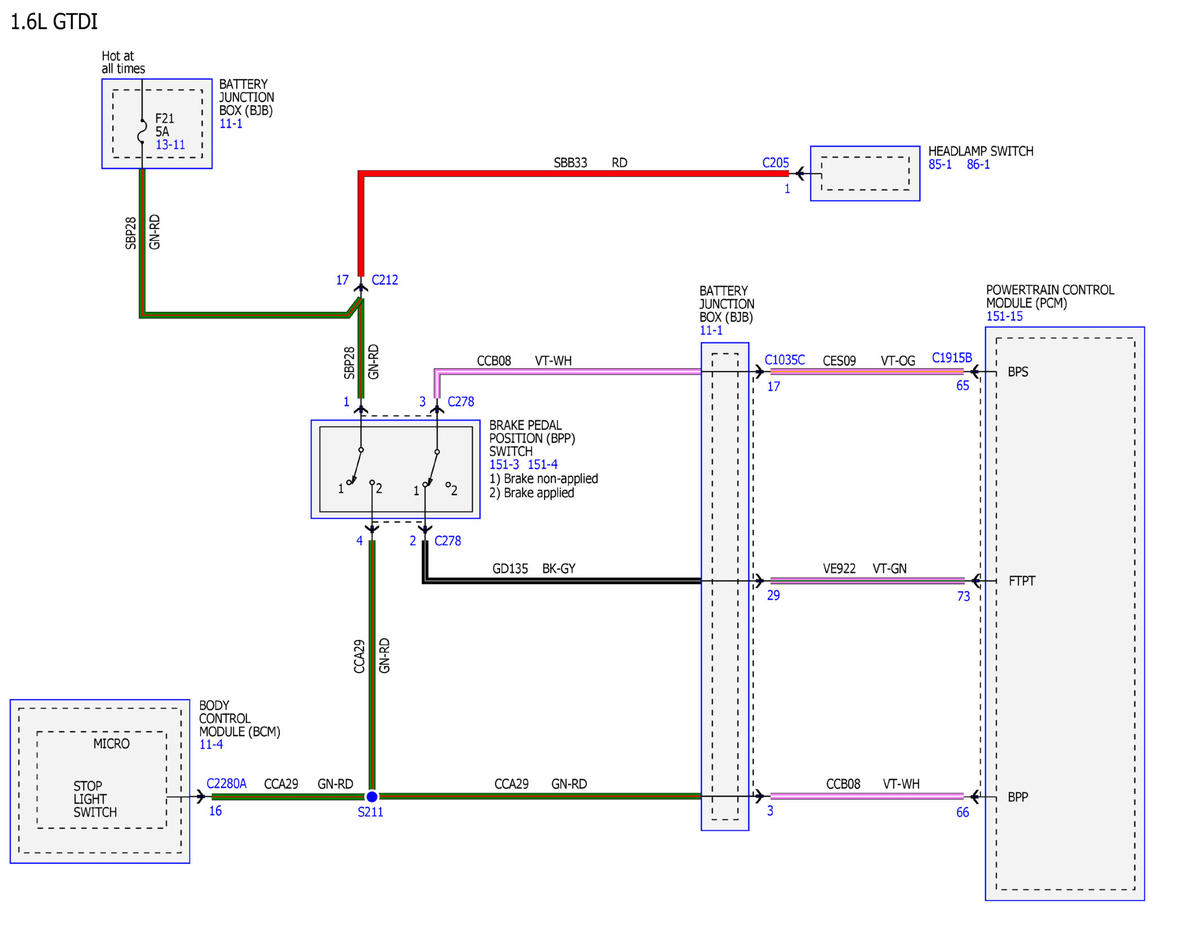

Fig 4: Turn Signal/Stop/Hazard Lamps Wiring Diagram (4 of 7)
GFDWR19862Courtesy of FORD MOTOR COMPANY

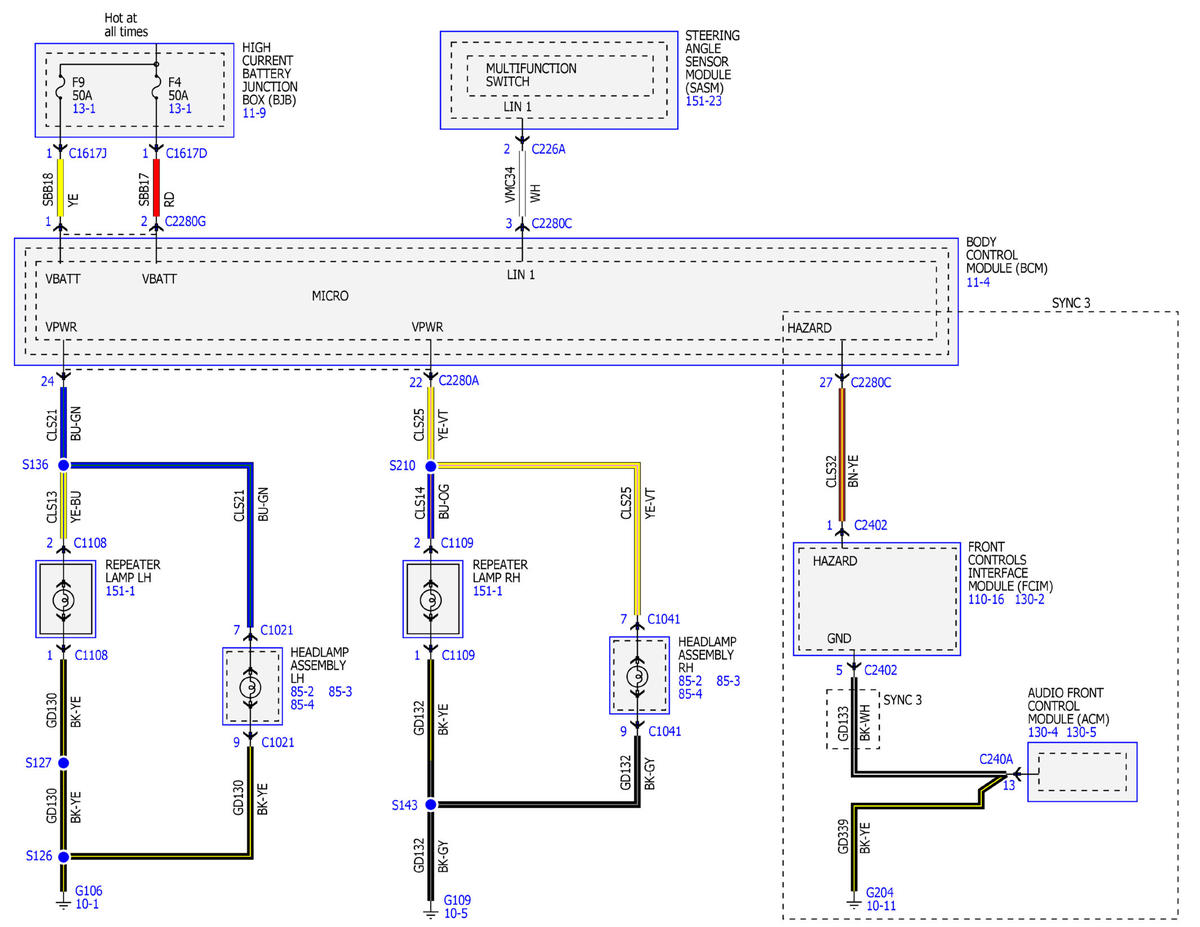

Fig 5: Turn Signal/Stop/Hazard Lamps Wiring Diagram (5 of 7)
GFDWR19863Courtesy of FORD MOTOR COMPANY

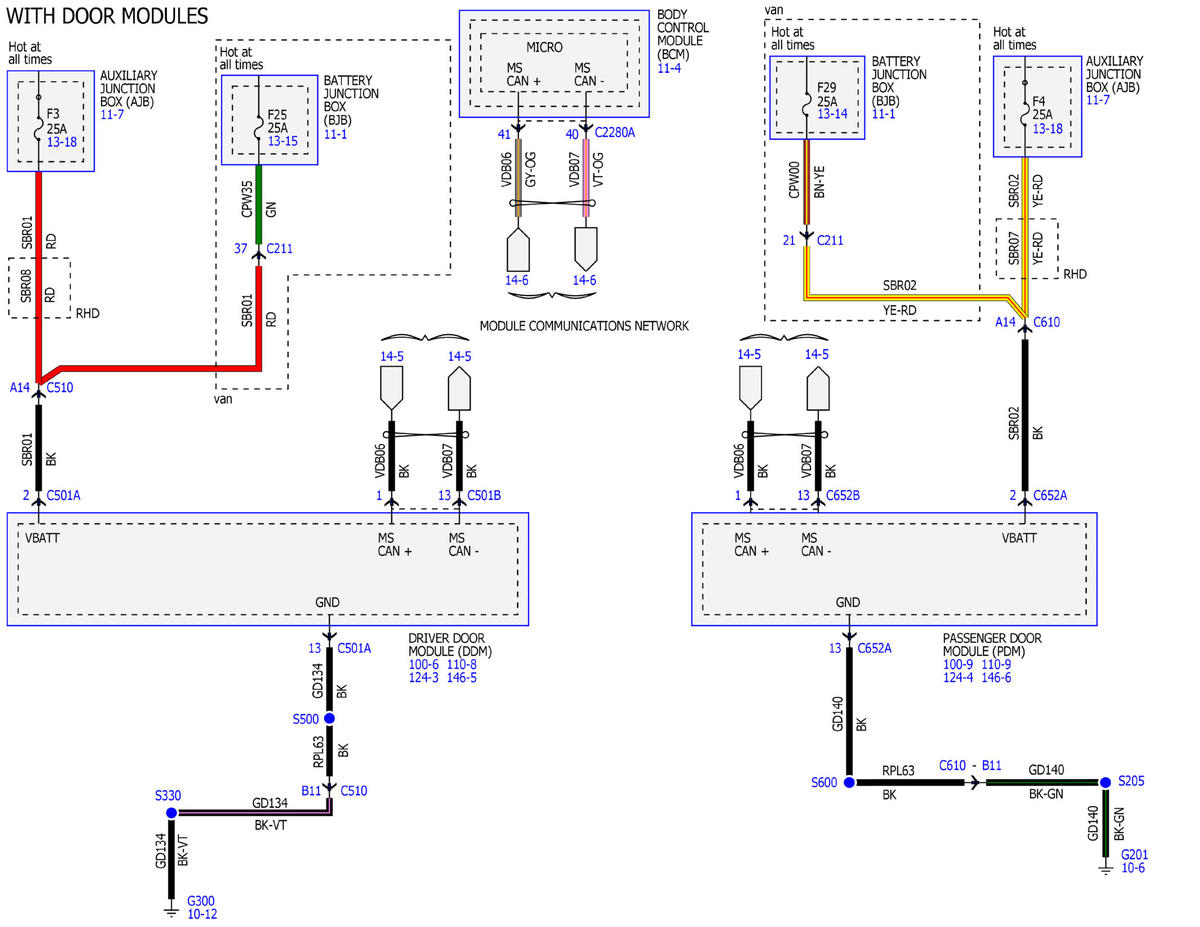

Fig 6: Turn Signal/Stop/Hazard Lamps Wiring Diagram (6 of 7)
GFDWR19864Courtesy of FORD MOTOR COMPANY

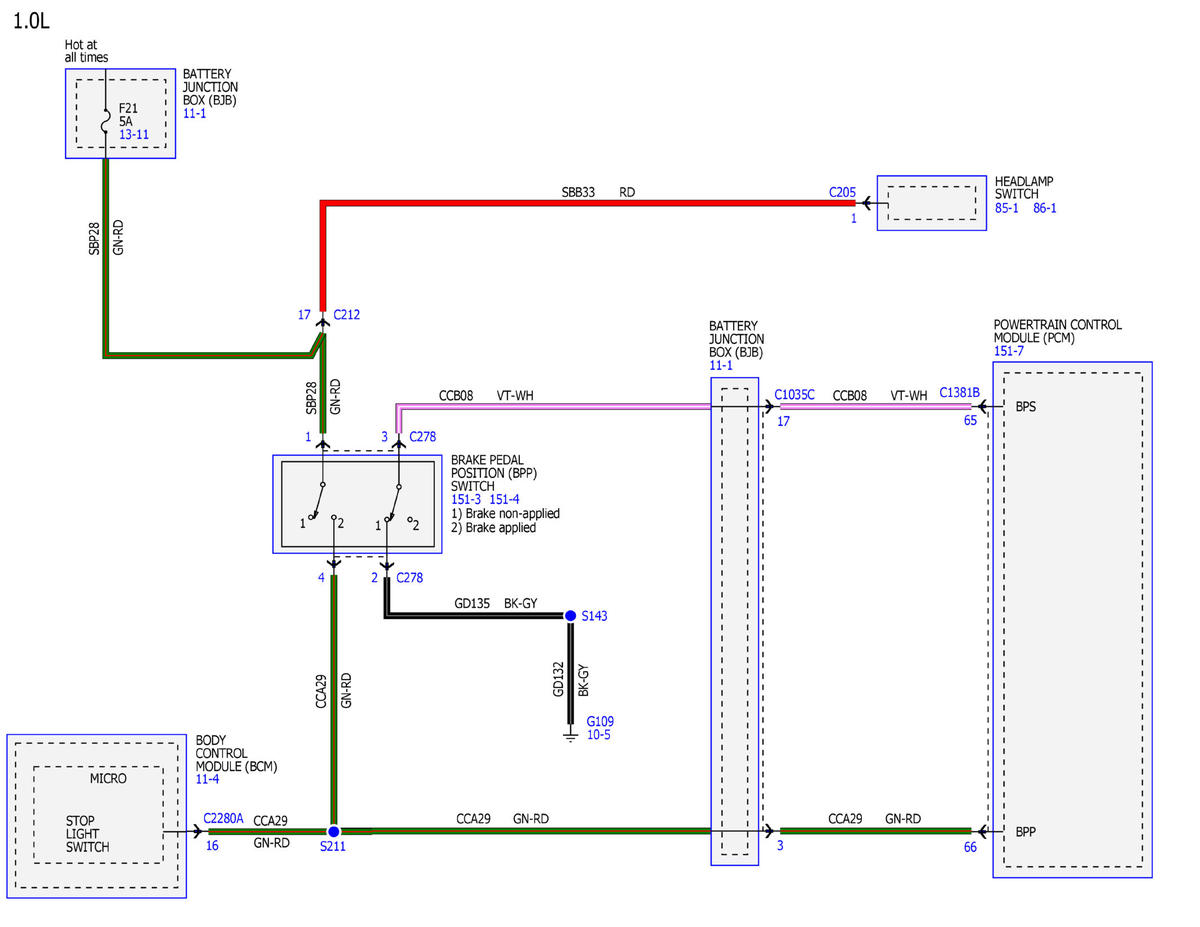

Fig 7: Turn Signal/Stop/Hazard Lamps Wiring Diagram (7 of 7)
GFDWR19865Courtesy of FORD MOTOR COMPANY
