Transmission Controls - 6F35

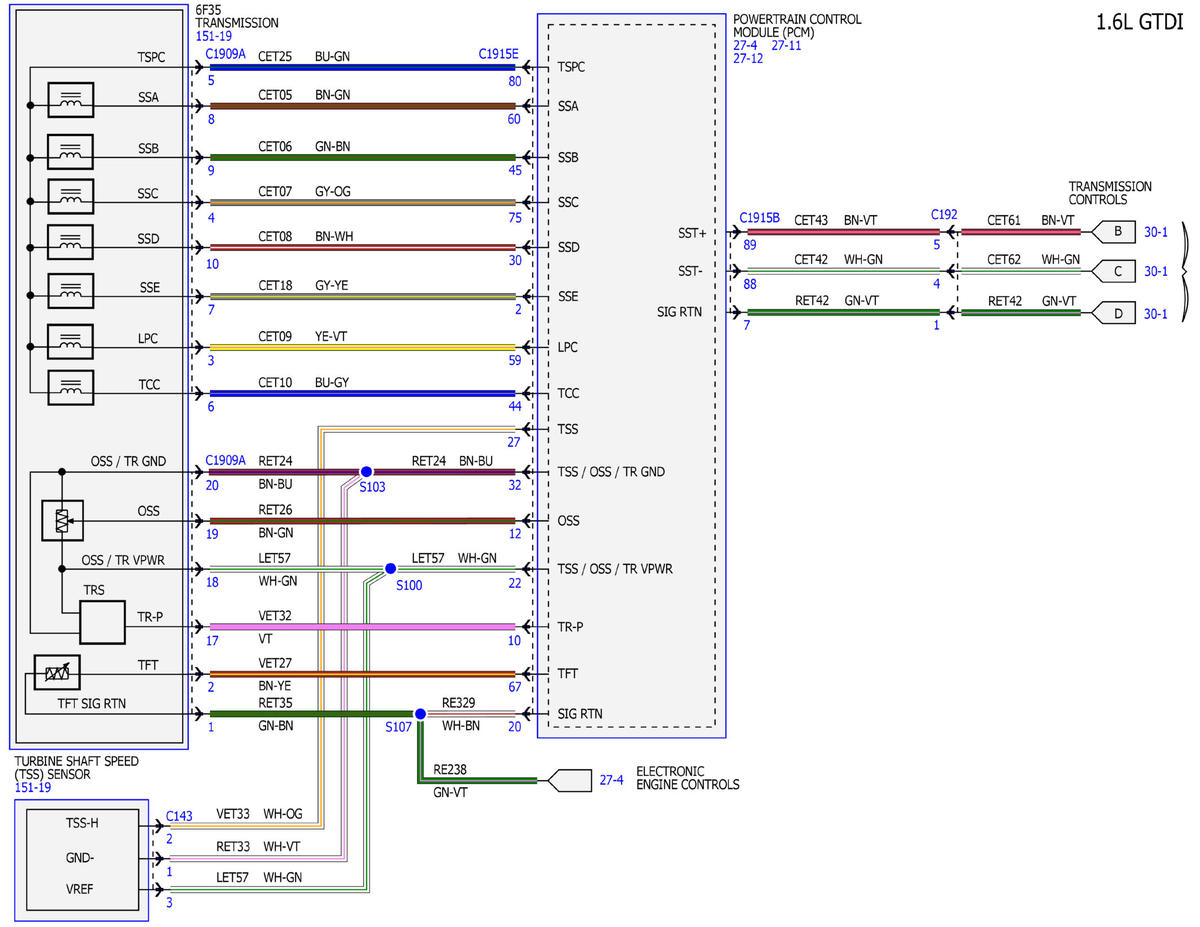

Fig 1: Transmission Controls - 6F35 Wiring Diagram (1 of 3)
GFDWR19854Courtesy of FORD MOTOR COMPANY

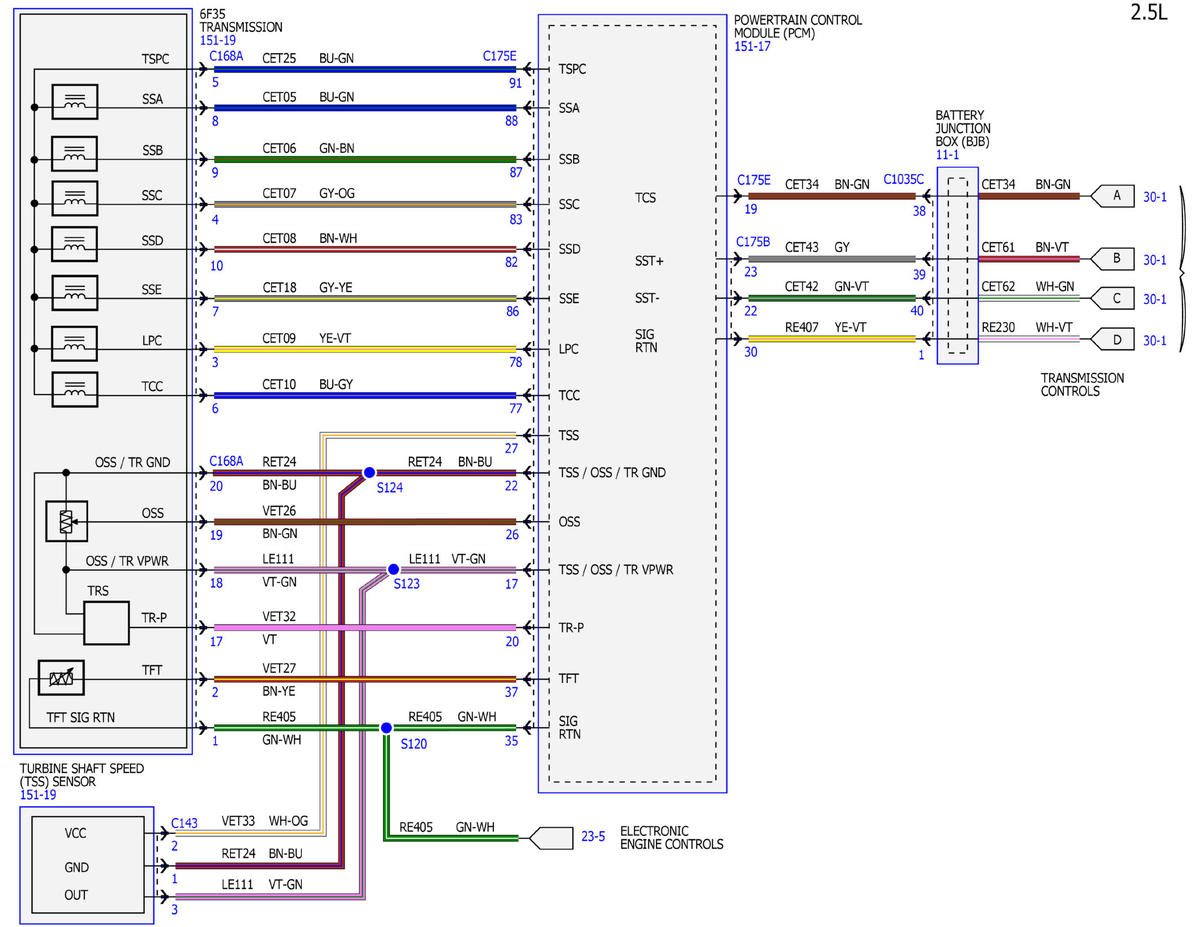

Fig 2: Transmission Controls - 6F35 Wiring Diagram (2 of 3)
GFDWR19855Courtesy of FORD MOTOR COMPANY

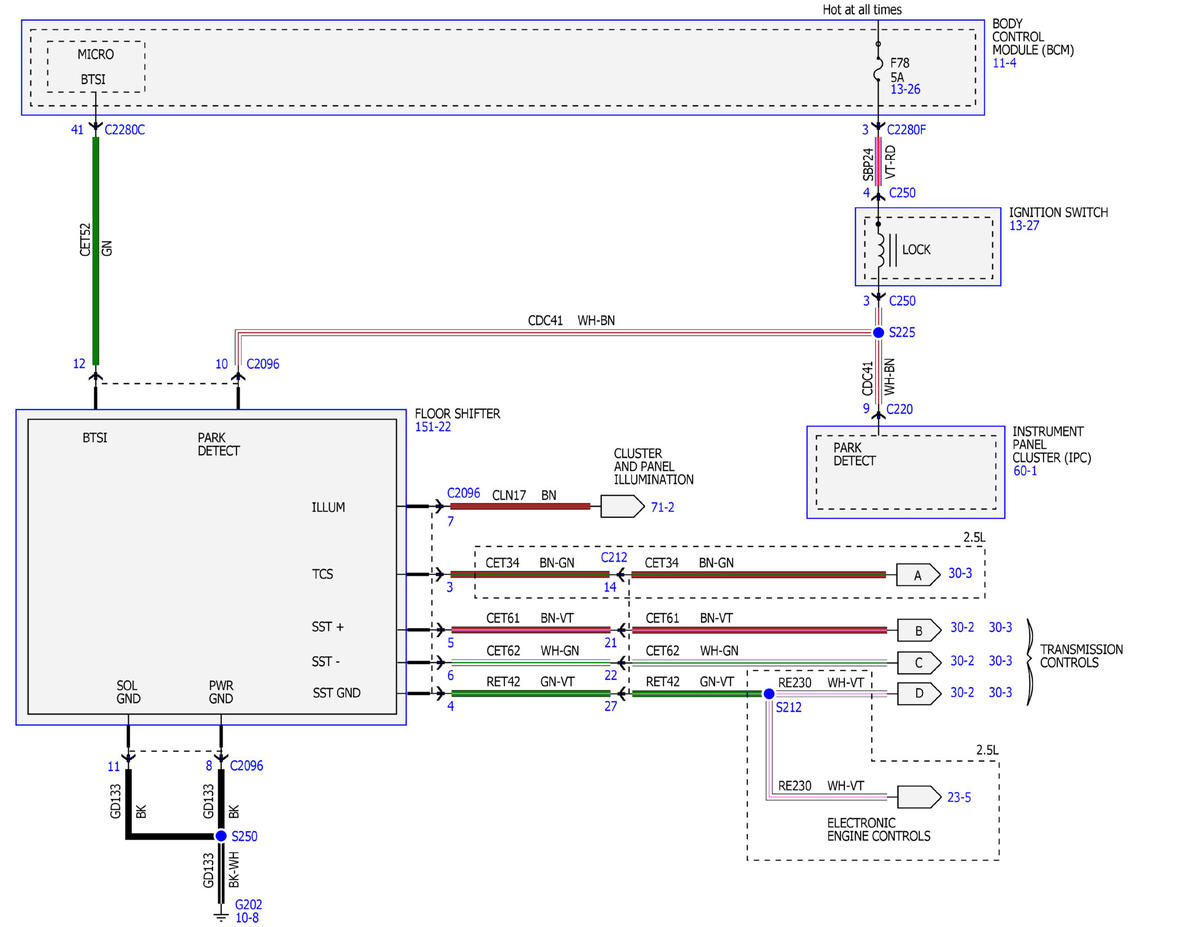

Fig 3: Transmission Controls - 6F35 Wiring Diagram (3 of 3)
GFDWR19856Courtesy of FORD MOTOR COMPANY
