Trailer/Camper Adapter

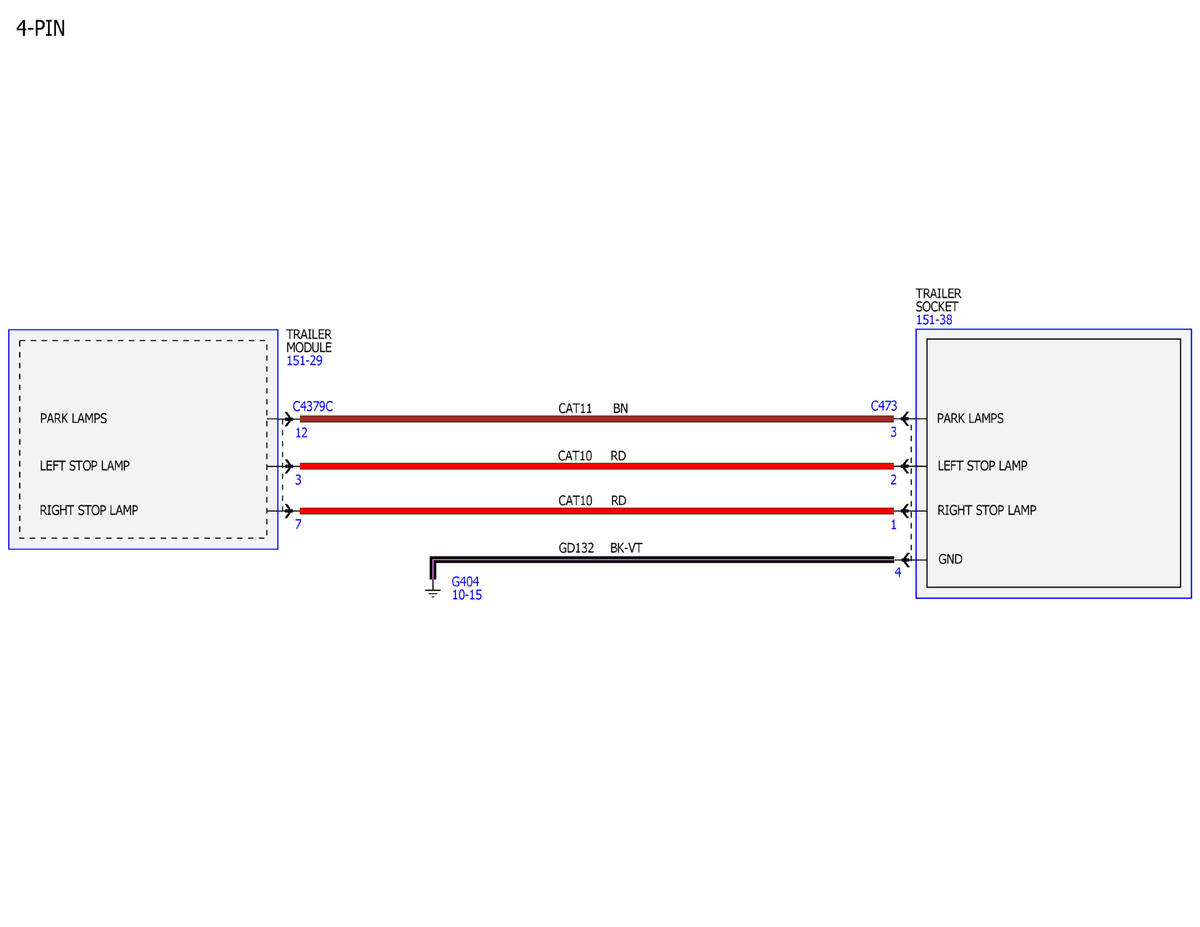

Fig 1: Trailer/Camper Adapter Wiring Diagram (1 of 3)
GFDWR19851Courtesy of FORD MOTOR COMPANY

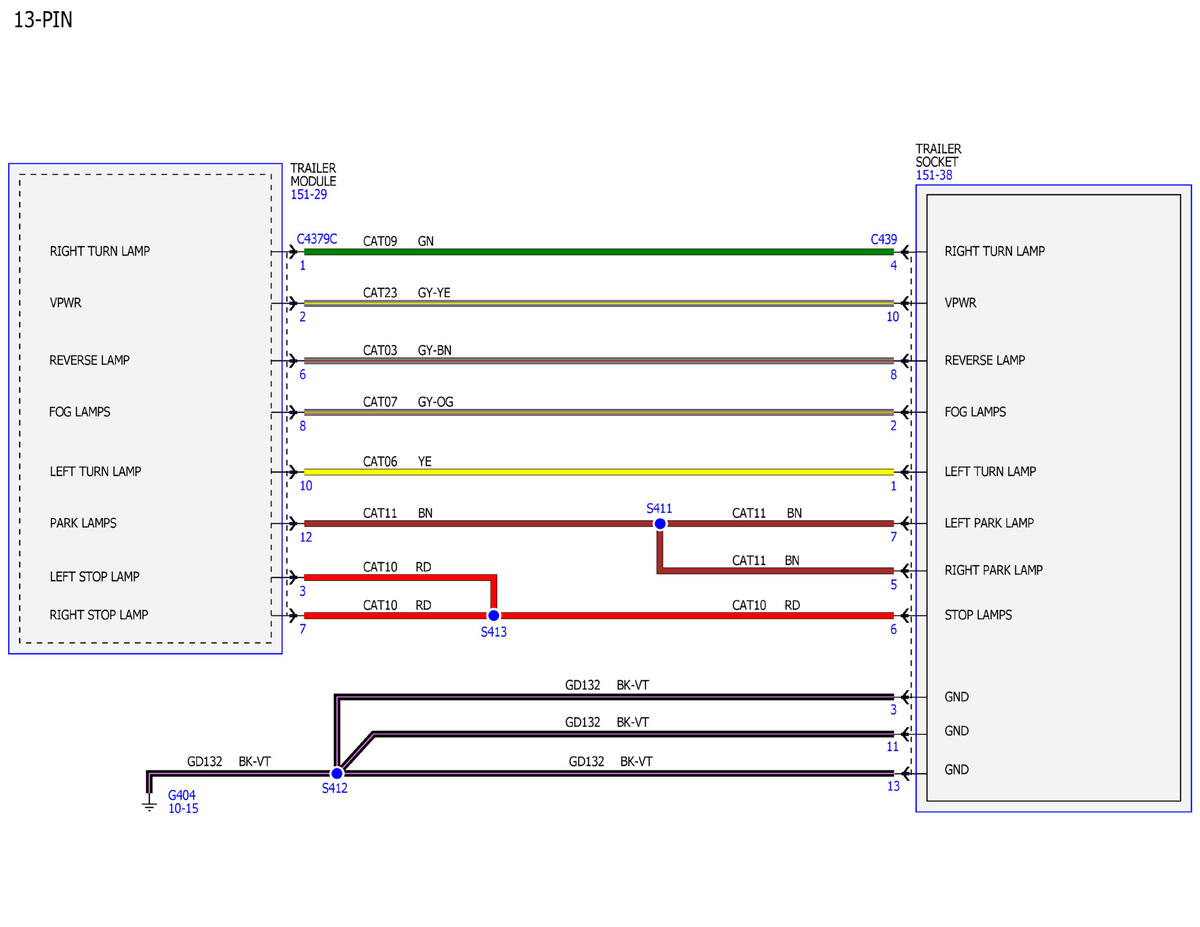

Fig 2: Trailer/Camper Adapter Wiring Diagram (2 of 3)
GFDWR19852Courtesy of FORD MOTOR COMPANY

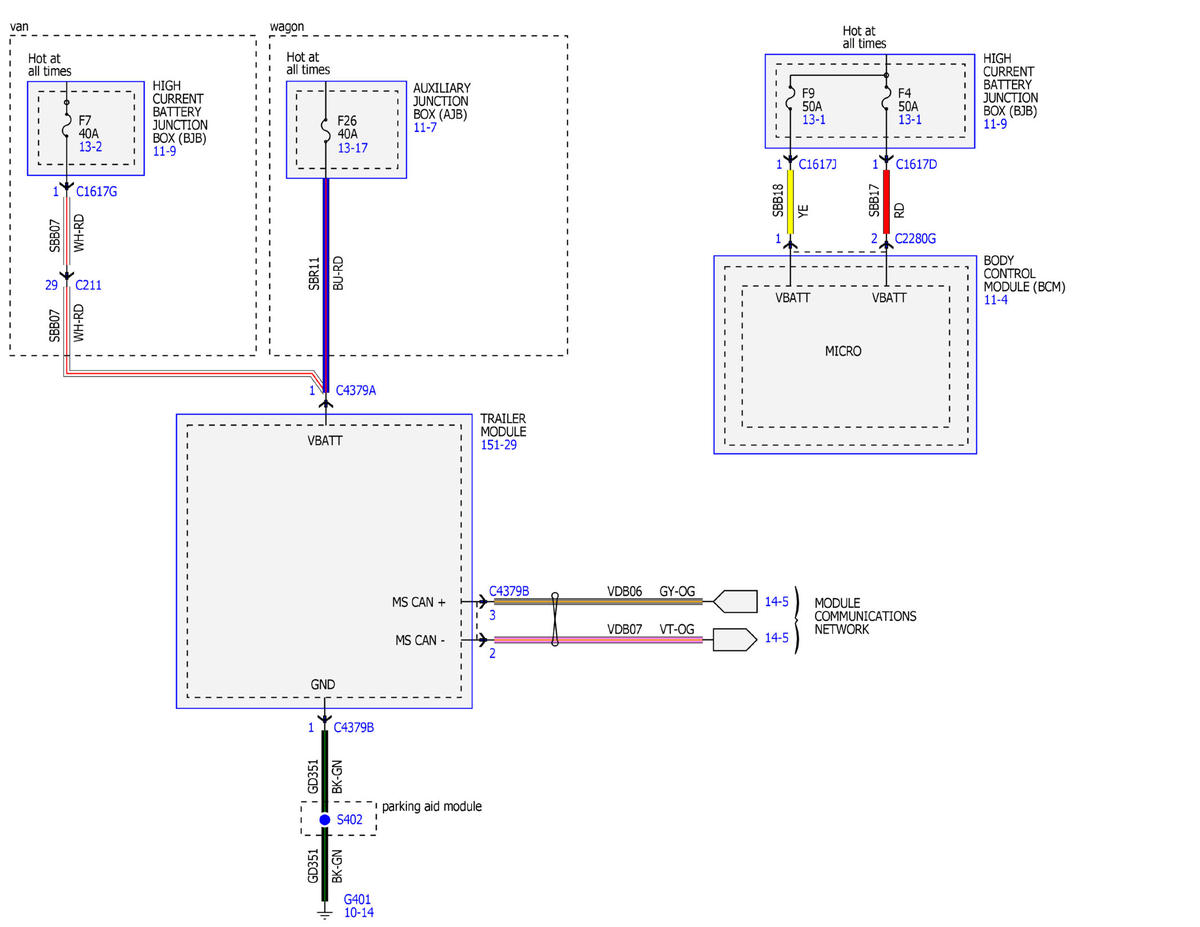

Fig 3: Trailer/Camper Adapter Wiring Diagram (3 of 3)
GFDWR19853Courtesy of FORD MOTOR COMPANY
