Power Sunshade
Power Sunshade

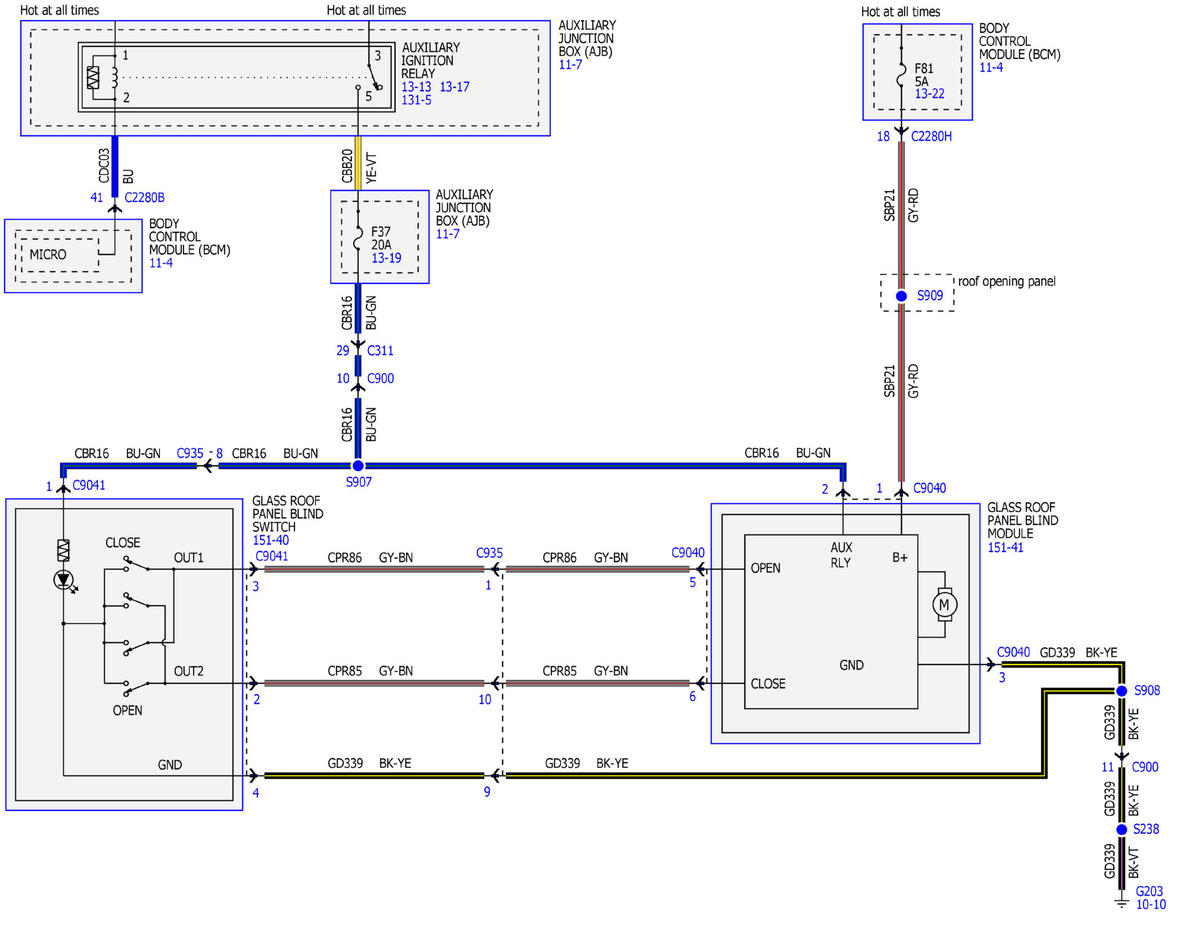

Fig 1: Power Sunshade Wiring Diagram
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
