Transit Connect XL, Van Cargo
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams
>>
Power Steering Controls
Power Steering Controls

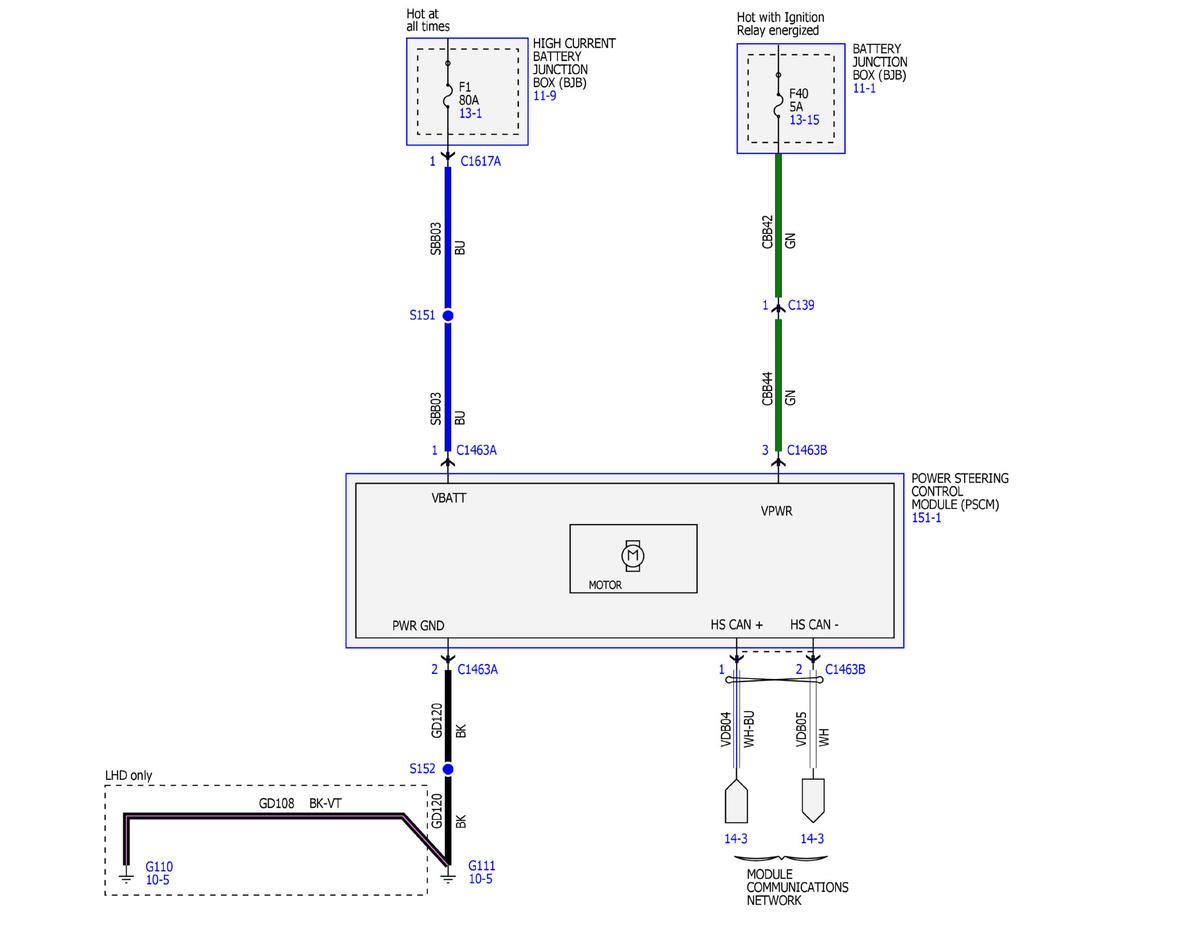

Fig 1: Power Steering Controls Wiring Diagram
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
