Power Mirrors

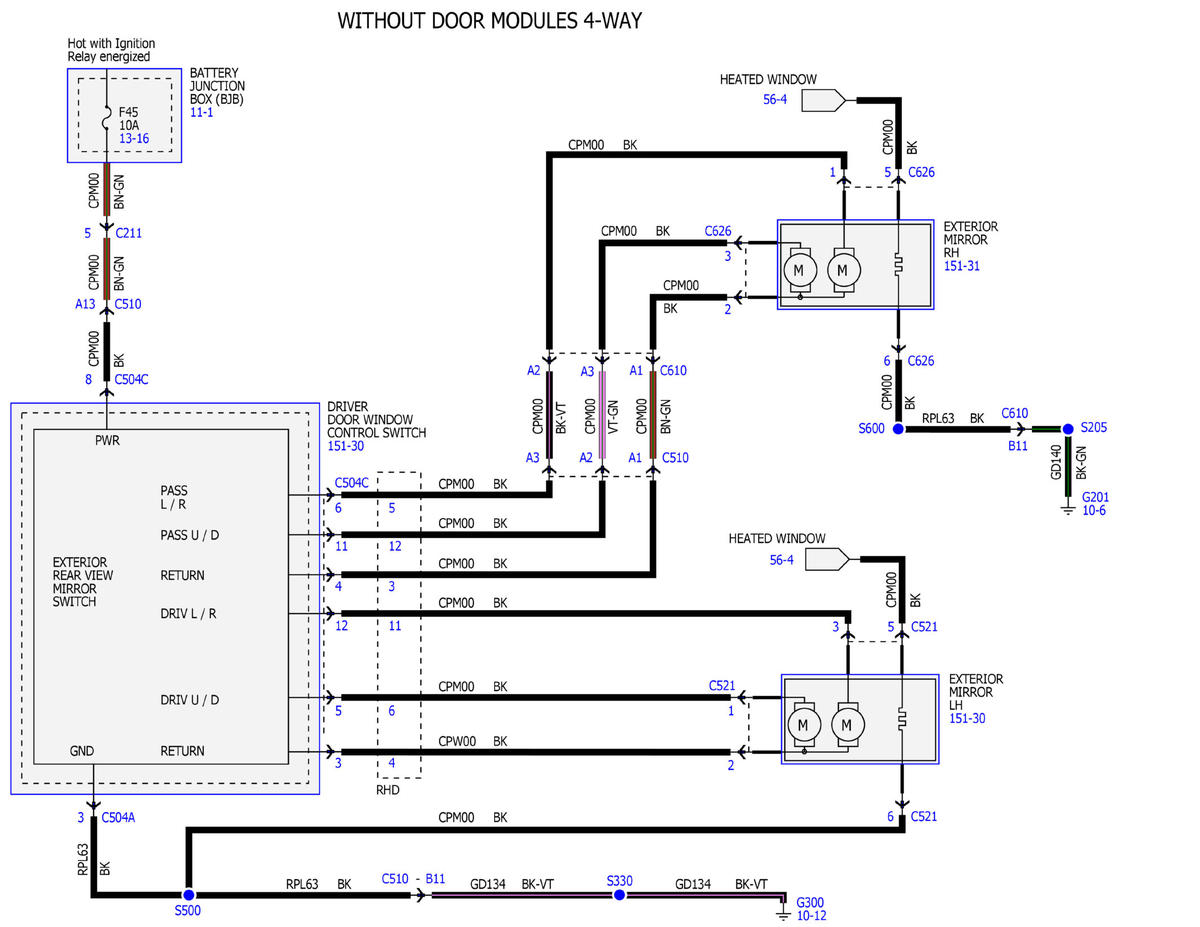

Fig 1: Power Mirrors Wiring Diagram (1 of 6)
GFDWR19808Courtesy of FORD MOTOR COMPANY

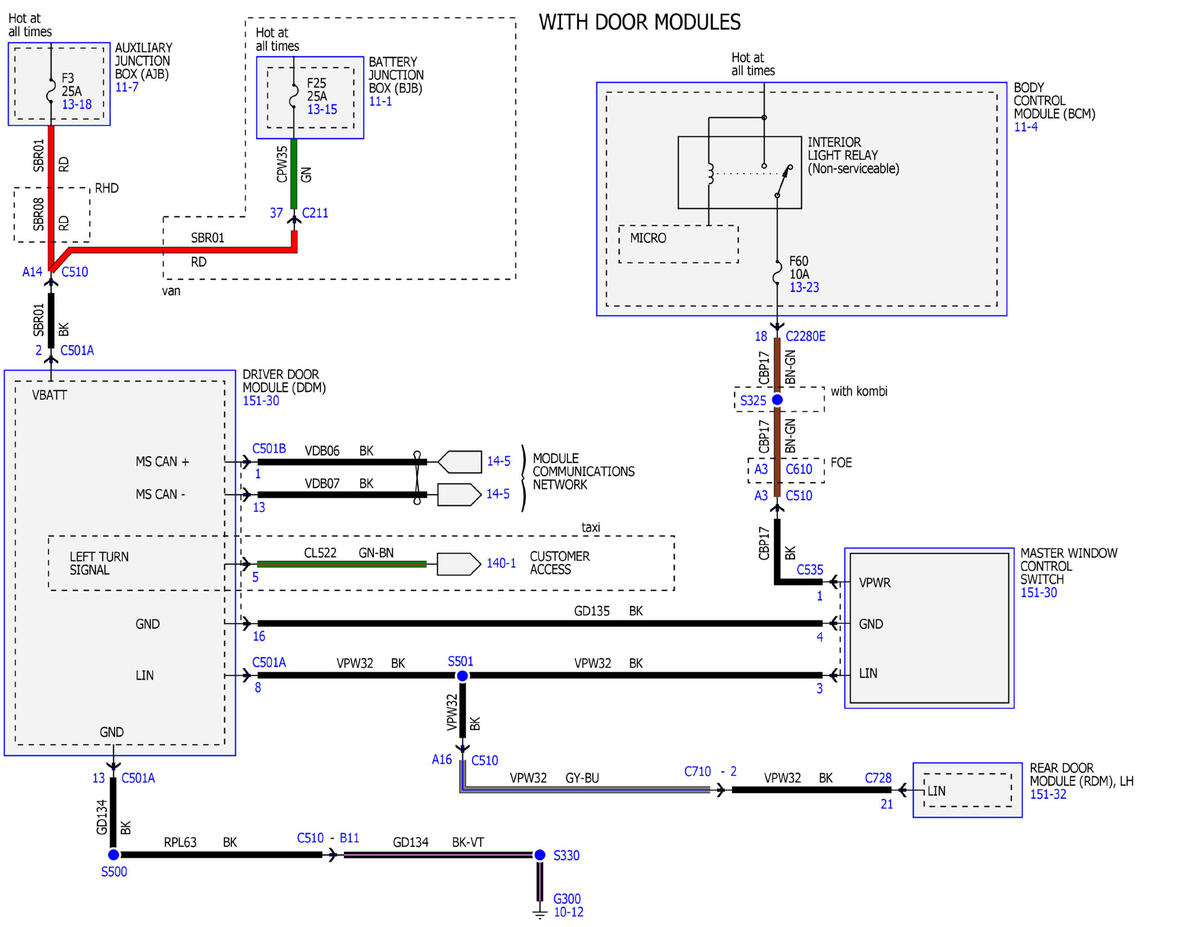

Fig 2: Power Mirrors Wiring Diagram (2 of 6)
GFDWR19809Courtesy of FORD MOTOR COMPANY

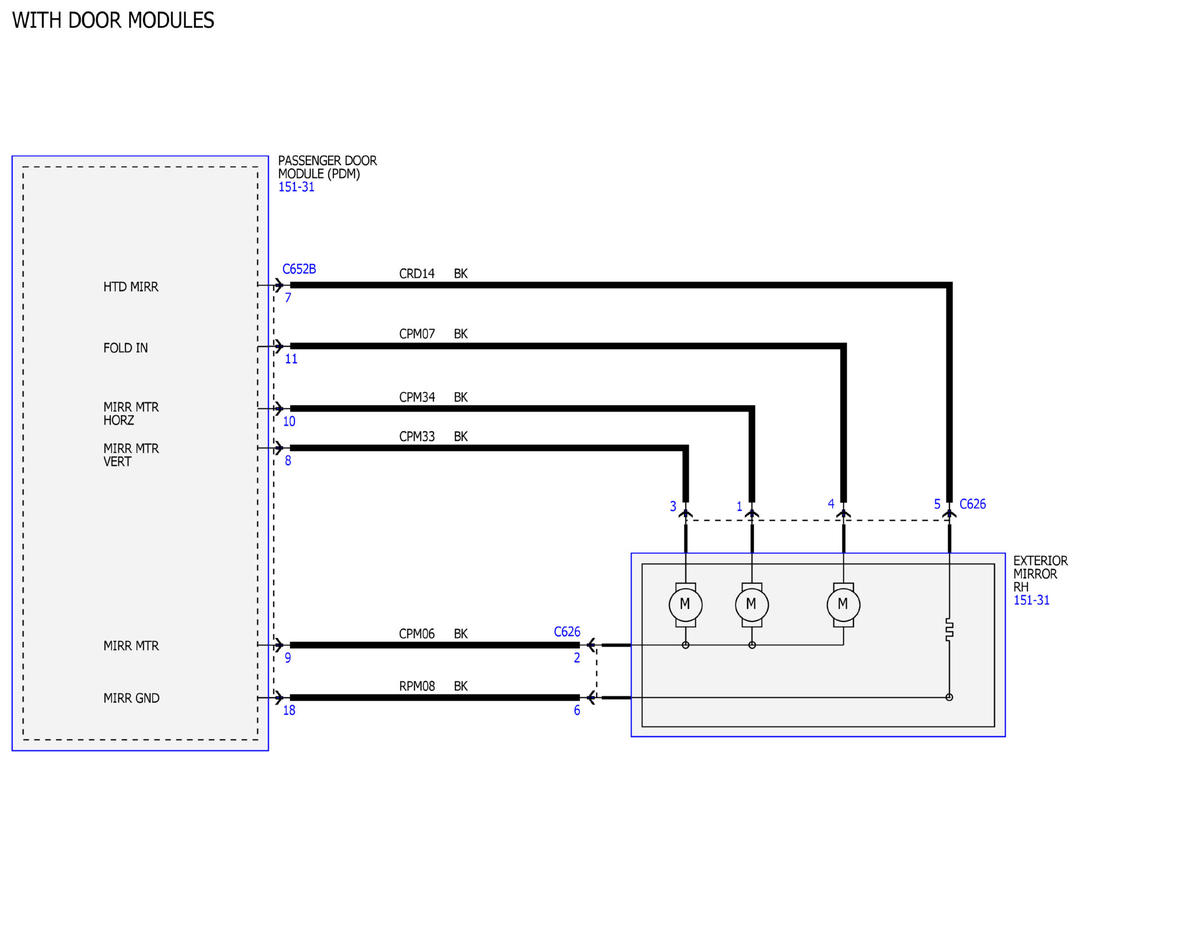

Fig 3: Power Mirrors Wiring Diagram (3 of 6)
GFDWR19810Courtesy of FORD MOTOR COMPANY

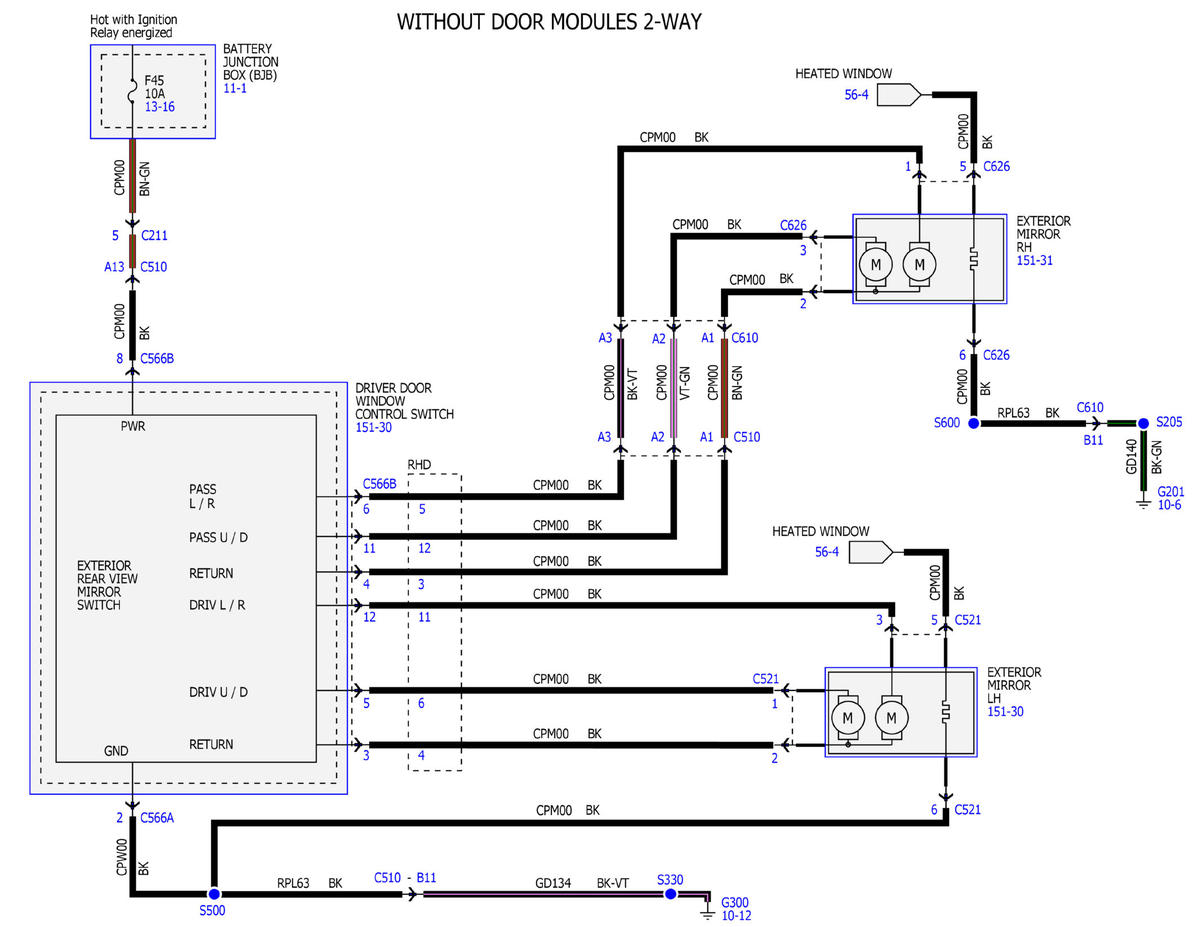

Fig 4: Power Mirrors Wiring Diagram (4 of 6)
GFDWR19811Courtesy of FORD MOTOR COMPANY

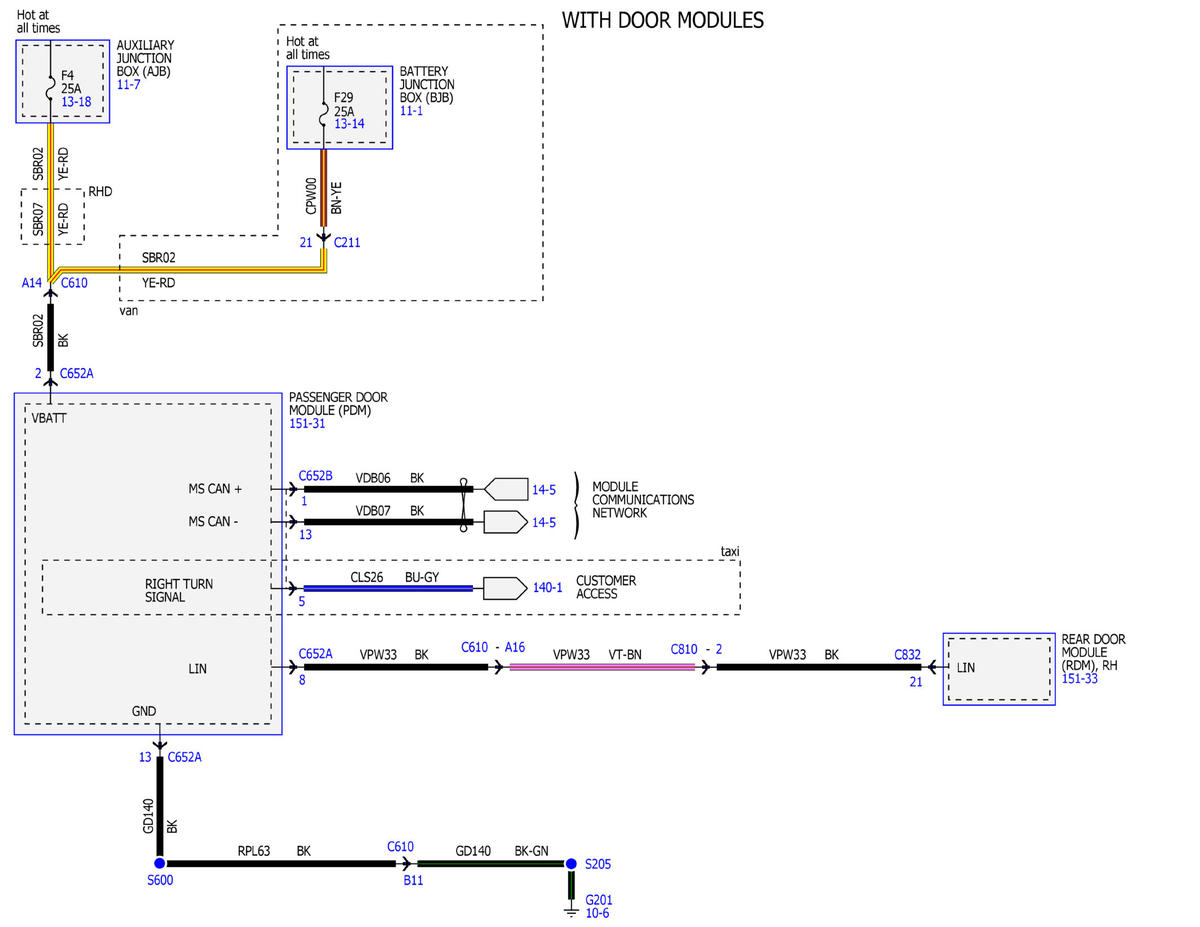

Fig 5: Power Mirrors Wiring Diagram (5 of 6)
GFDWR19812Courtesy of FORD MOTOR COMPANY

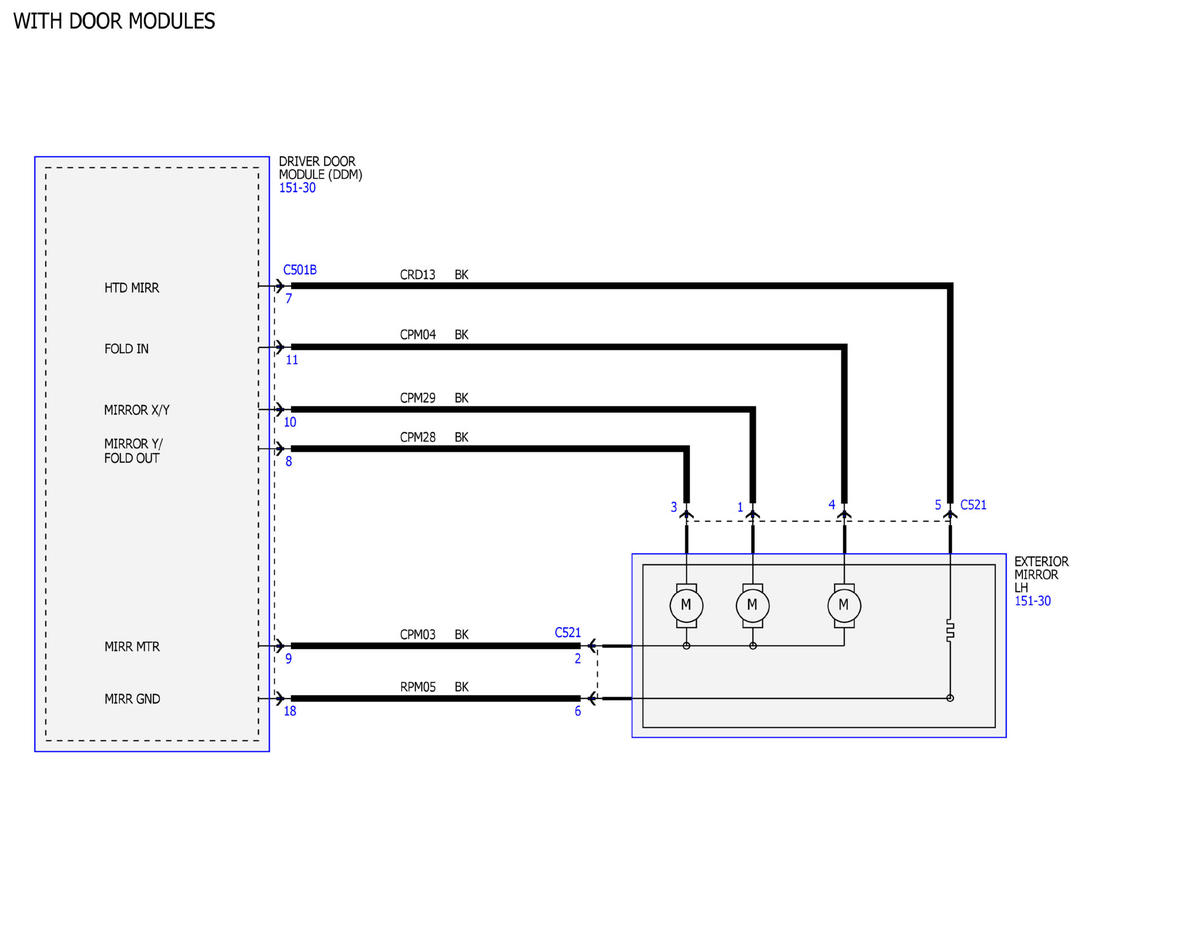

Fig 6: Power Mirrors Wiring Diagram (6 of 6)
GFDWR19813Courtesy of FORD MOTOR COMPANY
