Power Liftgate
Power Liftgate

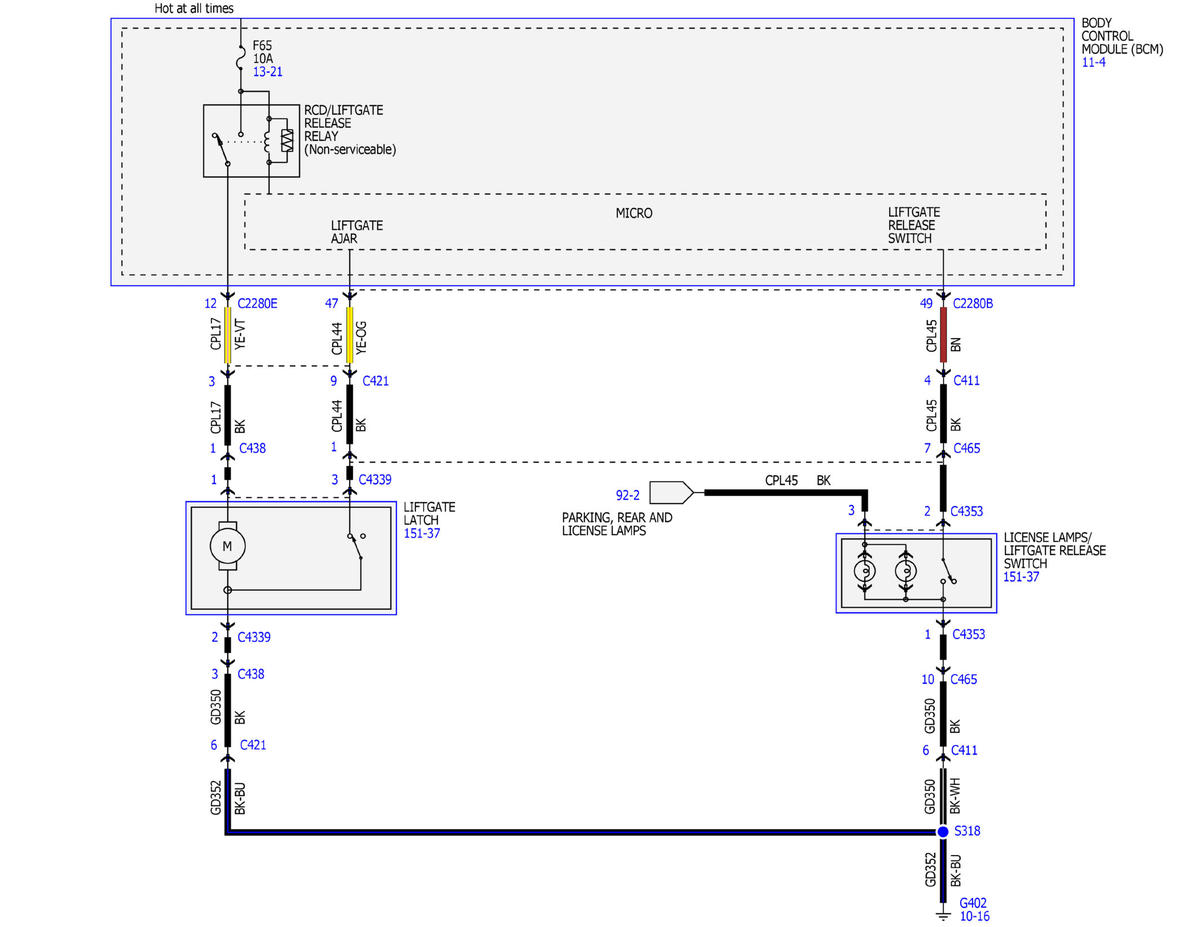

Fig 1: Power Liftgate Wiring Diagram
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
