Parking Aid

Fig 1: Parking Aid Wiring Diagram (1 of 10)
GFDWR19741Courtesy of FORD MOTOR COMPANY

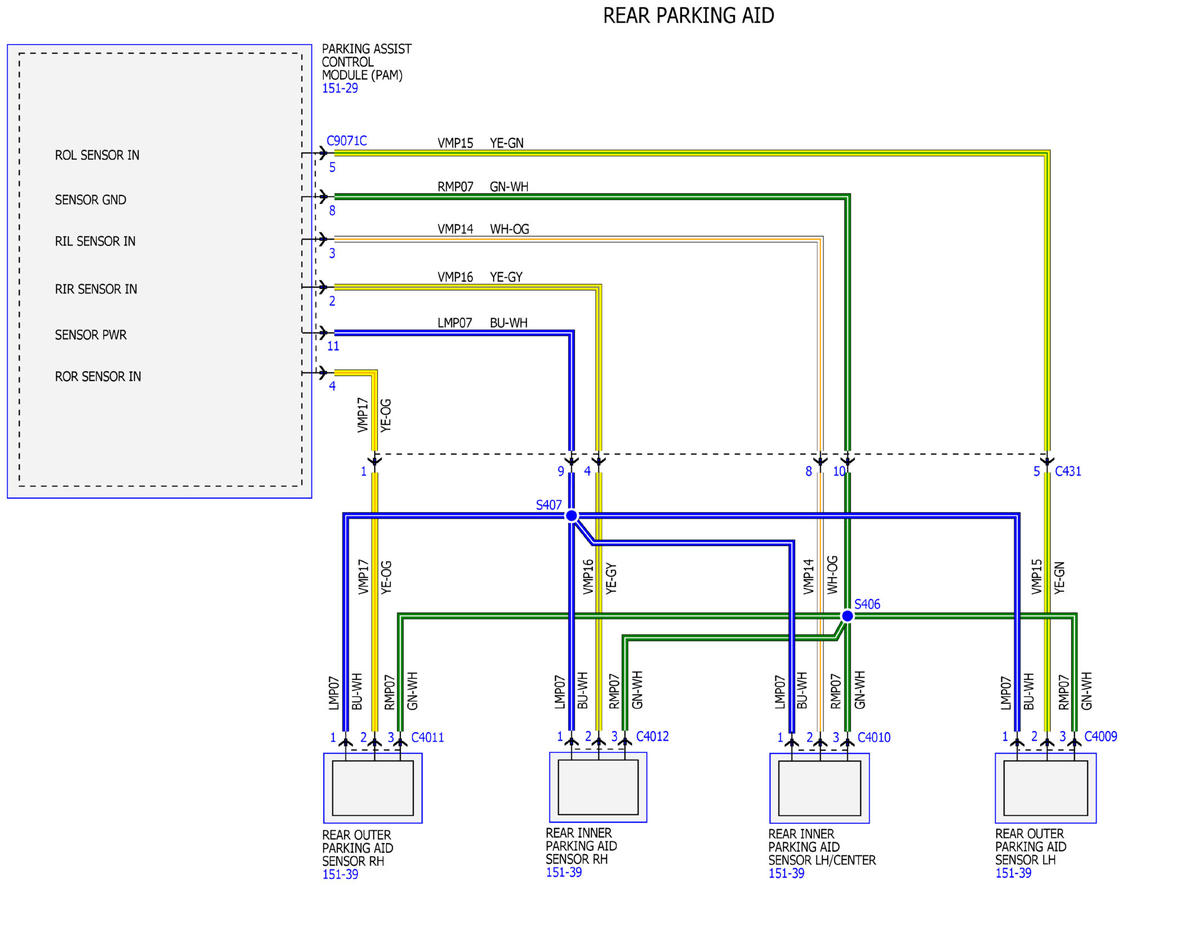

Fig 2: Parking Aid Wiring Diagram (2 of 10)
GFDWR19742Courtesy of FORD MOTOR COMPANY

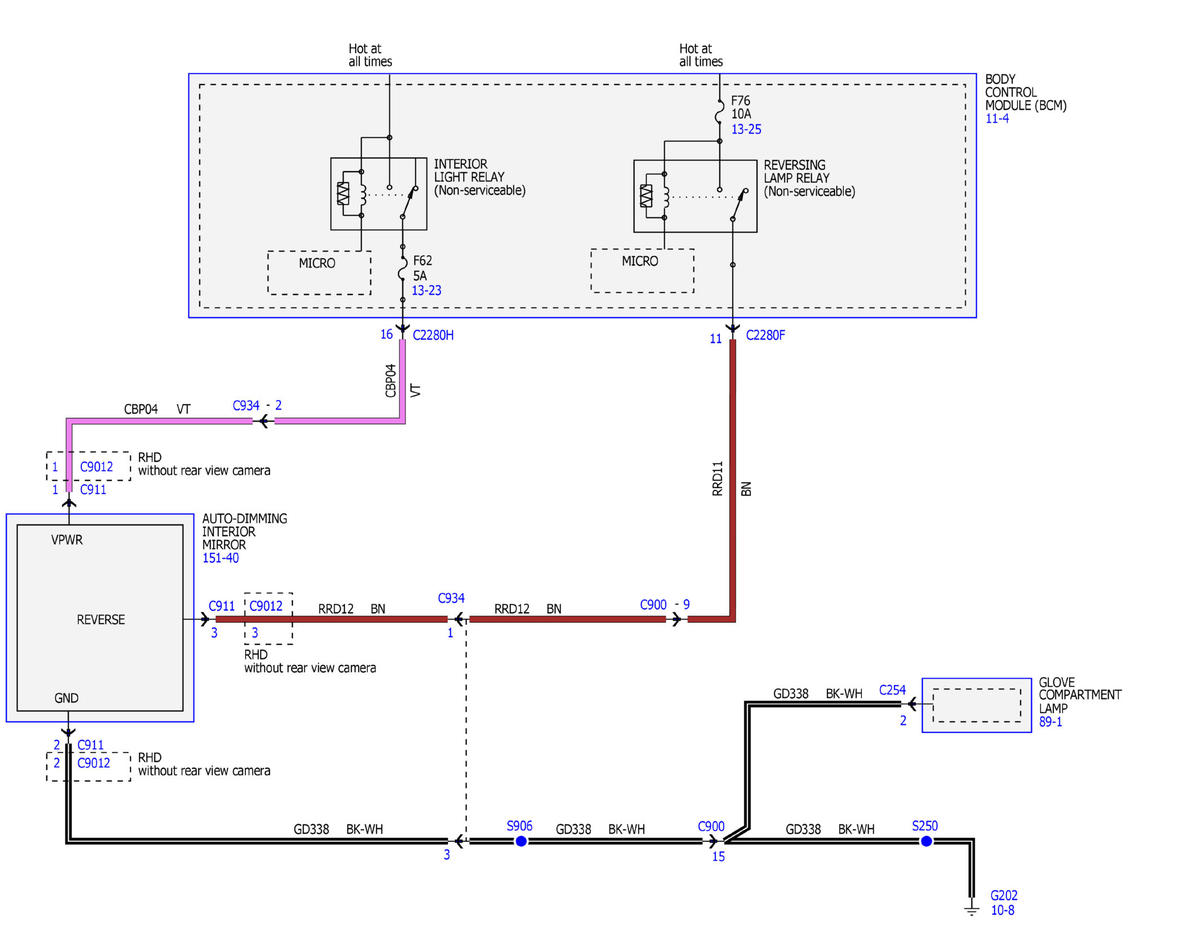

Fig 3: Parking Aid Wiring Diagram (3 of 10)
GFDWR19743Courtesy of FORD MOTOR COMPANY

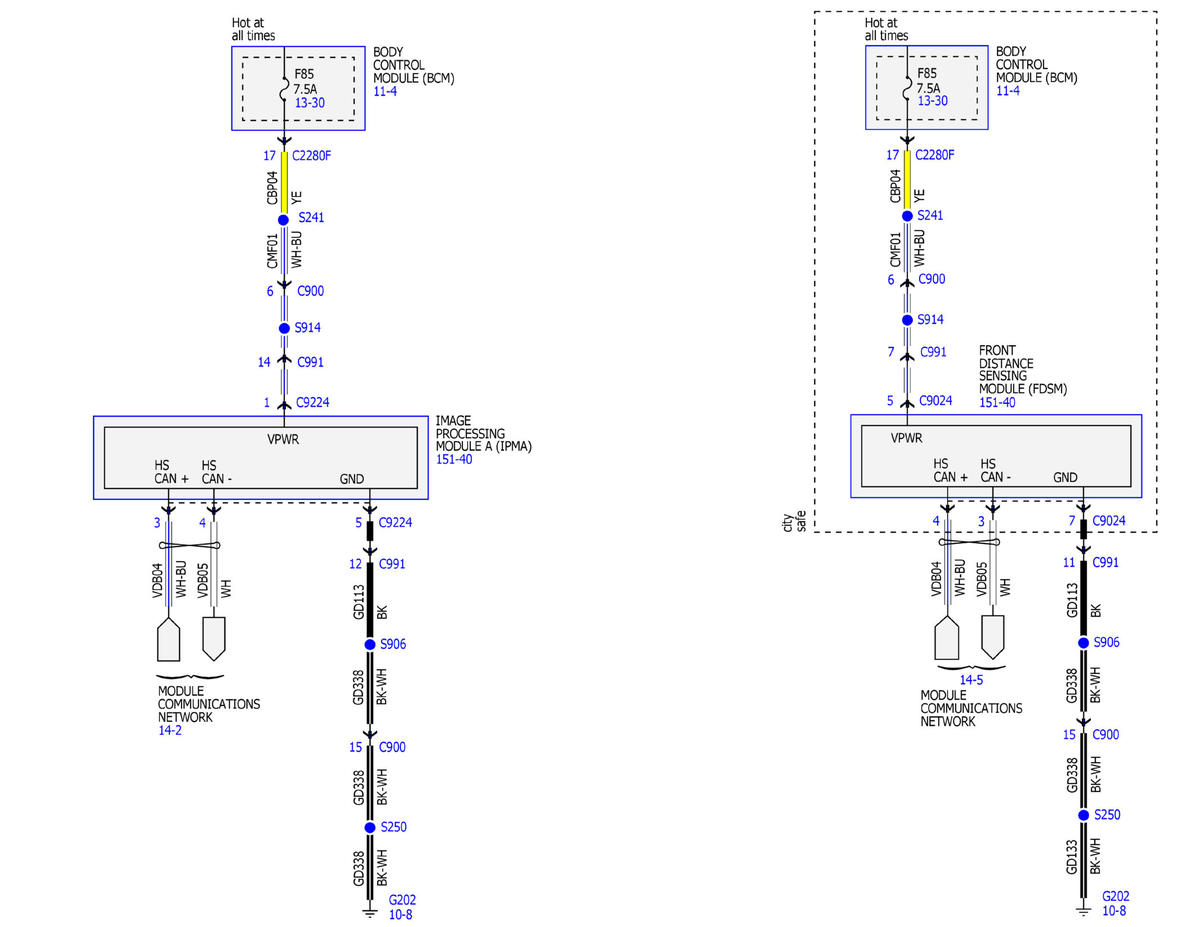

Fig 4: Parking Aid Wiring Diagram (4 of 10)
GFDWR19744Courtesy of FORD MOTOR COMPANY

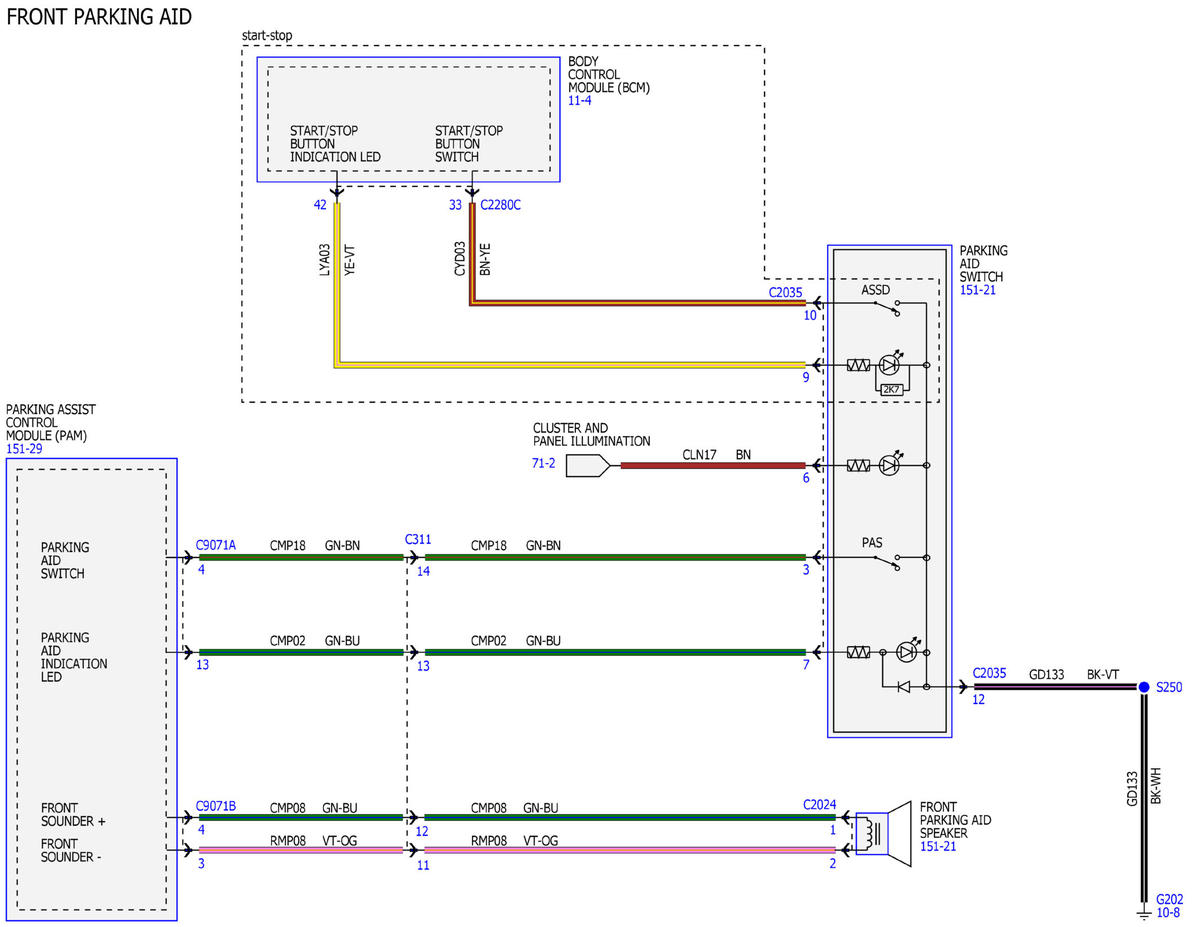

Fig 5: Parking Aid Wiring Diagram (5 of 10)
GFDWR19745Courtesy of FORD MOTOR COMPANY

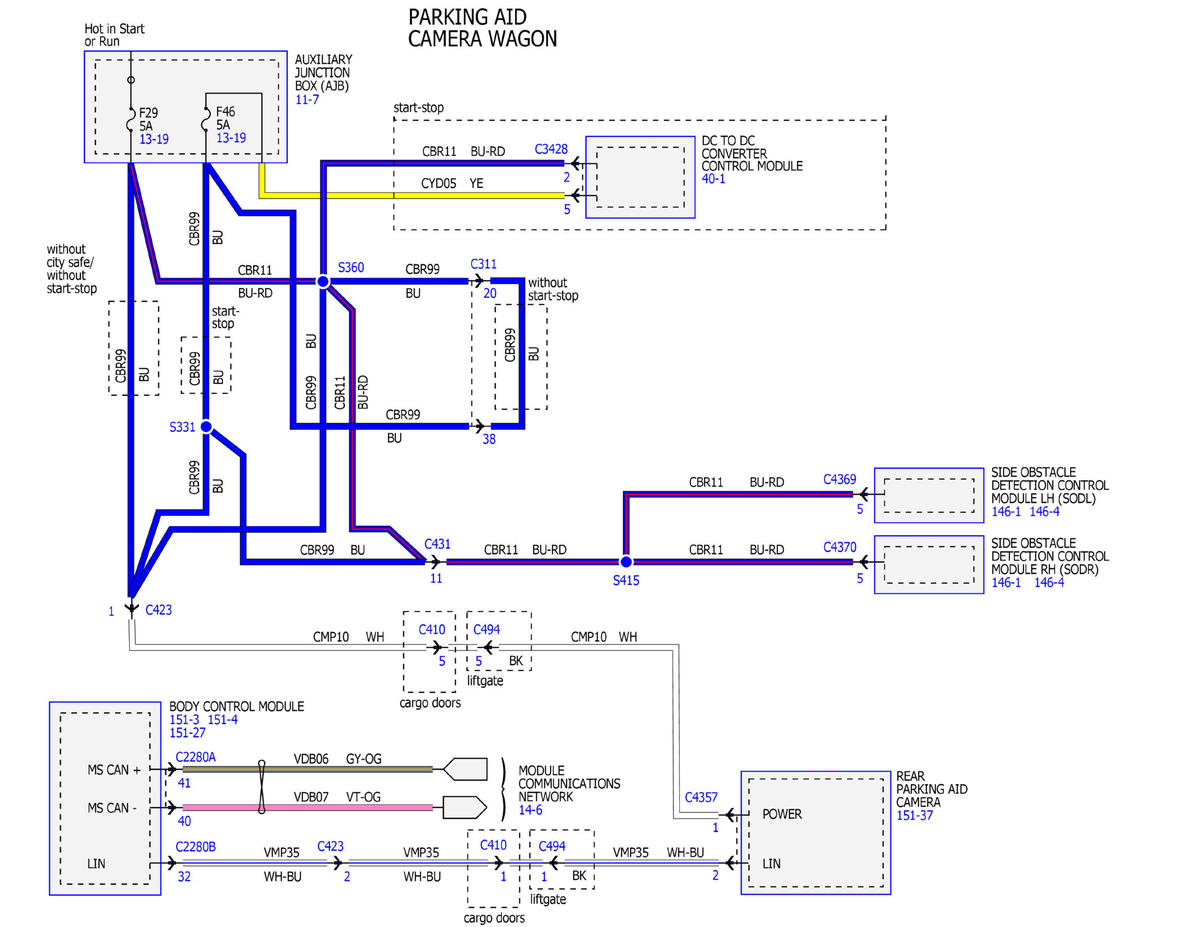

Fig 6: Parking Aid Wiring Diagram (6 of 10)
GFDWR19746Courtesy of FORD MOTOR COMPANY

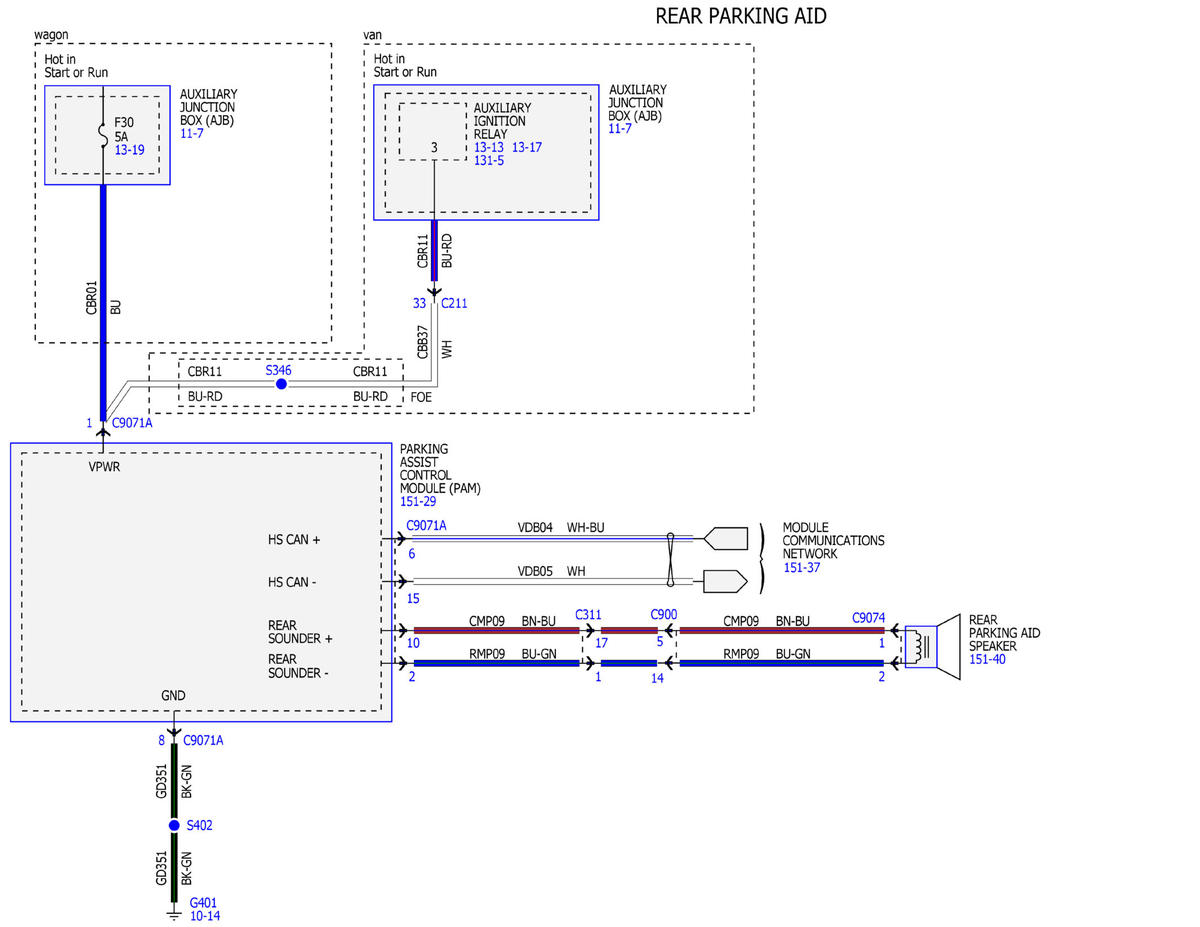

Fig 7: Parking Aid Wiring Diagram (7 of 10)
GFDWR19747Courtesy of FORD MOTOR COMPANY

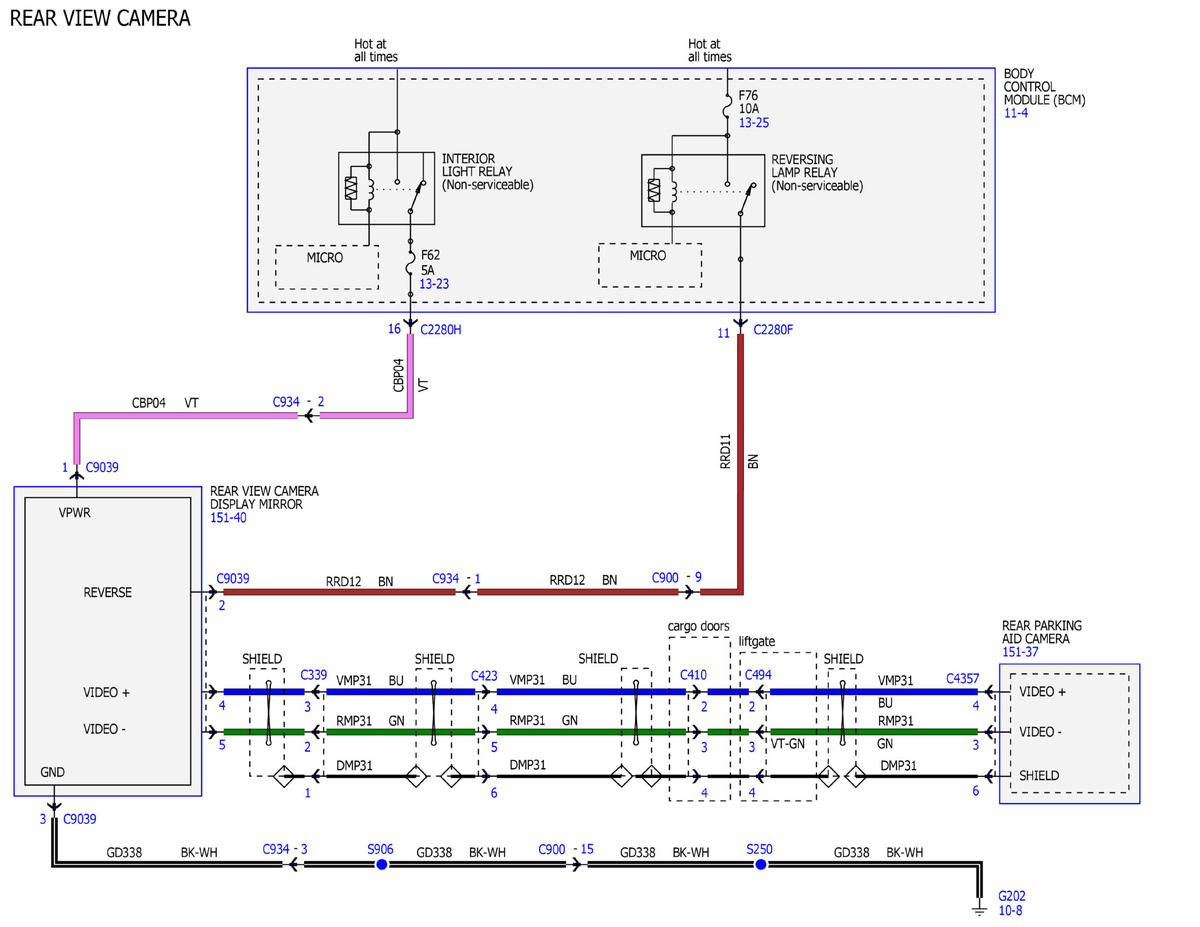

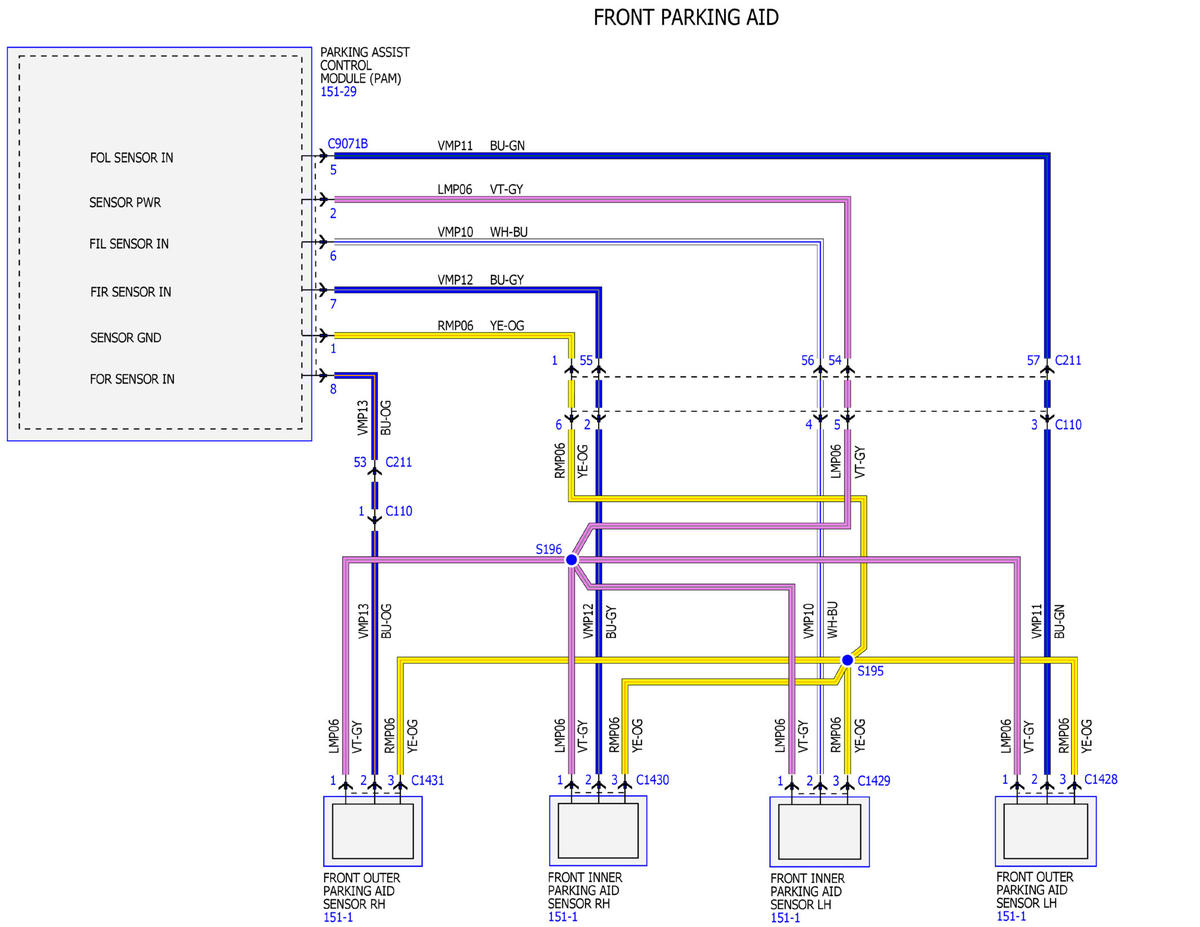

Fig 8: Parking Aid Wiring Diagram (8 of 10)
GFDWR19748Courtesy of FORD MOTOR COMPANY

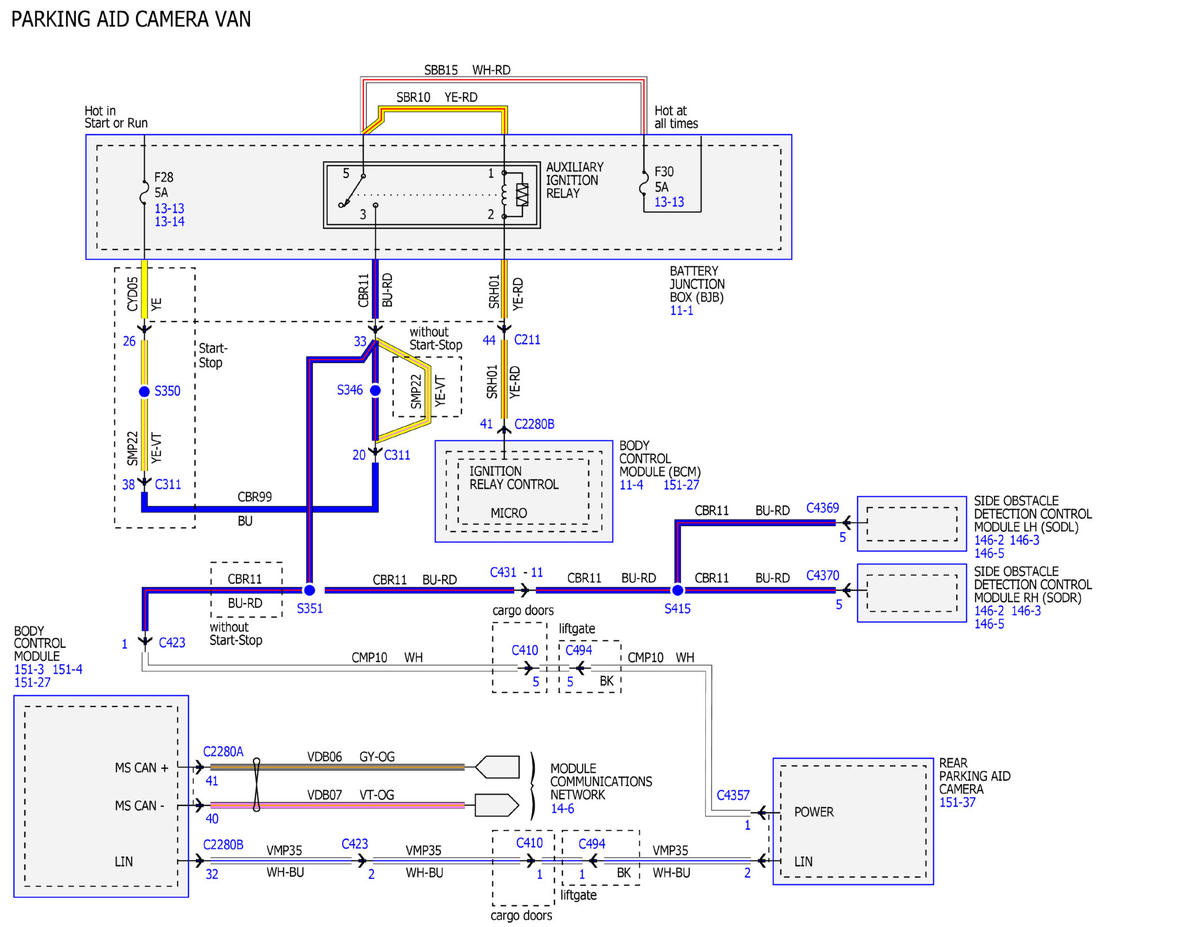

Fig 9: Parking Aid Wiring Diagram (9 of 10)
GFDWR19749Courtesy of FORD MOTOR COMPANY

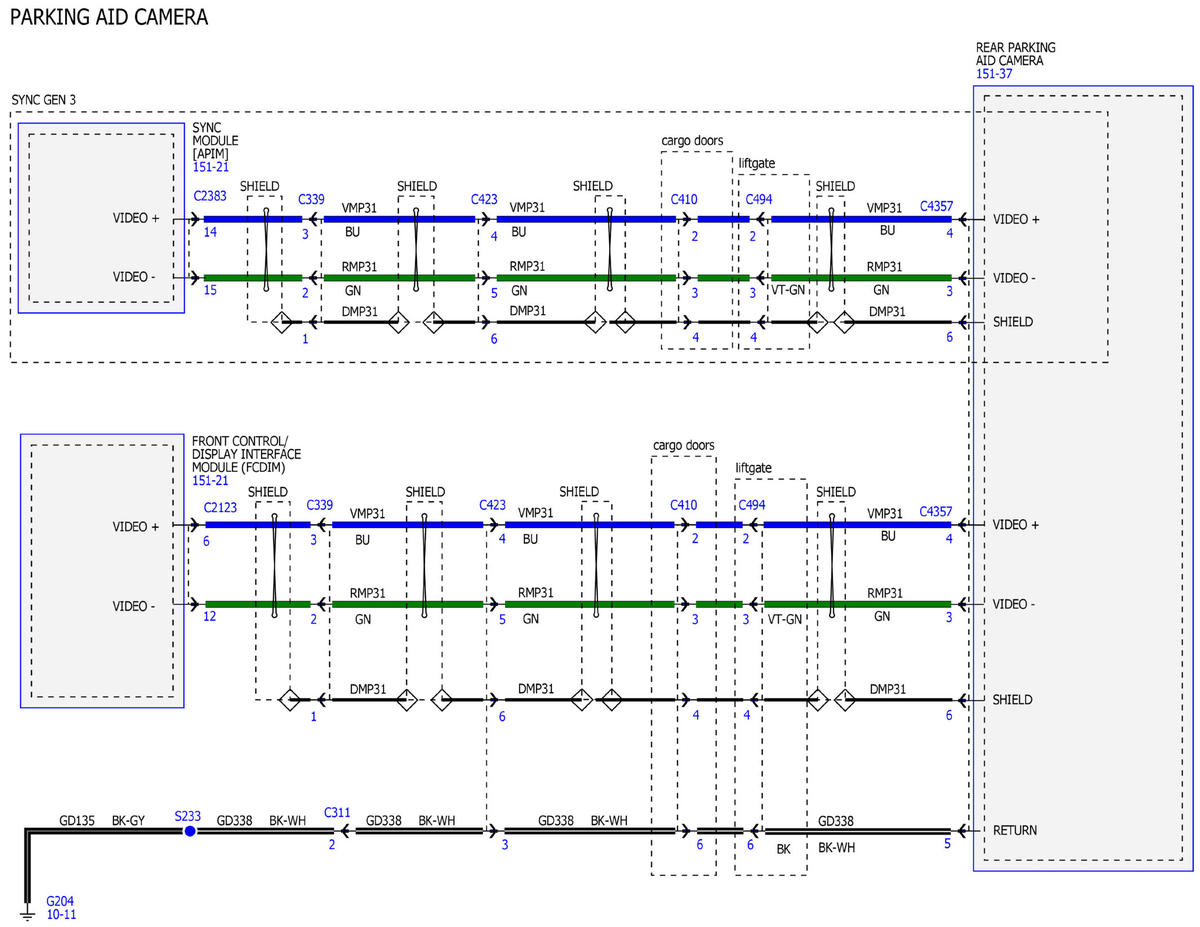

Fig 10: Parking Aid Wiring Diagram (10 of 10)
GFDWR19750Courtesy of FORD MOTOR COMPANY
