Interior Lamps

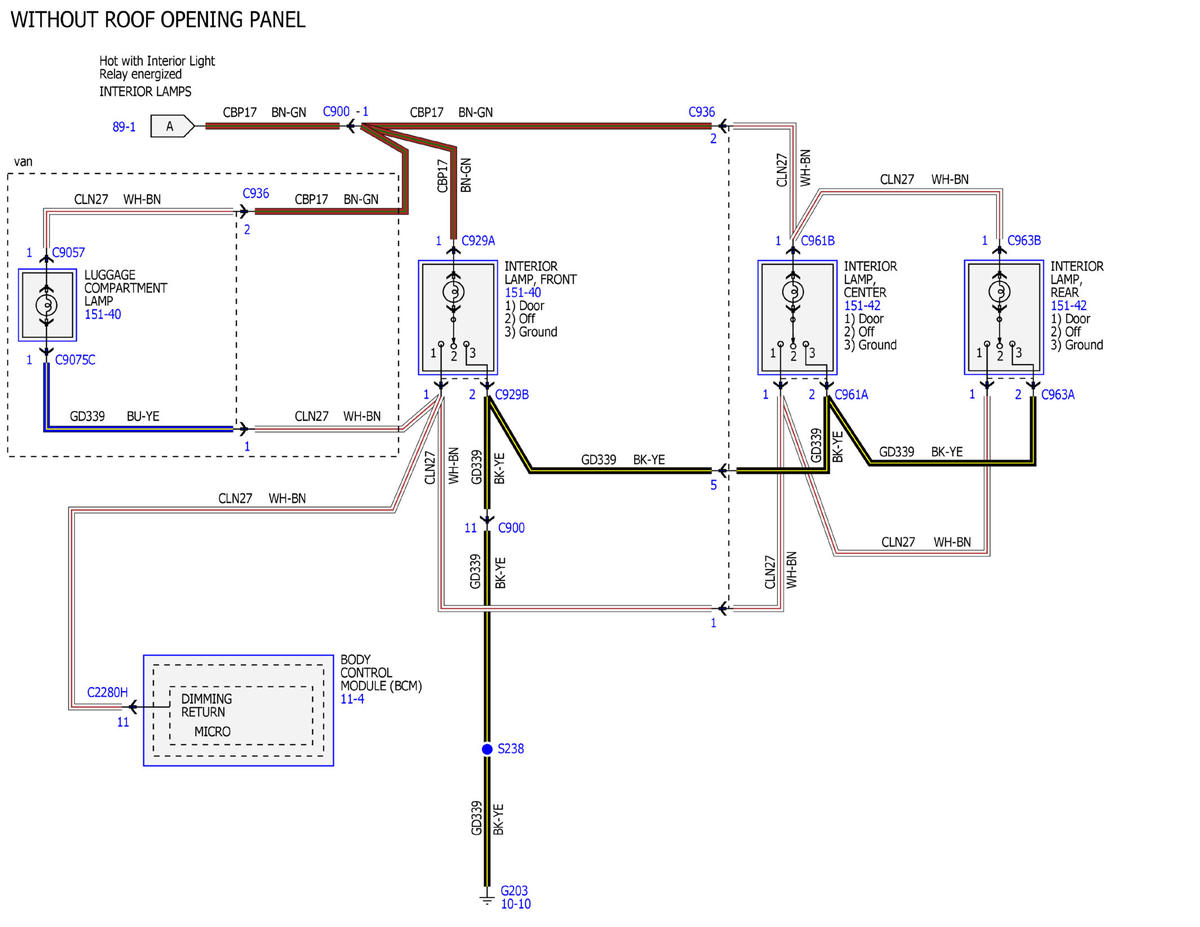

Fig 1: Interior Lamps Wiring Diagram (1 of 7)
GFDWR19720Courtesy of FORD MOTOR COMPANY

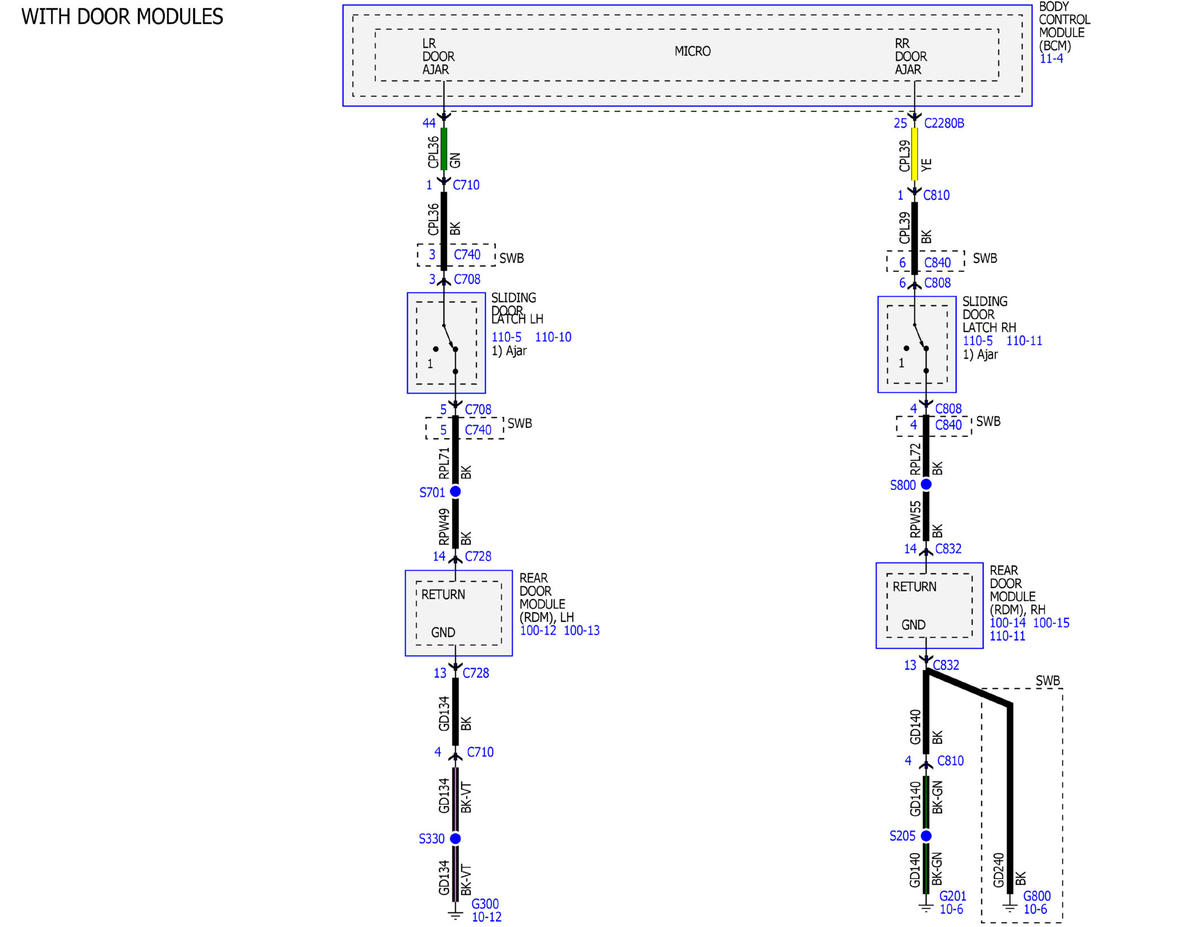

Fig 2: Interior Lamps Wiring Diagram (2 of 7)
GFDWR19721Courtesy of FORD MOTOR COMPANY

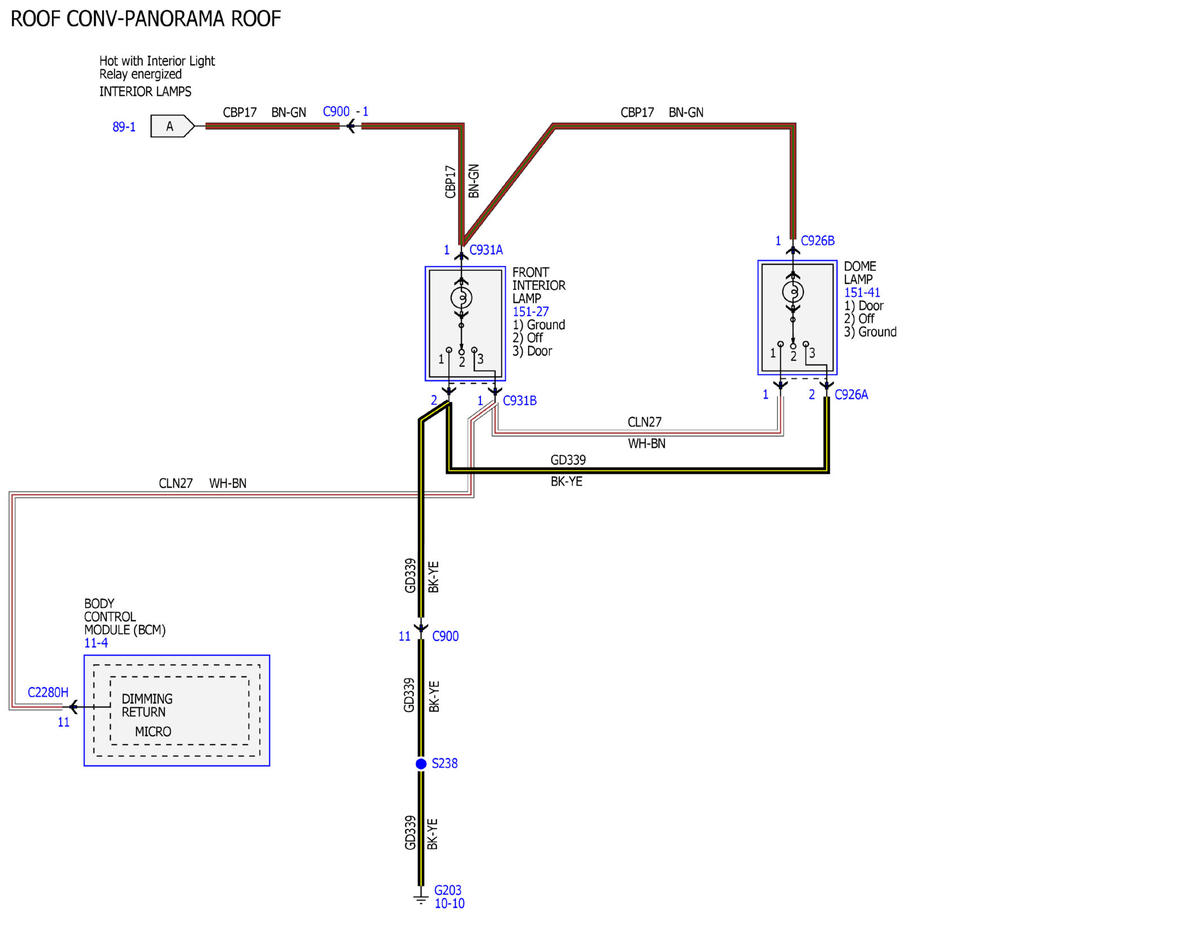

Fig 3: Interior Lamps Wiring Diagram (3 of 7)
GFDWR19722Courtesy of FORD MOTOR COMPANY

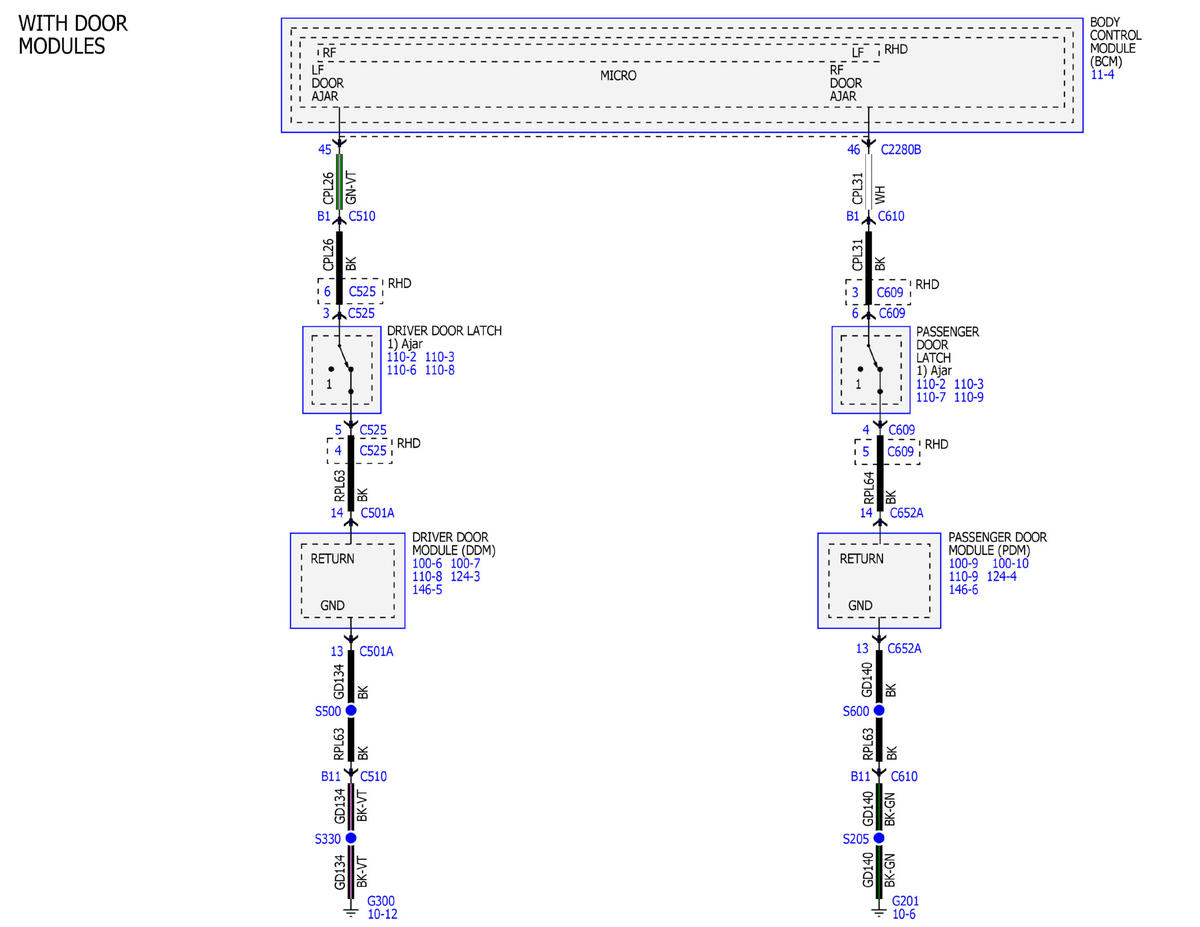

Fig 4: Interior Lamps Wiring Diagram (4 of 7)
GFDWR19723Courtesy of FORD MOTOR COMPANY

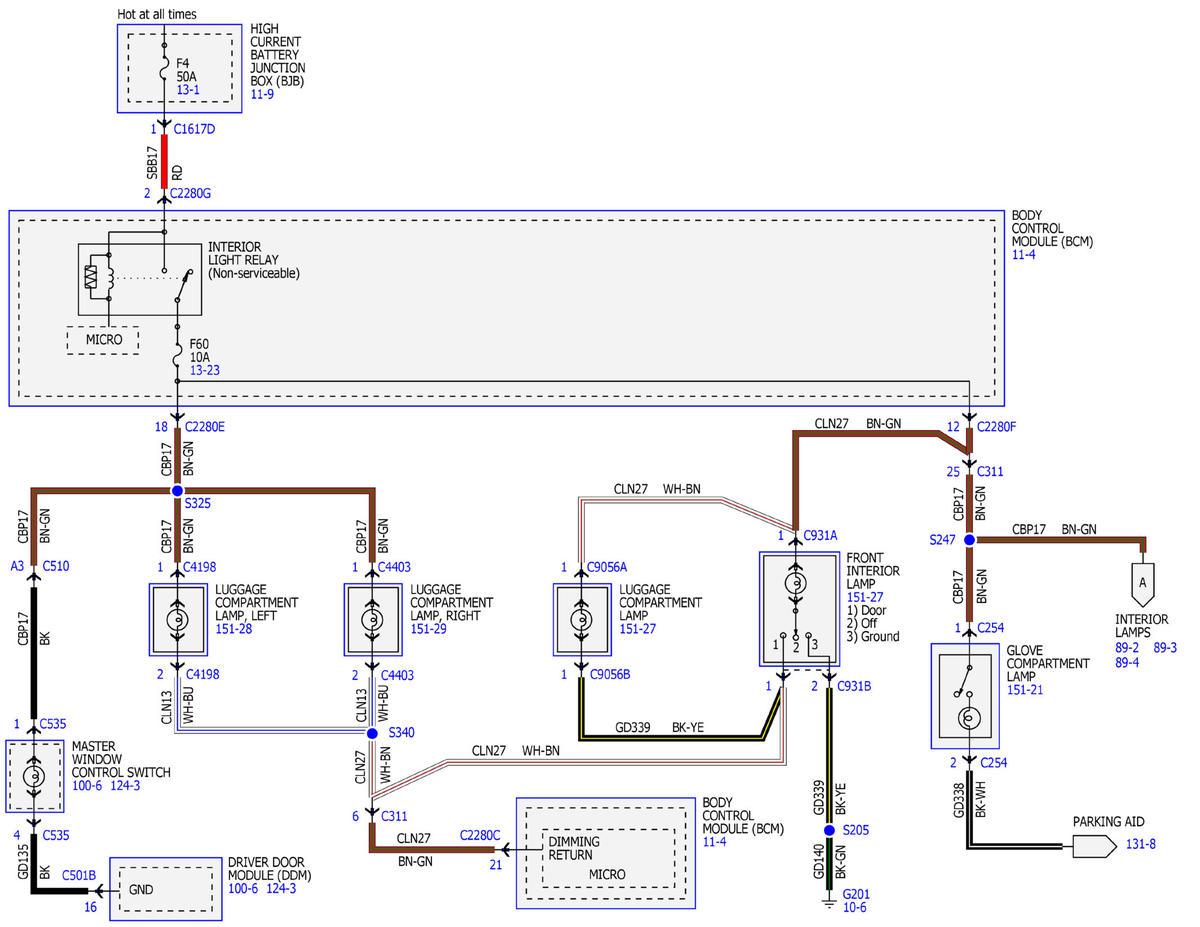

Fig 5: Interior Lamps Wiring Diagram (5 of 7)
GFDWR19724Courtesy of FORD MOTOR COMPANY

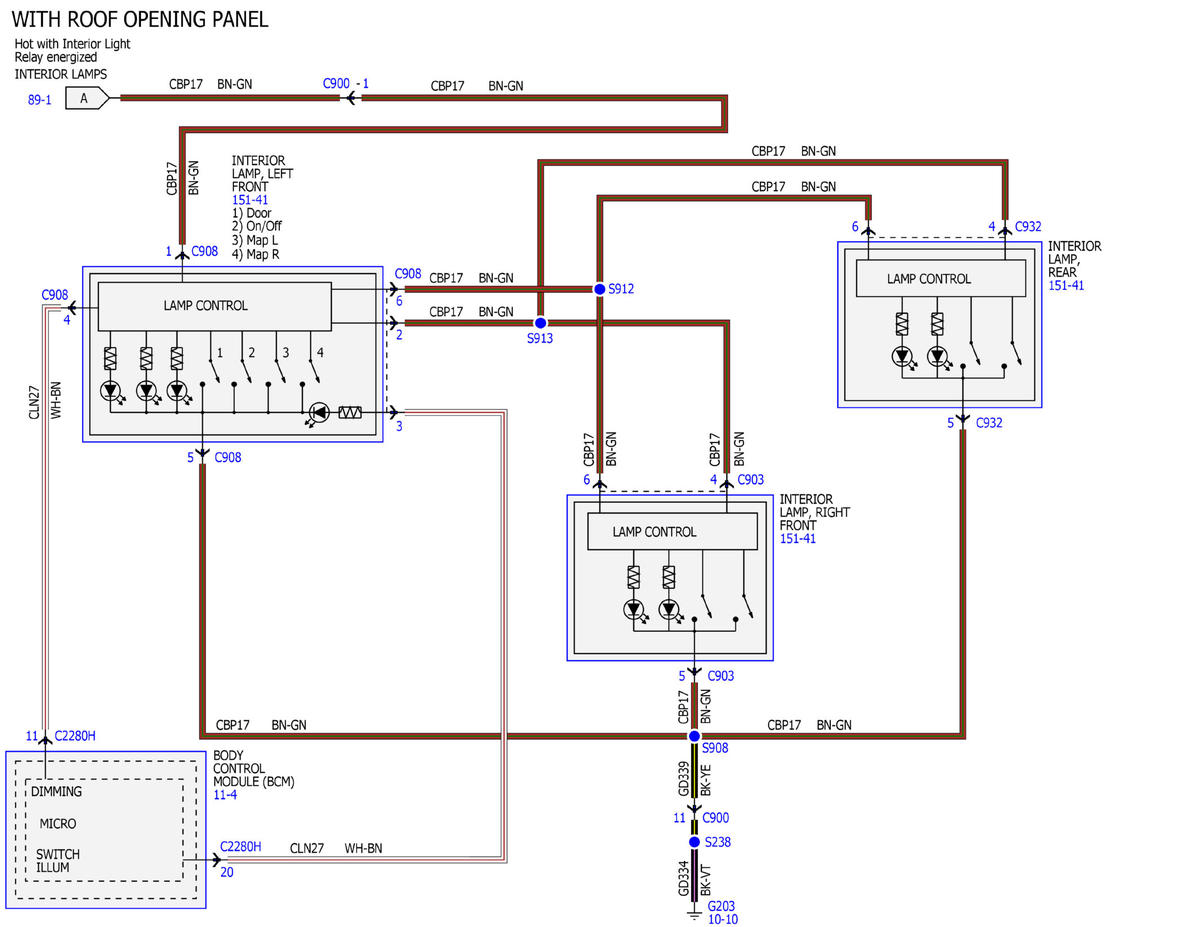

Fig 6: Interior Lamps Wiring Diagram (6 of 7)
GFDWR19725Courtesy of FORD MOTOR COMPANY

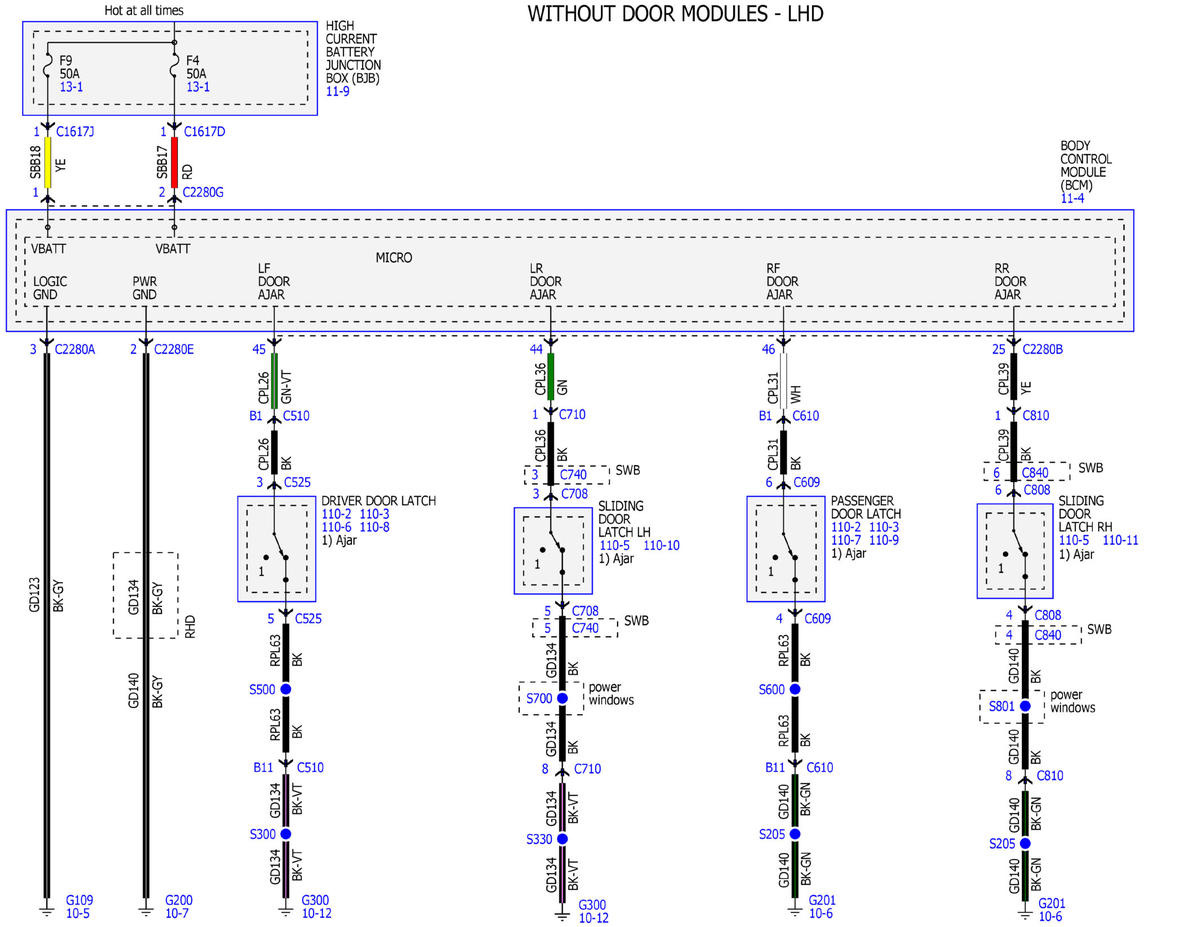

Fig 7: Interior Lamps Wiring Diagram (7 of 7)
GFDWR19726Courtesy of FORD MOTOR COMPANY
