Instrument Cluster

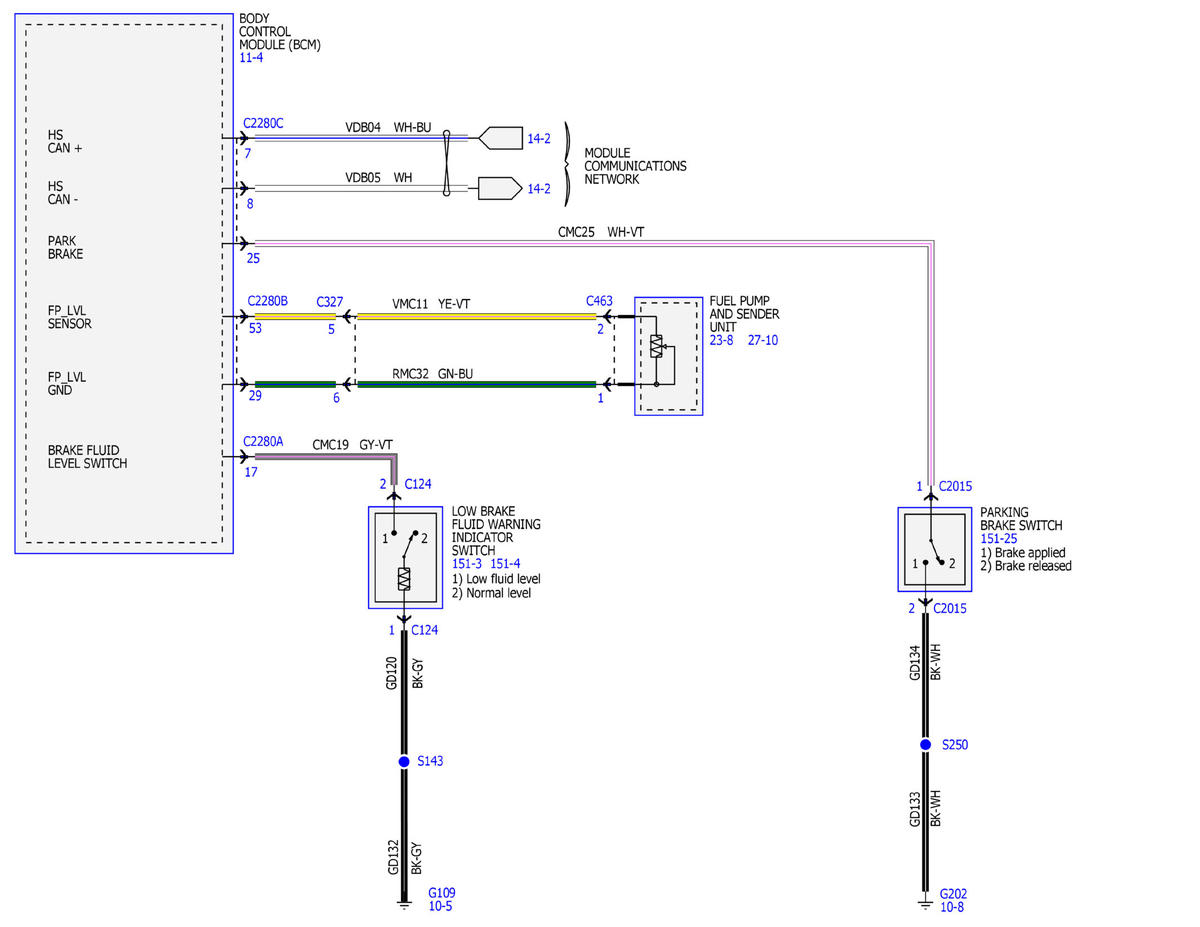

Fig 1: Instrument Cluster Wiring Diagram (1 of 6)
GFDWR19714Courtesy of FORD MOTOR COMPANY

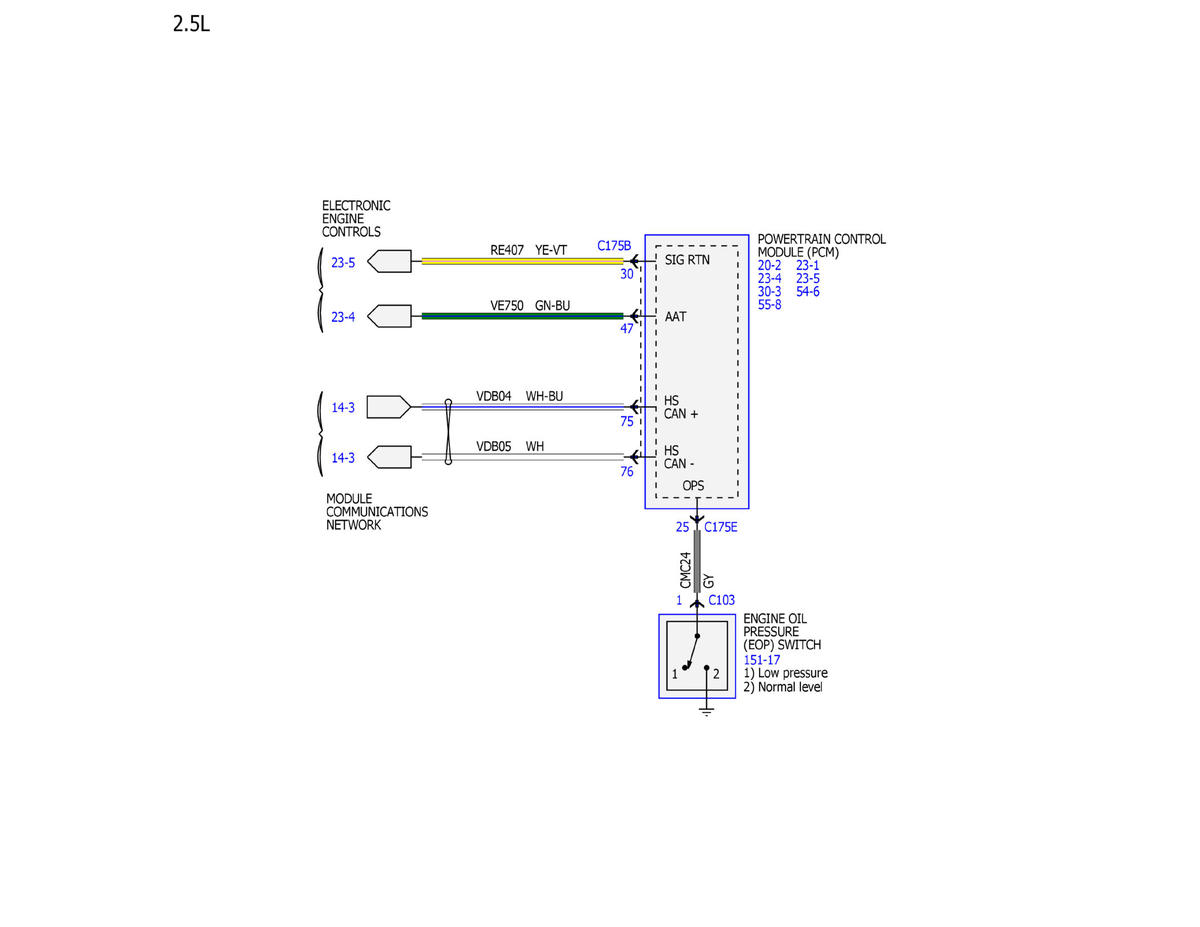

Fig 2: Instrument Cluster Wiring Diagram (2 of 6)
GFDWR19715Courtesy of FORD MOTOR COMPANY

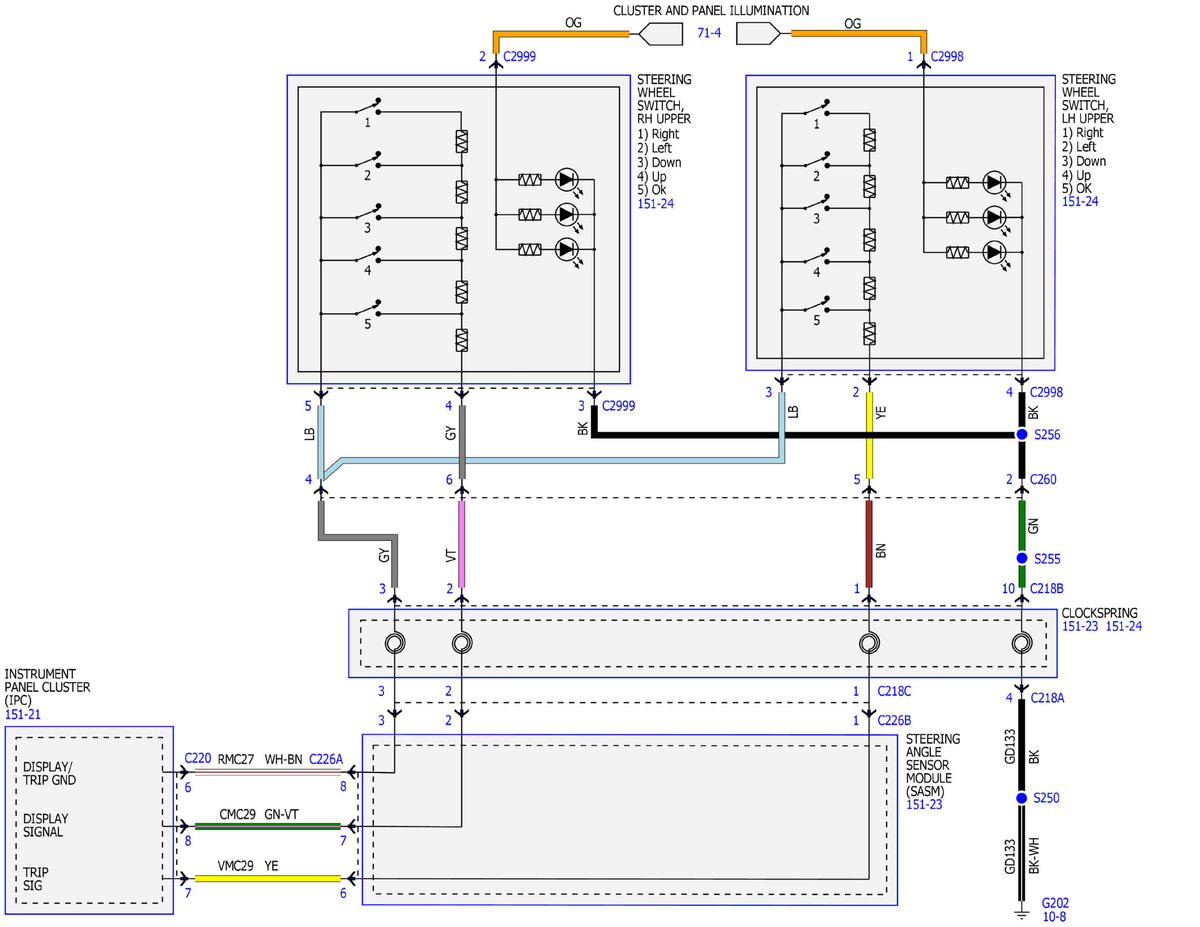

Fig 3: Instrument Cluster Wiring Diagram (3 of 6)
GFDWR19716Courtesy of FORD MOTOR COMPANY

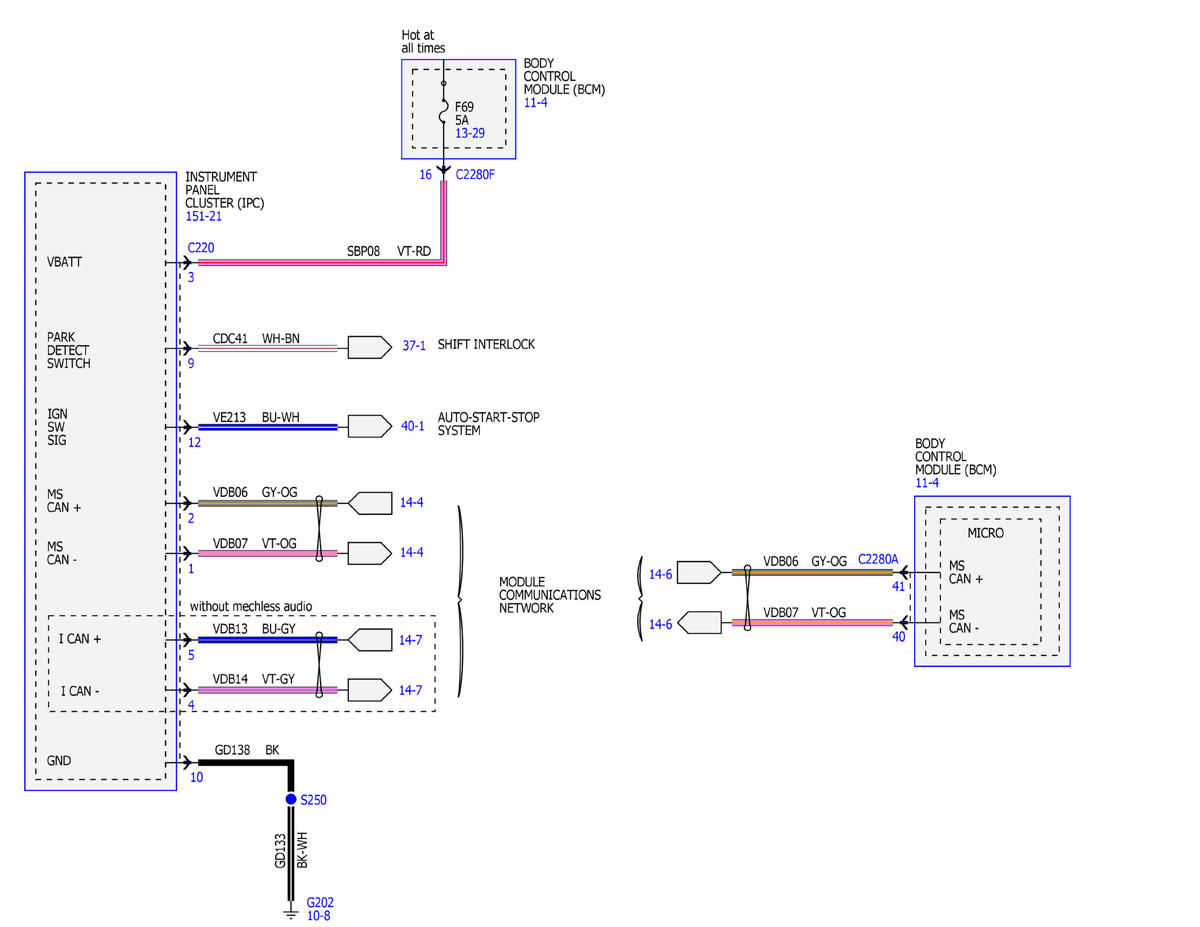

Fig 4: Instrument Cluster Wiring Diagram (4 of 6)
GFDWR19717Courtesy of FORD MOTOR COMPANY

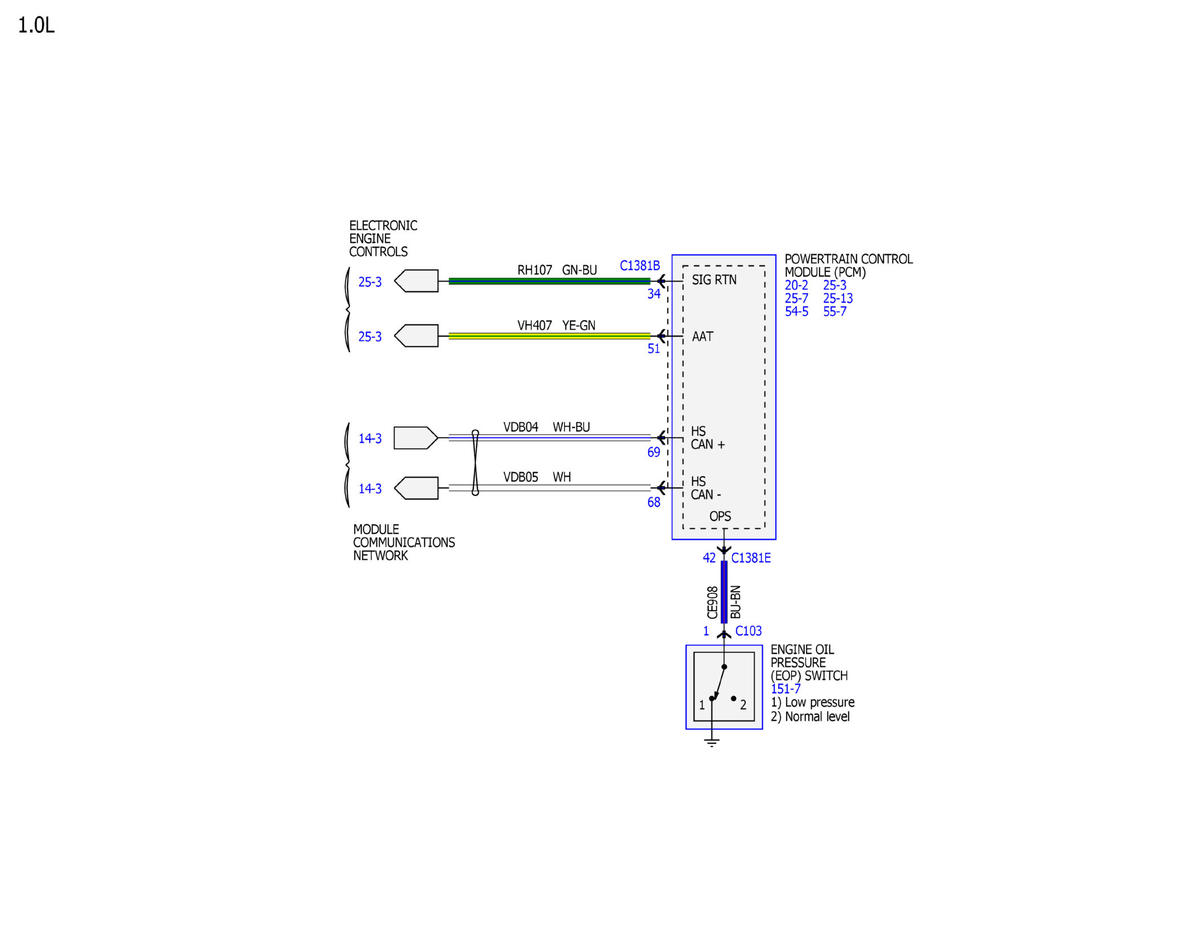

Fig 5: Instrument Cluster Wiring Diagram (5 of 6)
GFDWR19718Courtesy of FORD MOTOR COMPANY
Fig 6: Instrument Cluster Wiring Diagram (6 of 6)
GFDWR19719Courtesy of FORD MOTOR COMPANY
