Heated Window

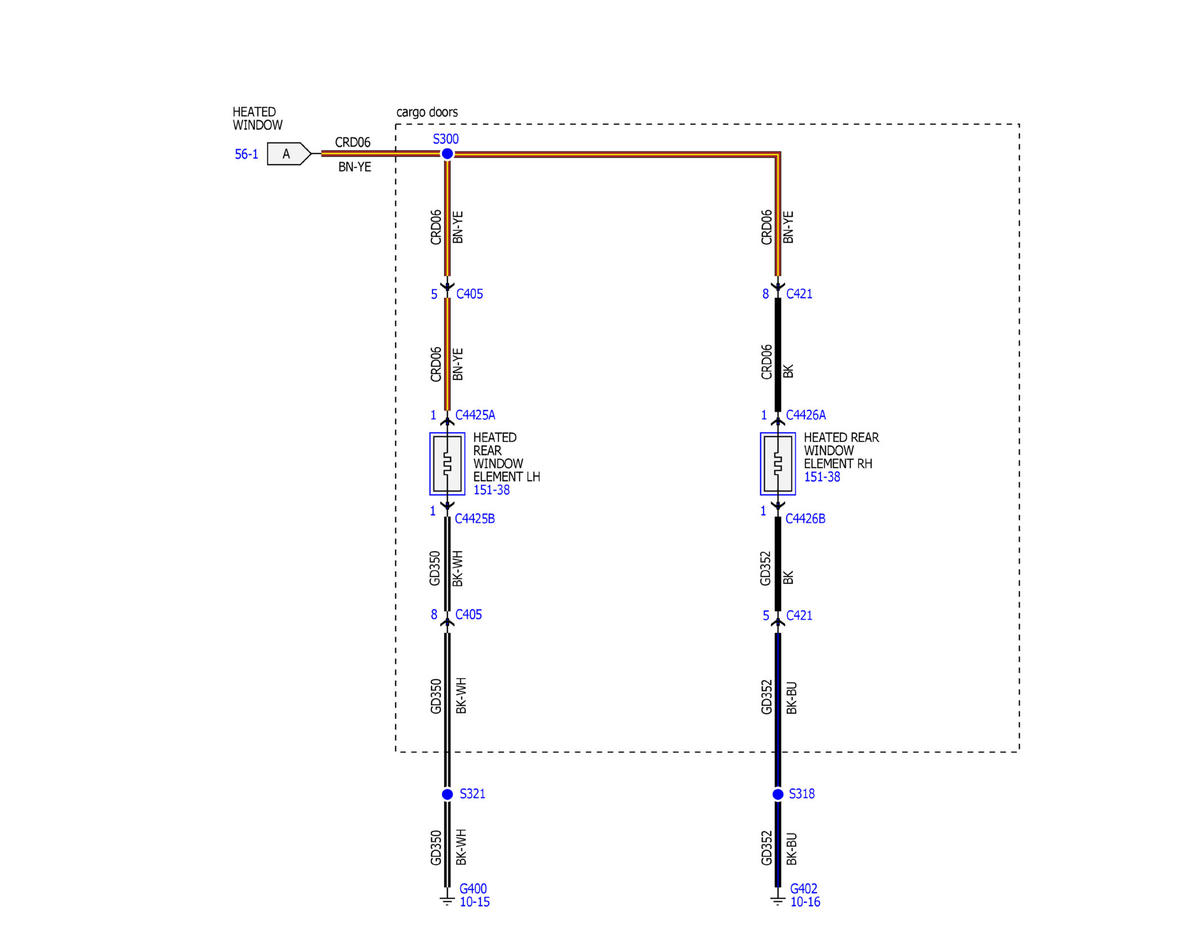

Fig 1: Heated Window Wiring Diagram (1 of 4)
GFDWR19708Courtesy of FORD MOTOR COMPANY

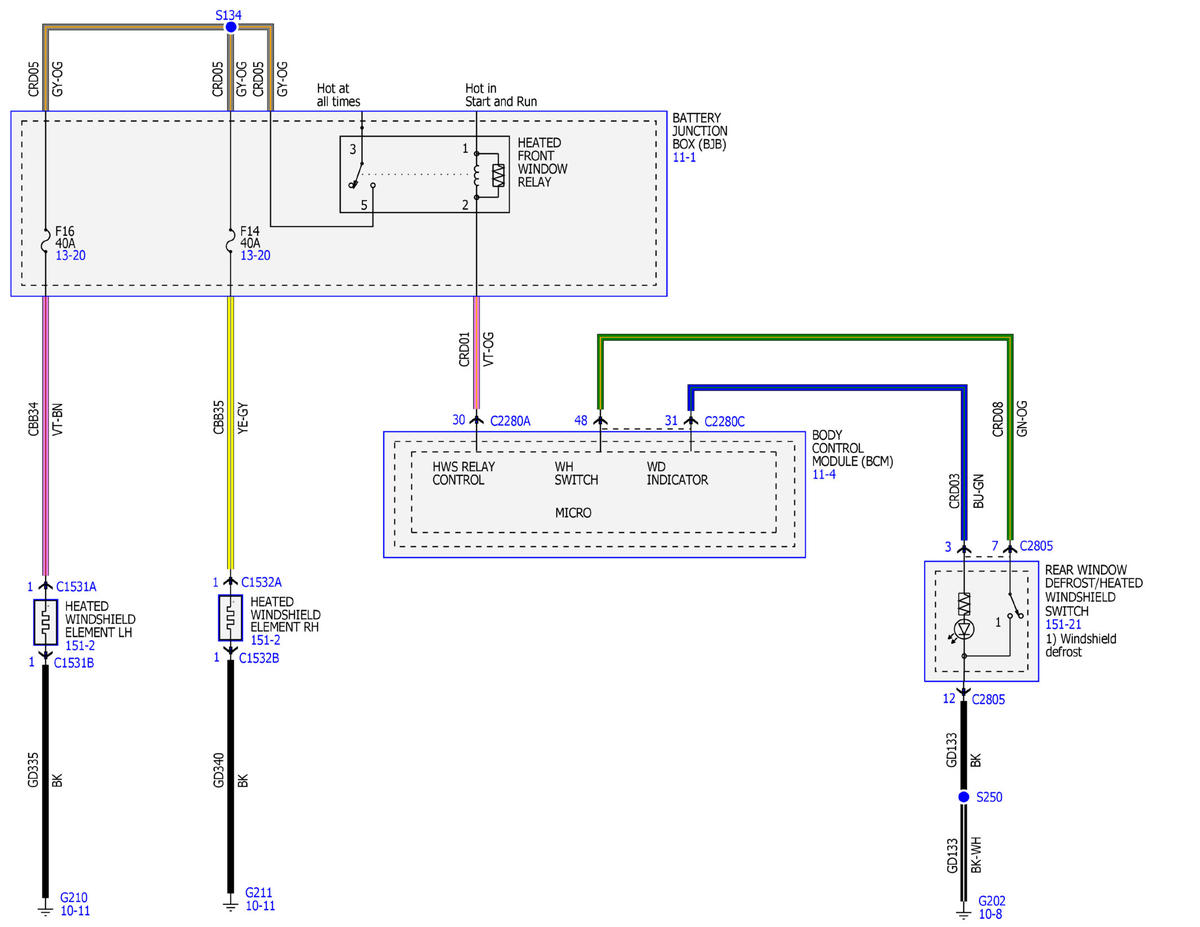

Fig 2: Heated Window Wiring Diagram (2 of 4)
GFDWR19709Courtesy of FORD MOTOR COMPANY

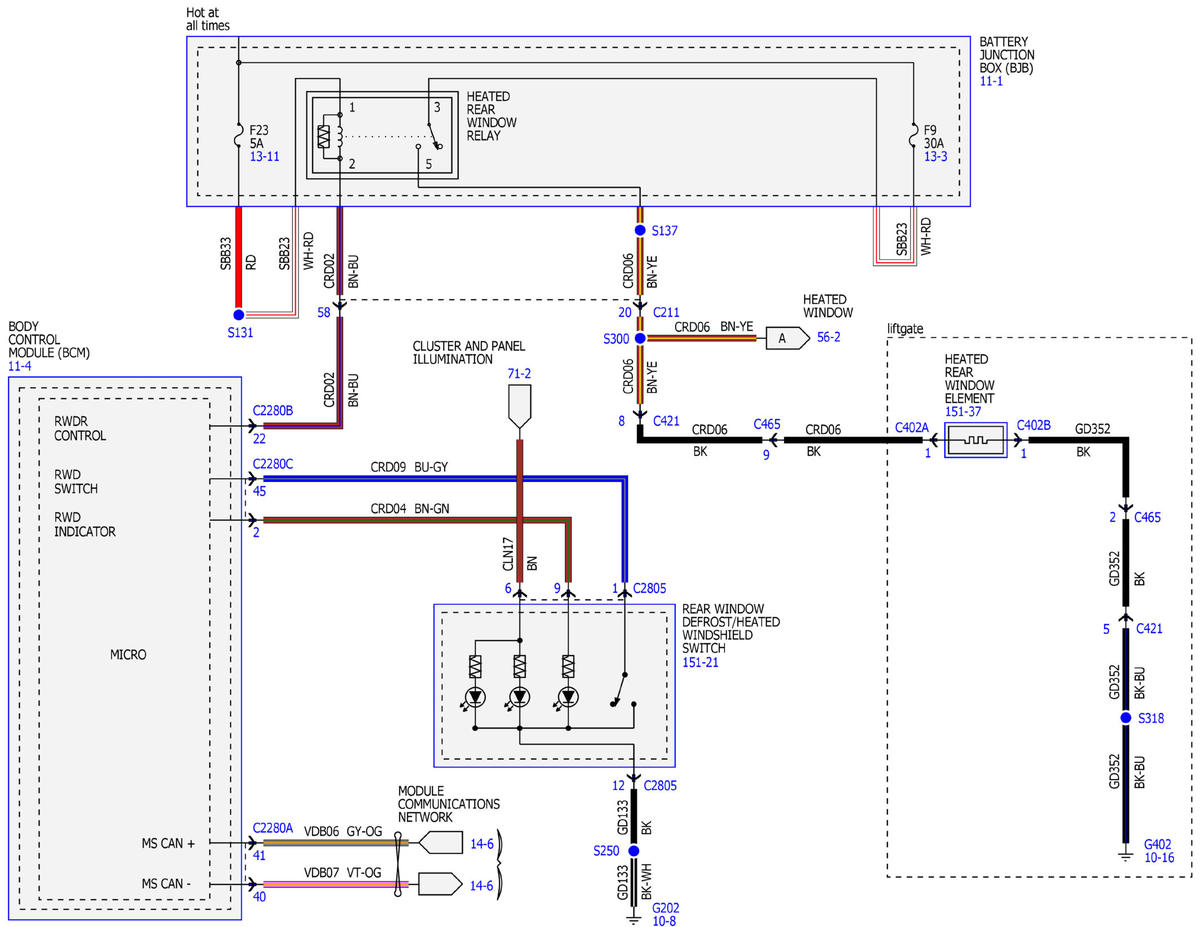

Fig 3: Heated Window Wiring Diagram (3 of 4)
GFDWR19710Courtesy of FORD MOTOR COMPANY

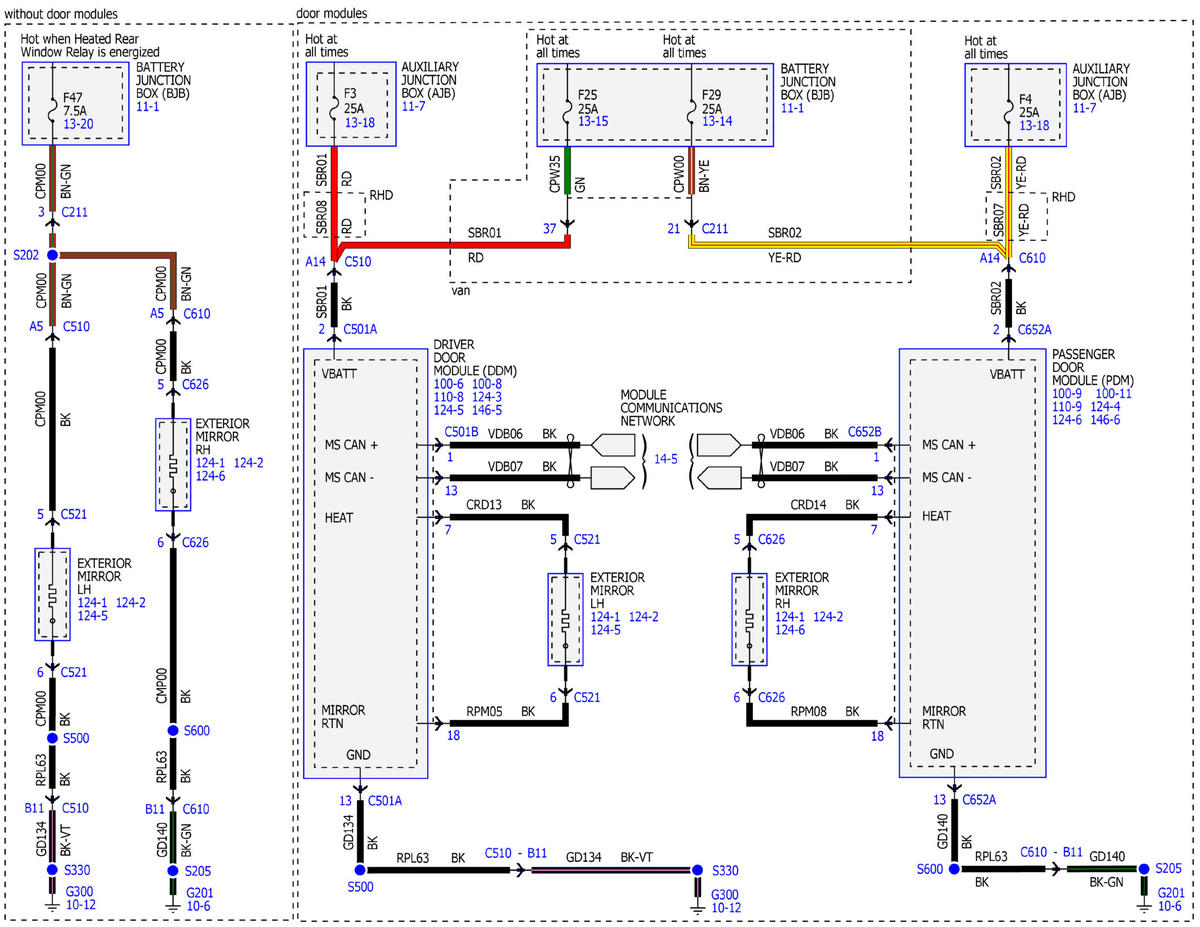

Fig 4: Heated Window Wiring Diagram (4 of 4)
GFDWR19711Courtesy of FORD MOTOR COMPANY
