Ford Work Solutions
Ford Work Solutions

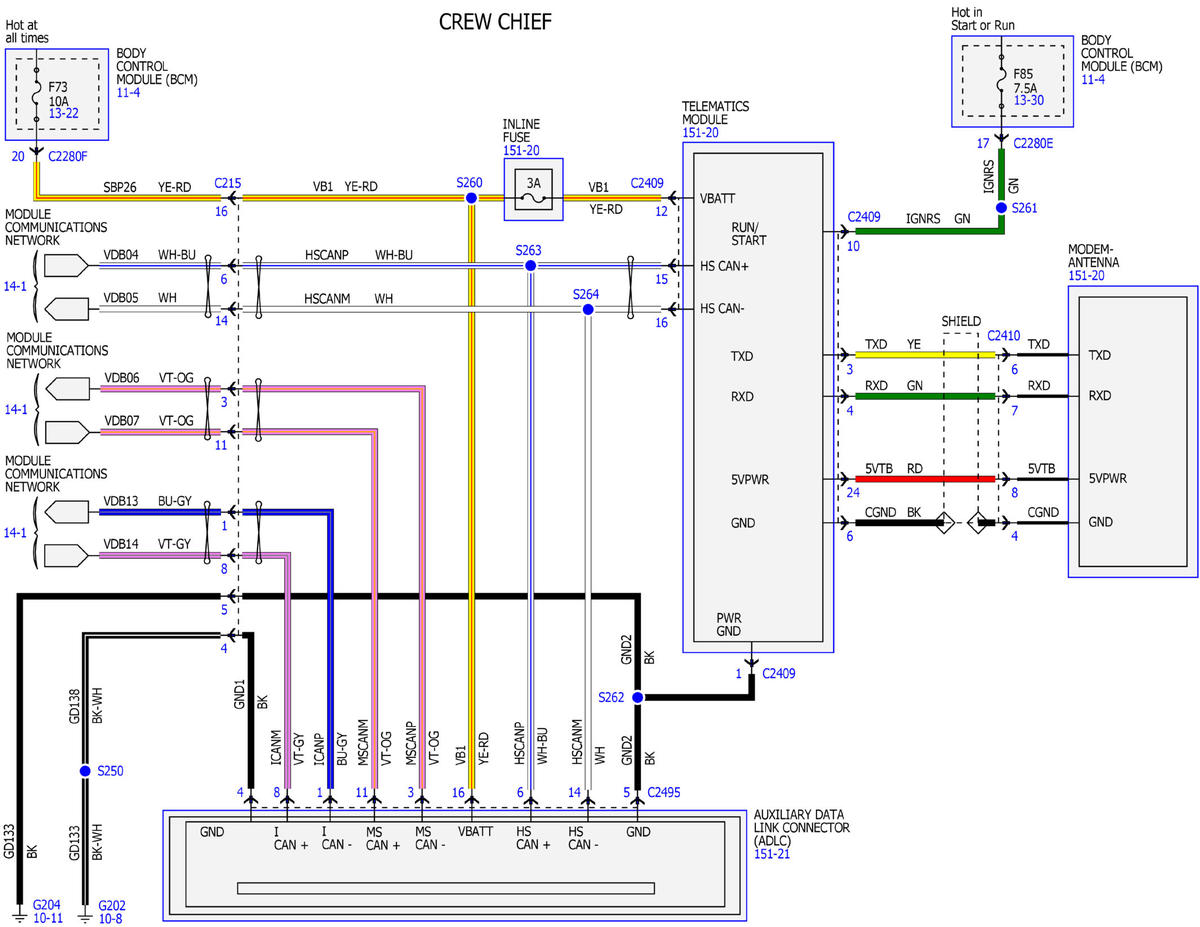

Fig 1: Ford Work Solutions Wiring Diagram
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
