Customer Access

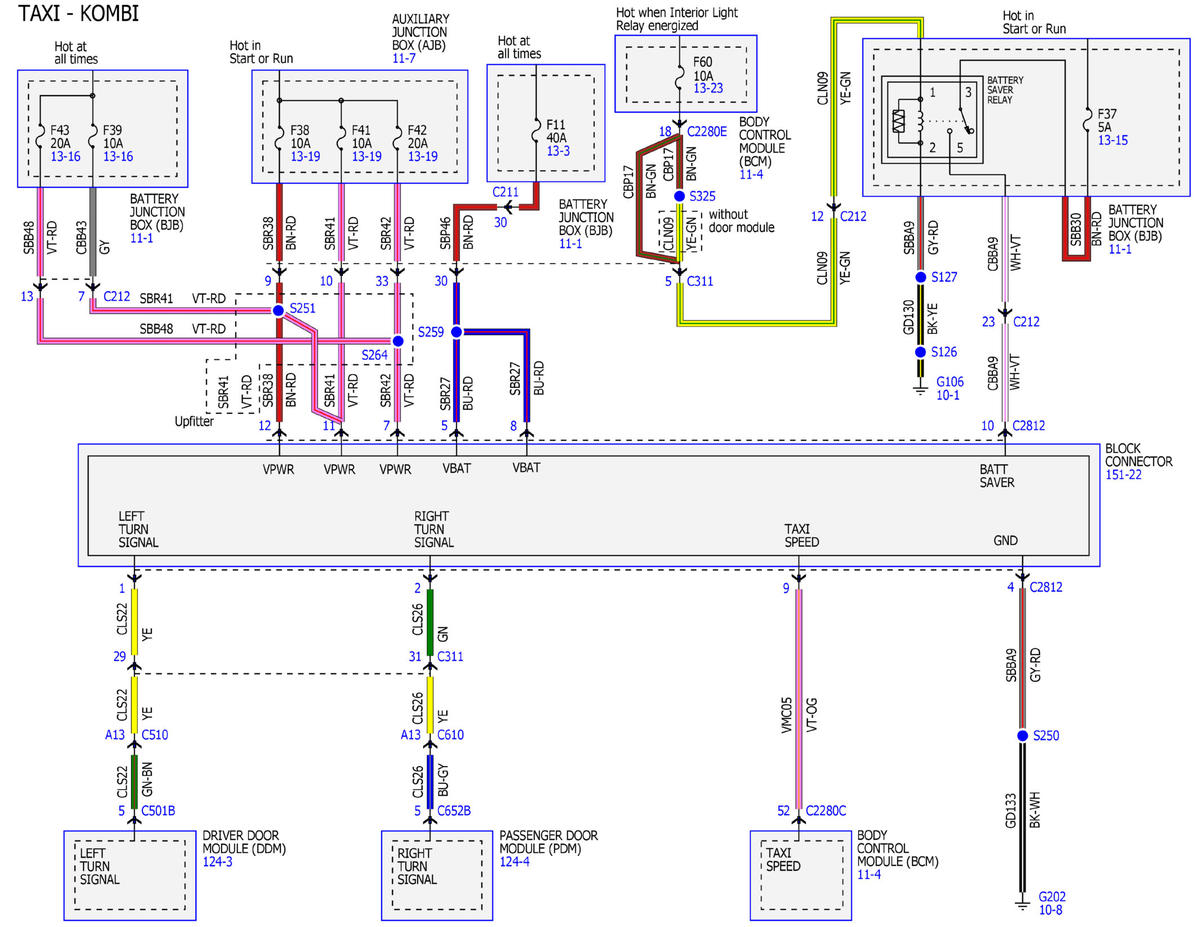

Fig 1: Customer Access Wiring Diagram (1 of 4)
GFDWR19635Courtesy of FORD MOTOR COMPANY

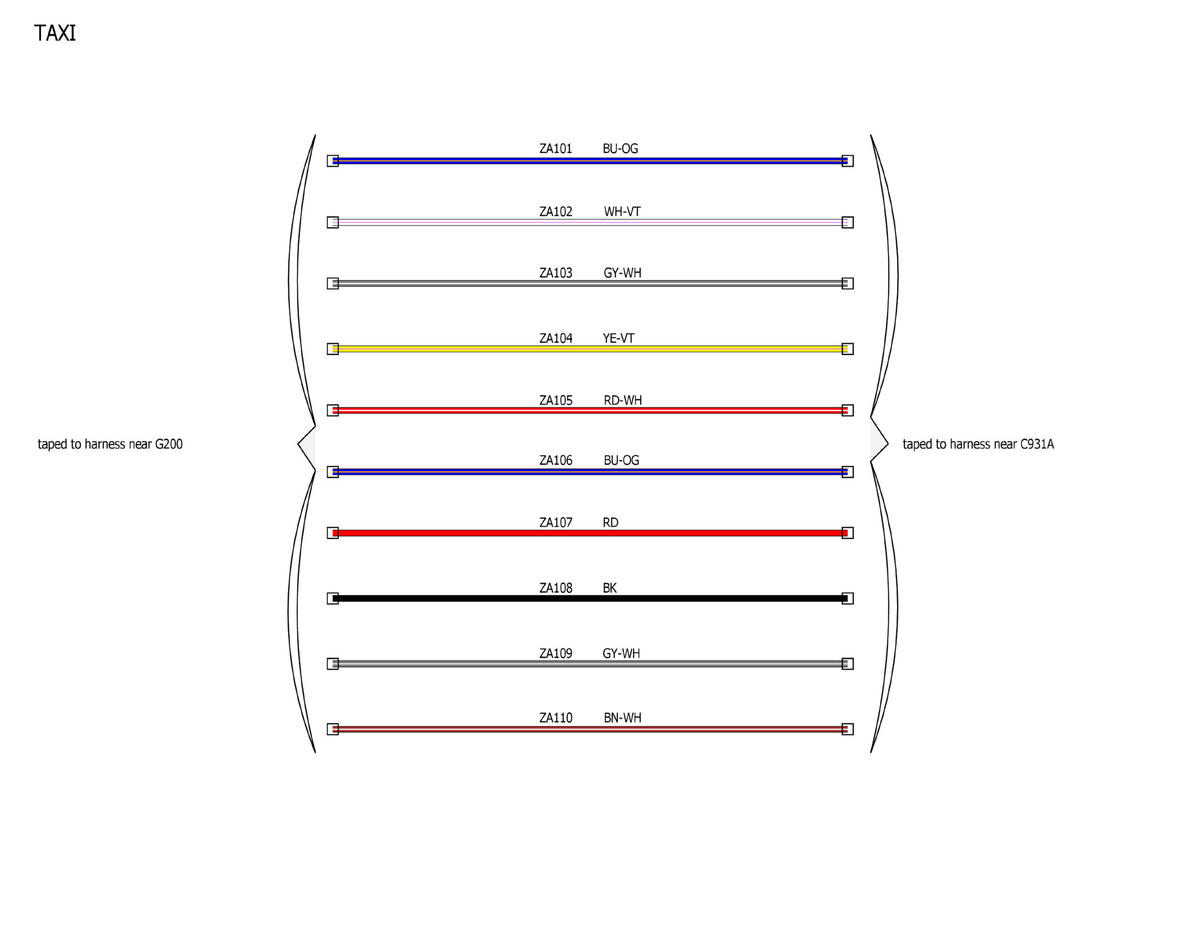

Fig 2: Customer Access Wiring Diagram (2 of 4)
GFDWR19636Courtesy of FORD MOTOR COMPANY

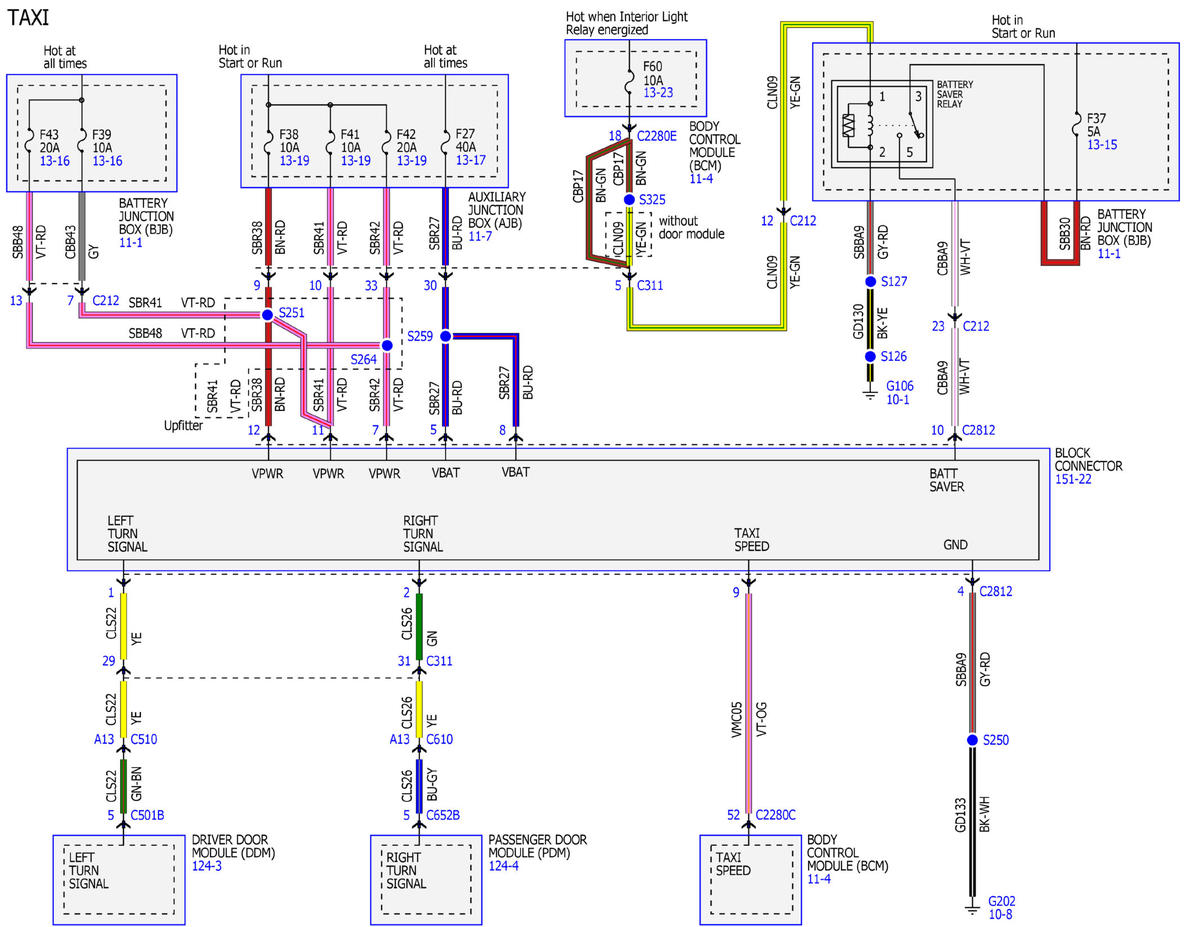

Fig 3: Customer Access Wiring Diagram (3 of 4)
GFDWR19637Courtesy of FORD MOTOR COMPANY

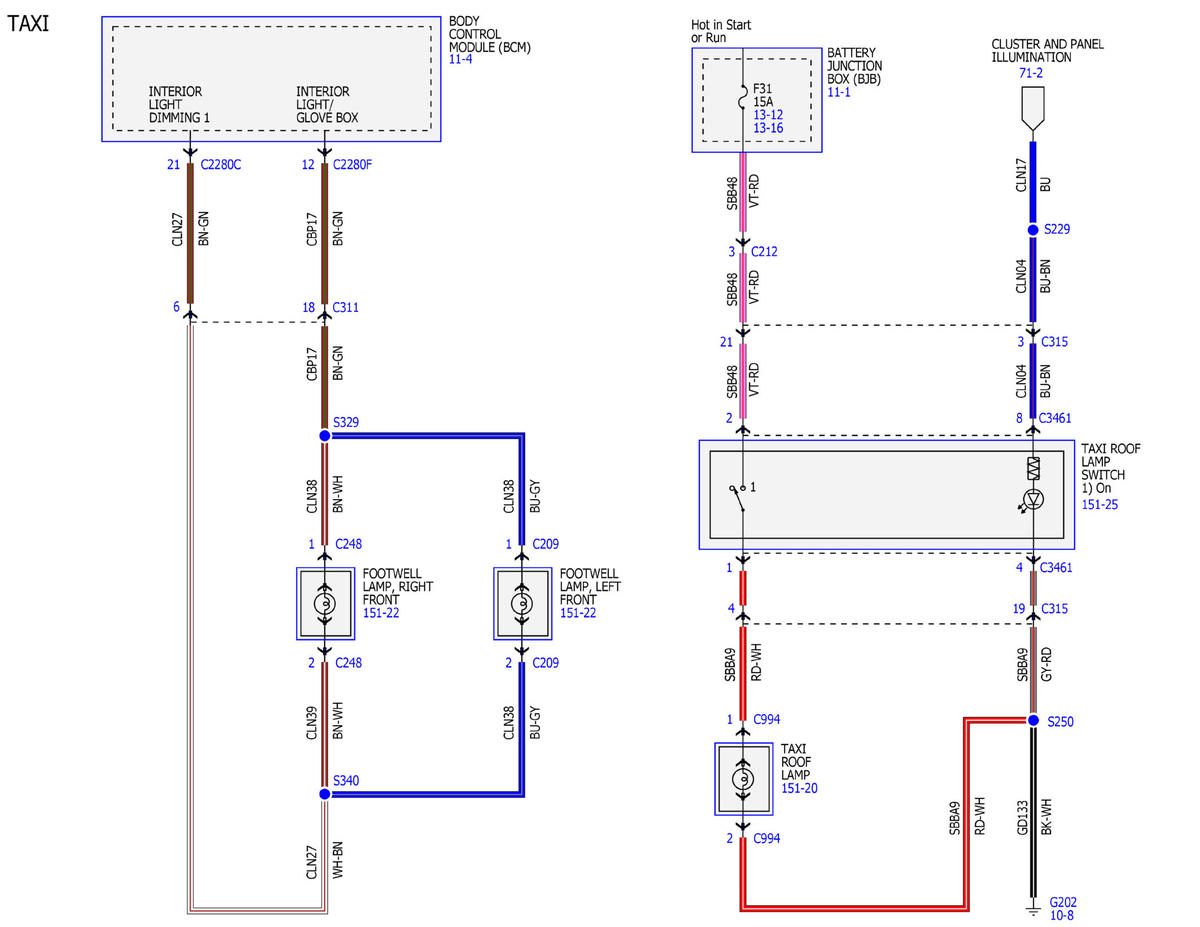

Fig 4: Customer Access Wiring Diagram (4 of 4)
GFDWR19638Courtesy of FORD MOTOR COMPANY
