Cruise Control
Cruise Control

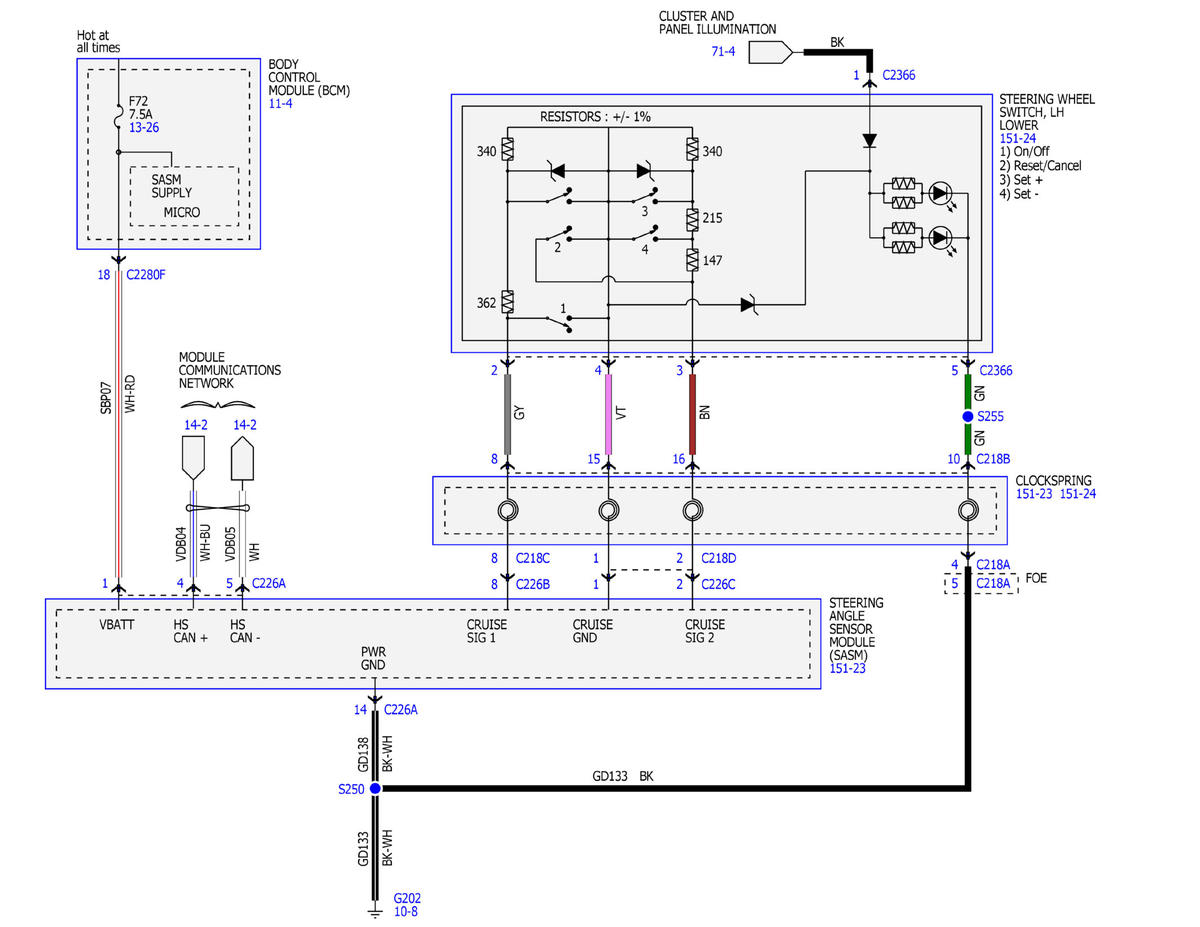

Fig 1: Cruise Control Wiring Diagram
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
