Climate Controlled Seats

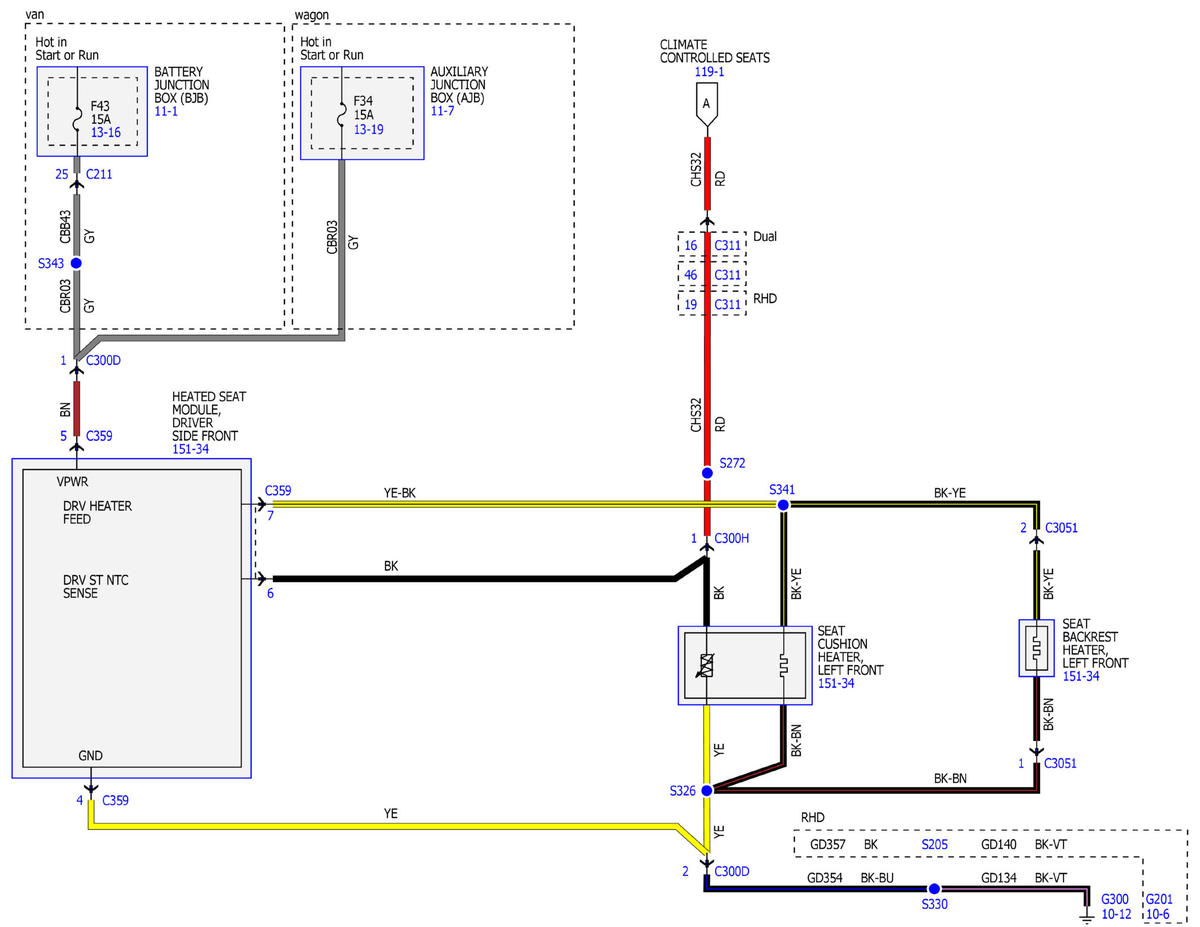

Fig 1: Climate Controlled Seats Wiring Diagram (1 of 3)
GFDWR19622Courtesy of FORD MOTOR COMPANY

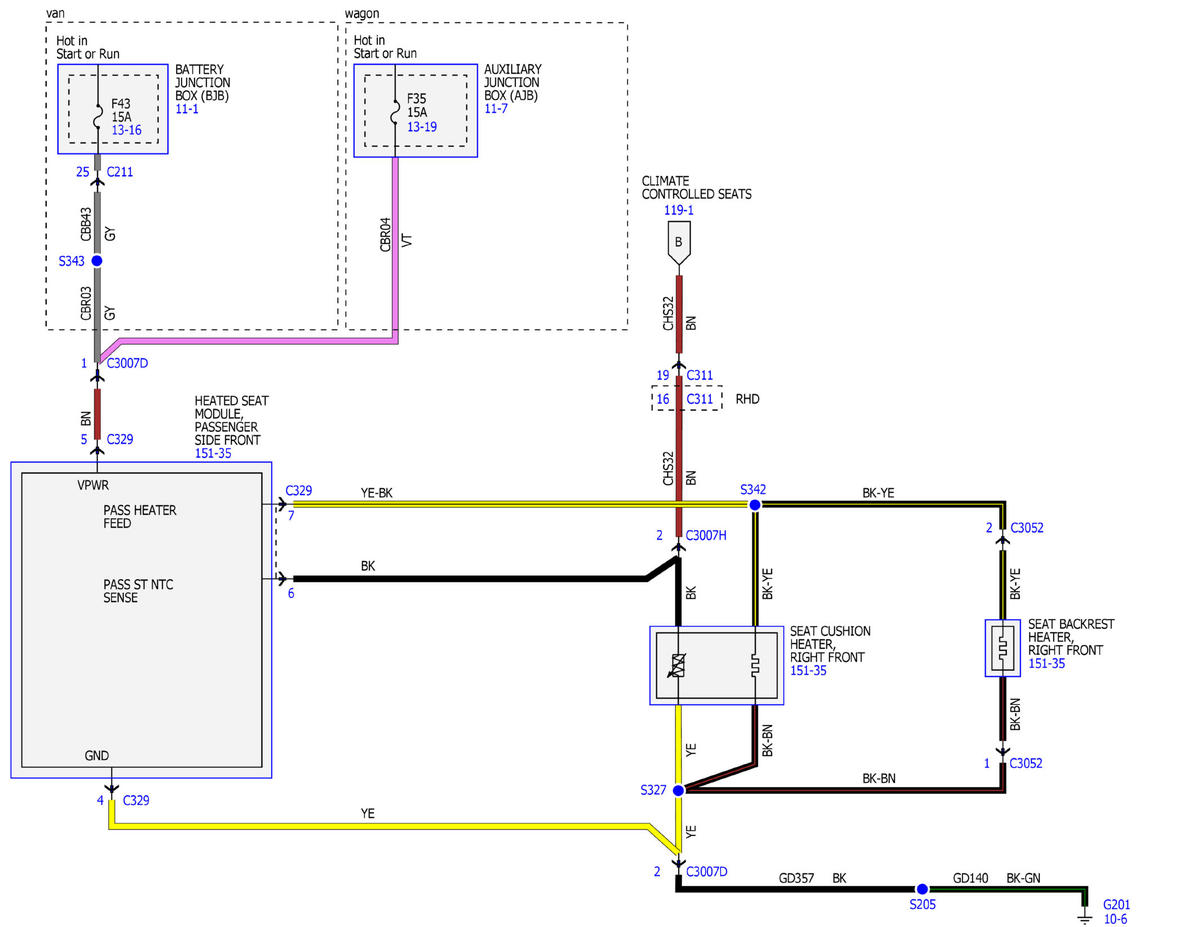

Fig 2: Climate Controlled Seats Wiring Diagram (2 of 3)
GFDWR19623Courtesy of FORD MOTOR COMPANY

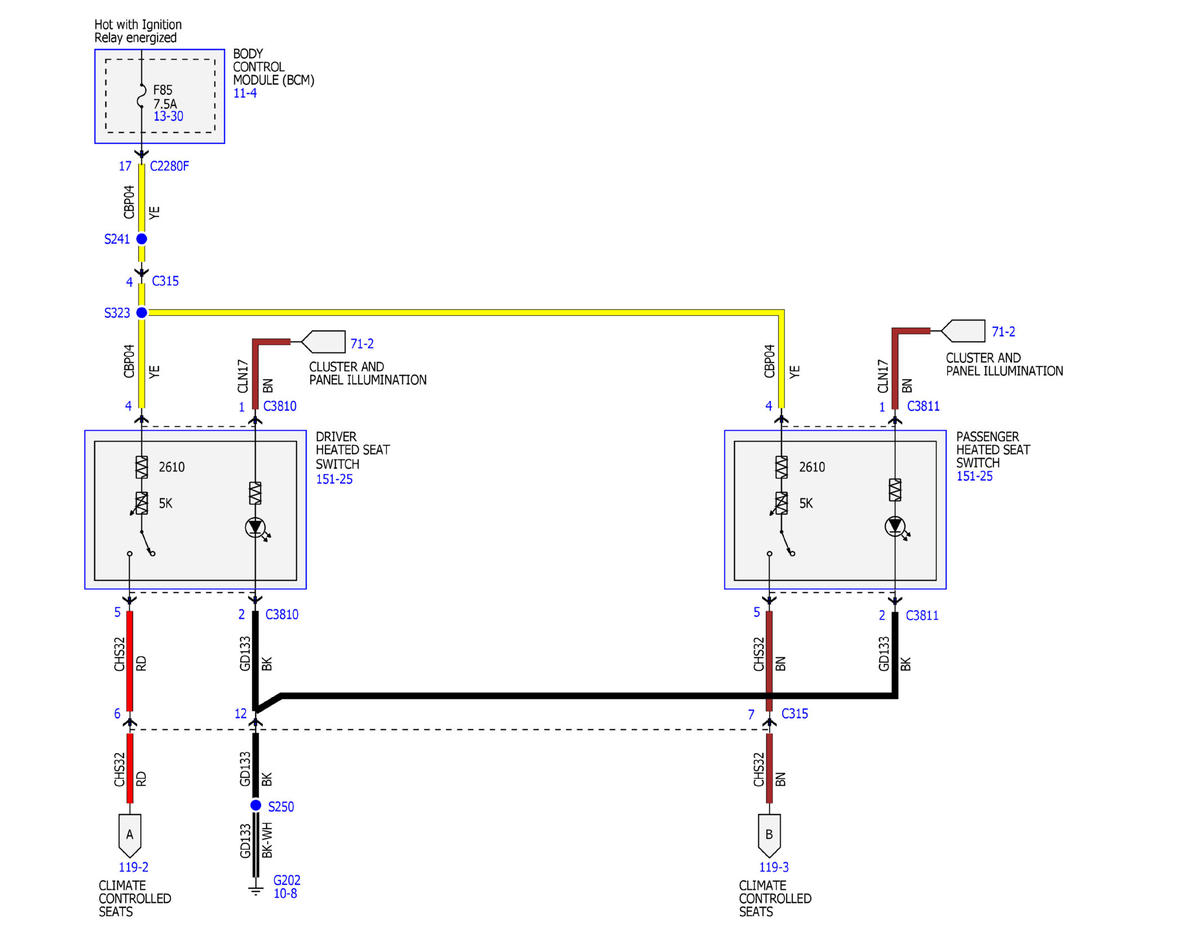

Fig 3: Climate Controlled Seats Wiring Diagram (3 of 3)
GFDWR19624Courtesy of FORD MOTOR COMPANY
