Fuse And Relay Location

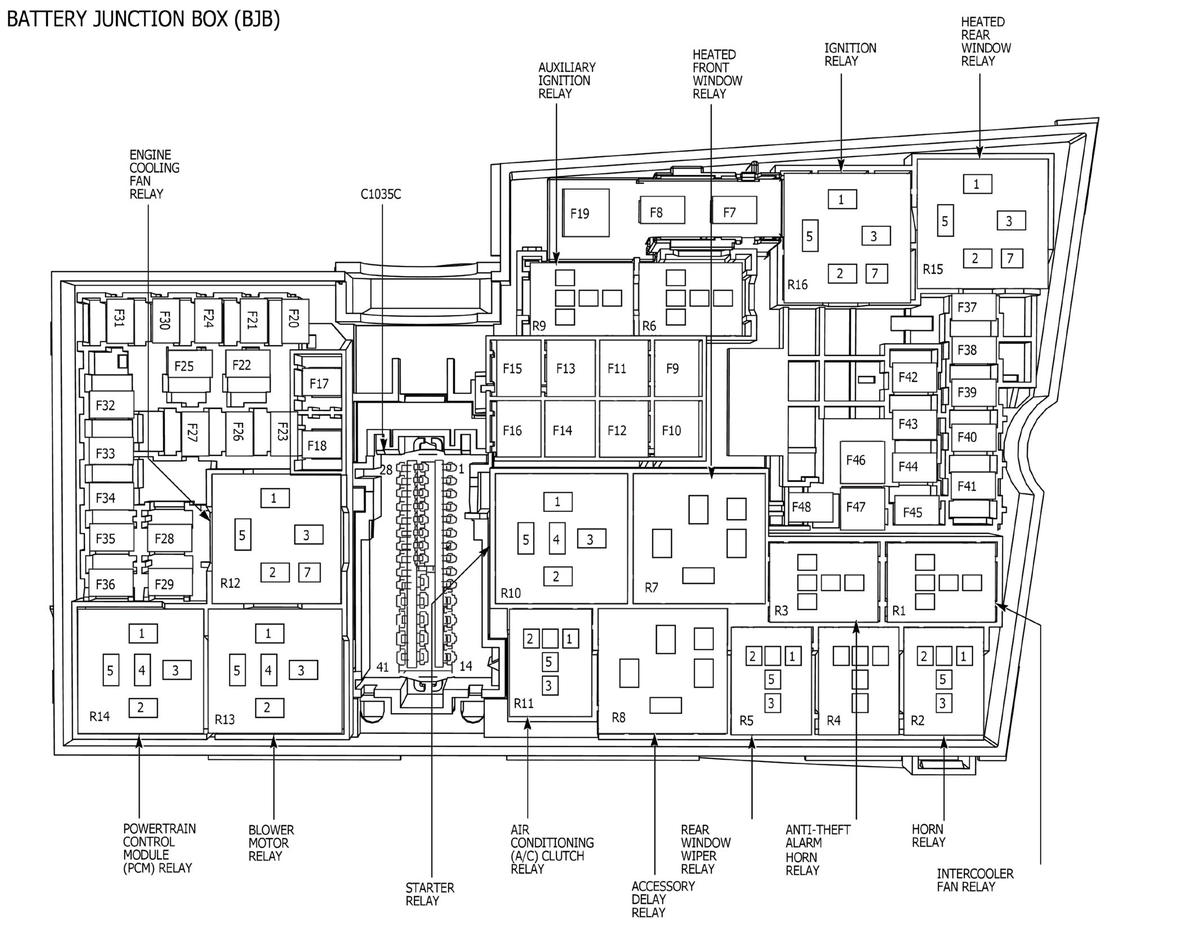

Fig 1: Battery Junction Box Component Location
GFDWR19560Courtesy of FORD MOTOR COMPANY

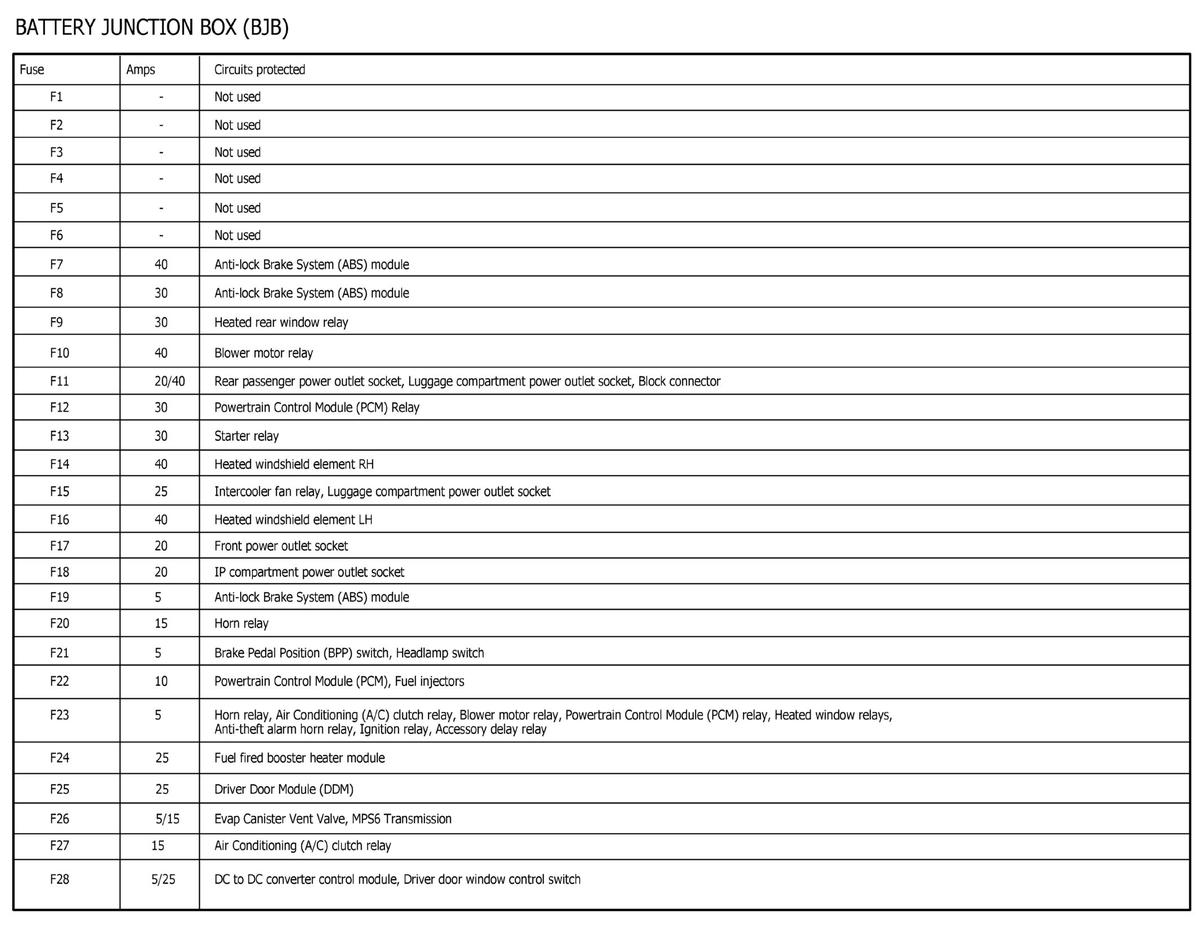

Fig 2: Battery Junction Box Component Location Legend (1 of 2)
GFDWR19554Courtesy of FORD MOTOR COMPANY

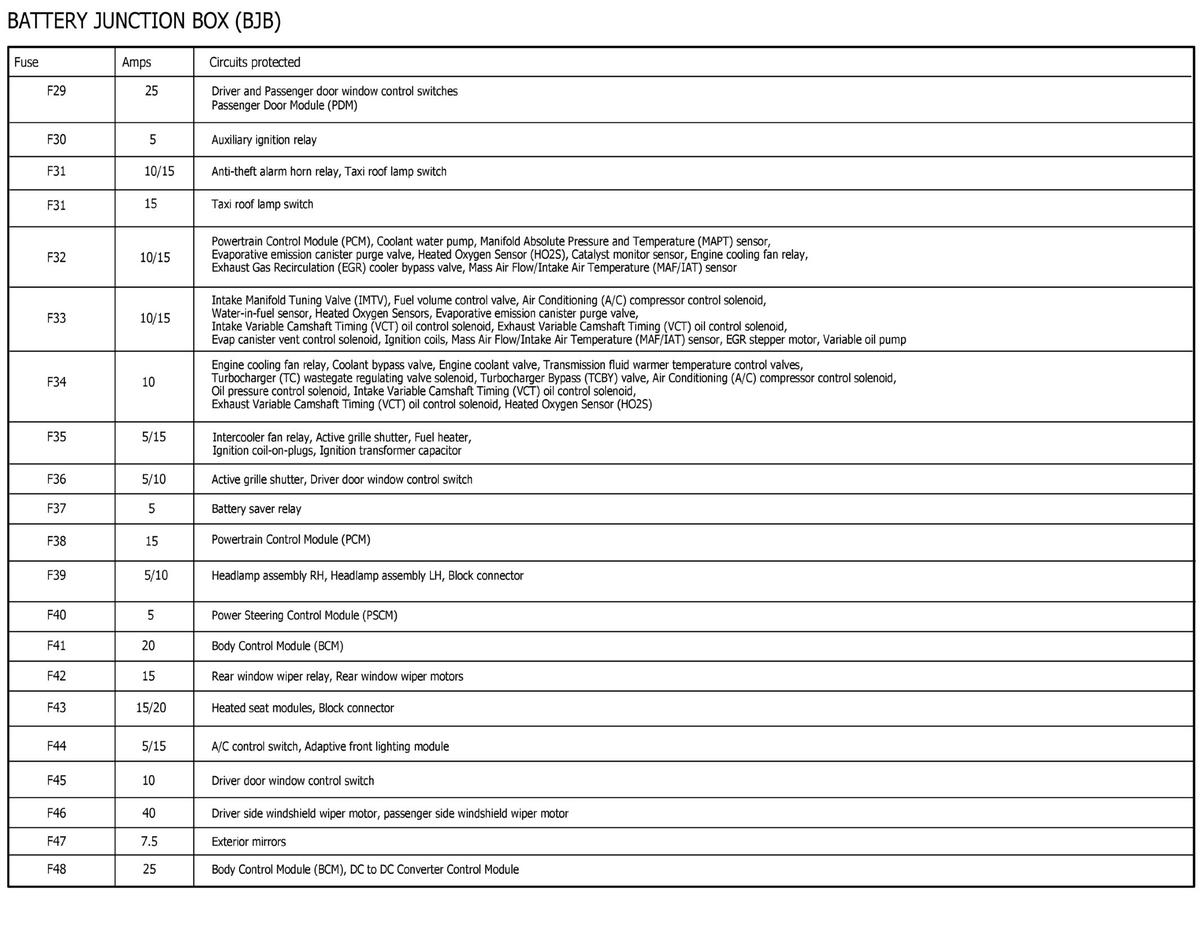

Fig 3: Battery Junction Box Component Location Legend (2 of 2)
GFDWR19558Courtesy of FORD MOTOR COMPANY

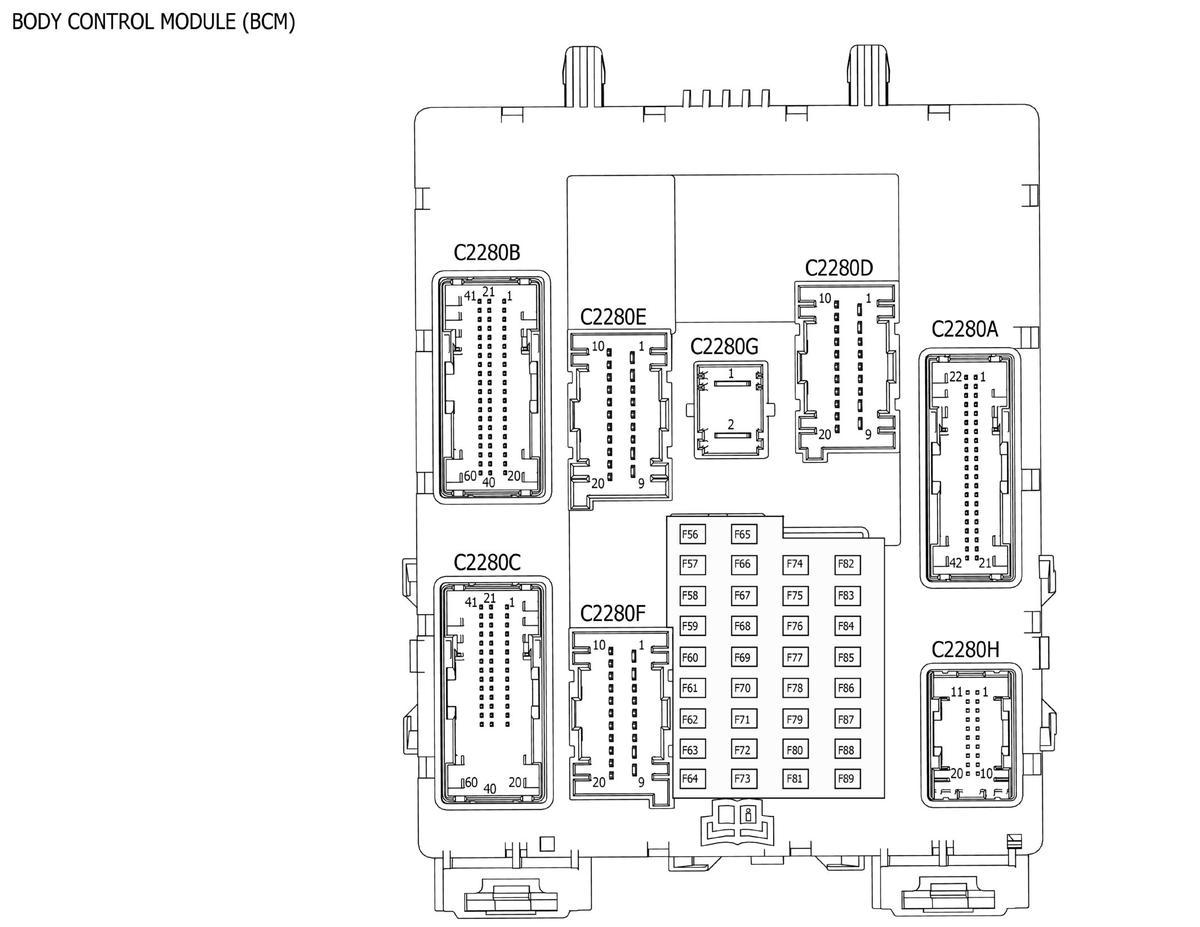

Fig 4: Body Control Module Component Location
GFDWR19561Courtesy of FORD MOTOR COMPANY

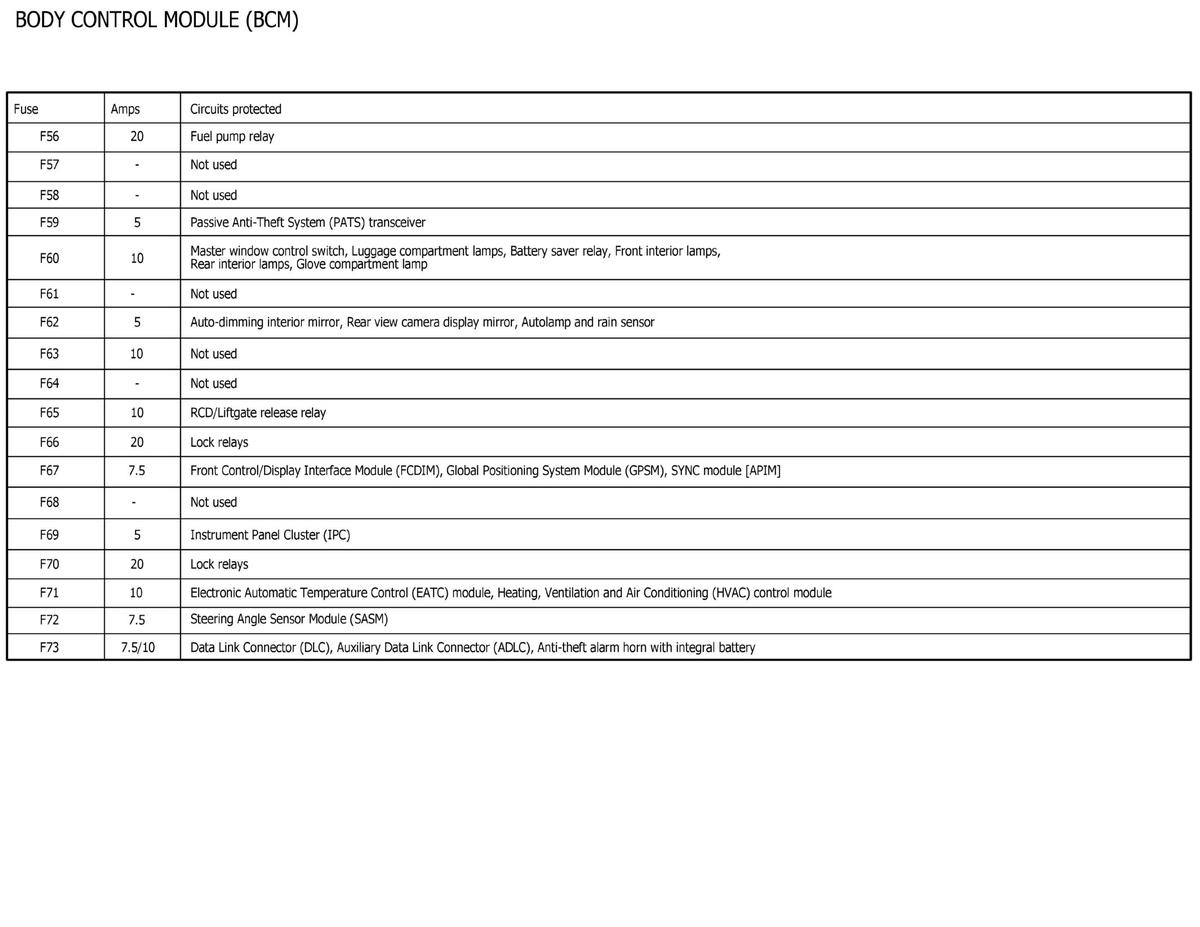

Fig 5: Body Control Module Component Location Legend (1 of 2)
GFDWR19562Courtesy of FORD MOTOR COMPANY

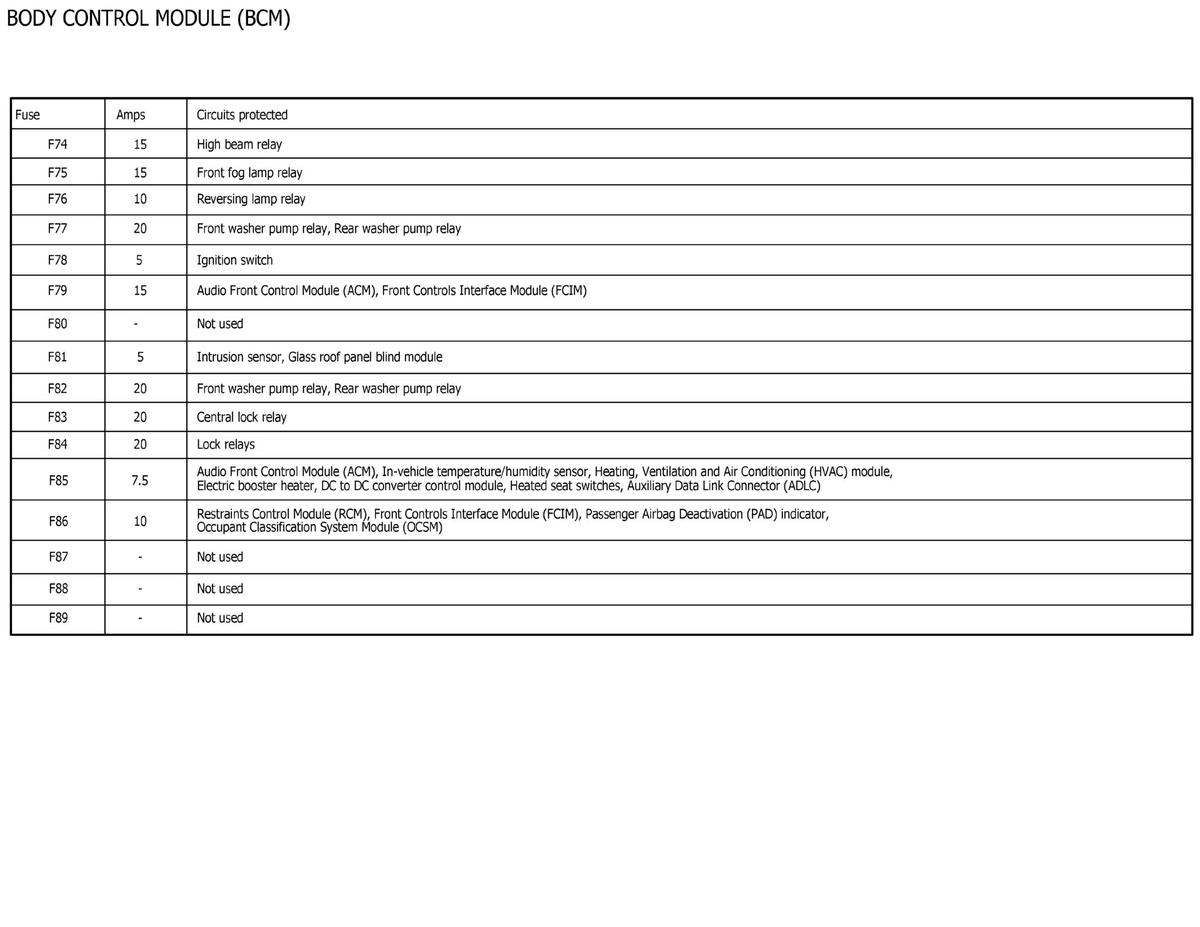

Fig 6: Body Control Module Component Location Legend (2 of 2)
GFDWR19559Courtesy of FORD MOTOR COMPANY

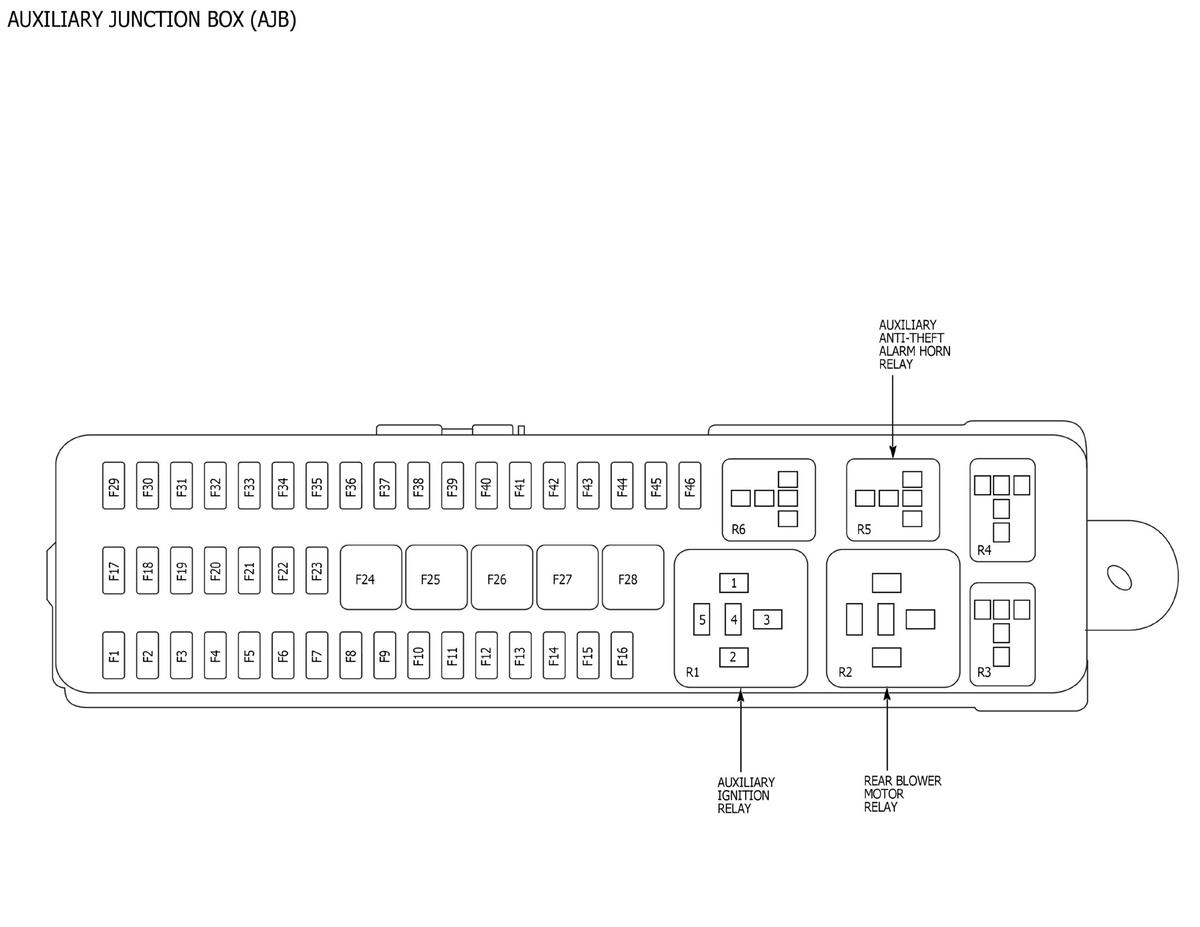

Fig 7: Auxiliary Junction Box Component Location
GFDWR19557Courtesy of FORD MOTOR COMPANY

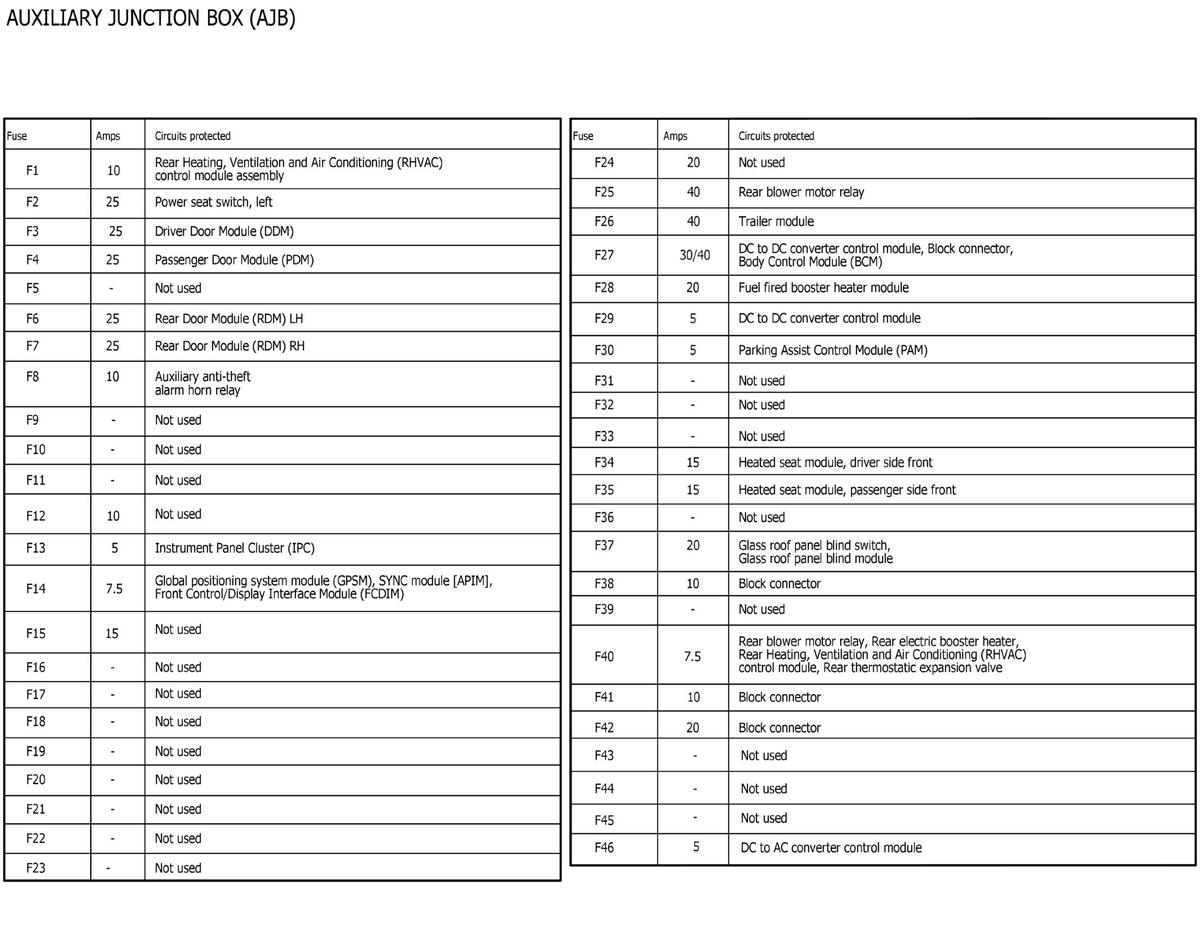

Fig 8: Auxiliary Junction Box Component Location Legend
GFDWR19556Courtesy of FORD MOTOR COMPANY

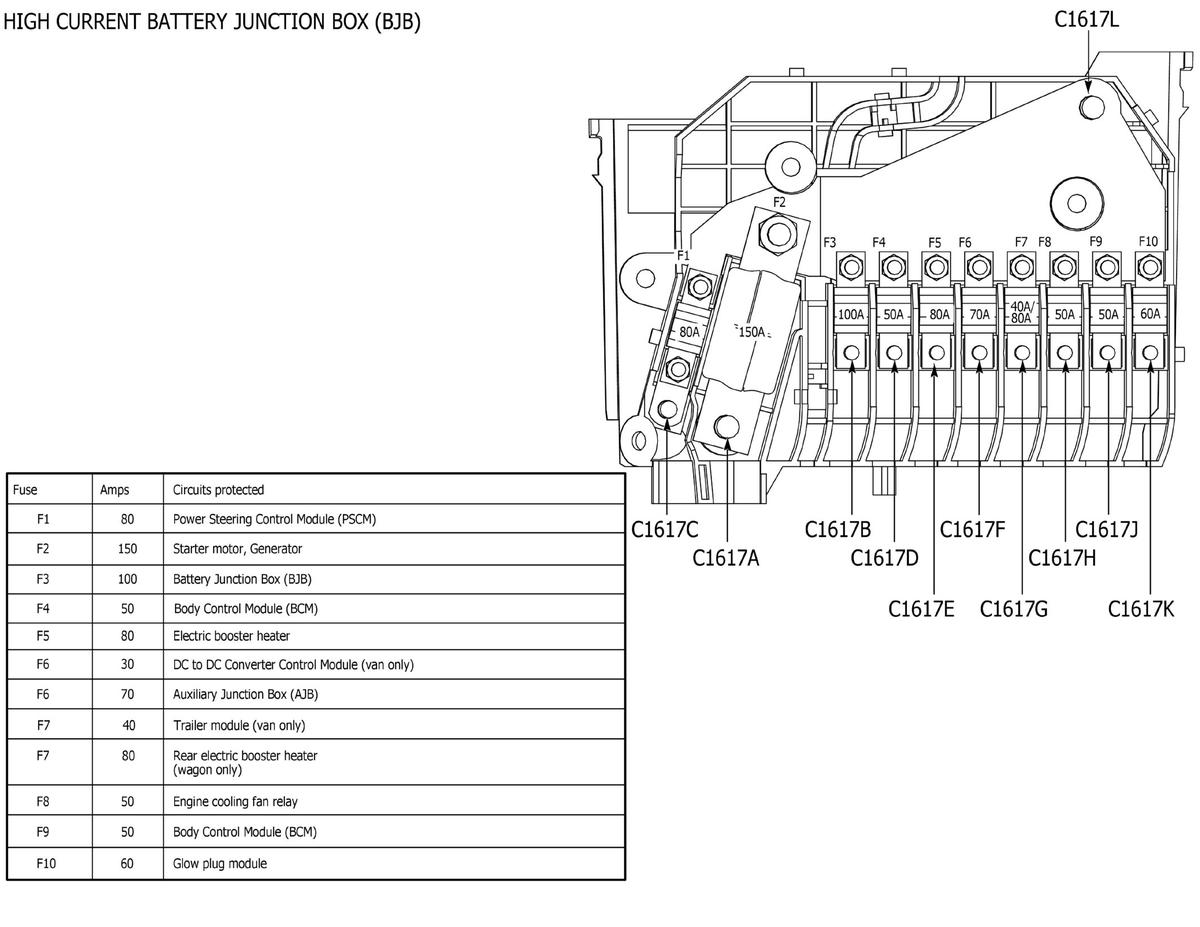

Fig 9: High Current Battery Junction Box Component Location and Legend
GFDWR19555Courtesy of FORD MOTOR COMPANY
