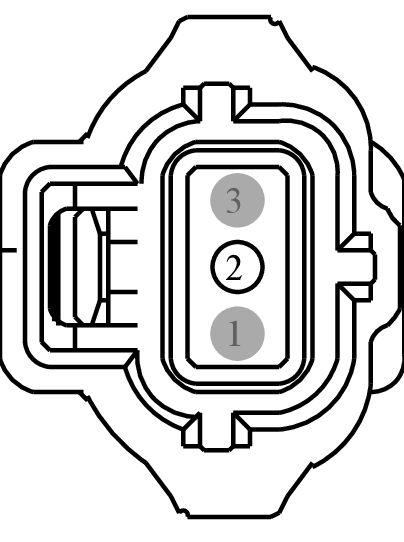

Connector End View (C1104B) - GENERATOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1104B	GENERATOR	GN	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	VDN06 (WH-GN)	20	CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1	N/A
3	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-118

Courtesy of FORD MOTOR COMPANY

Service Part Number:

1U2Z-14S411-TA

Gauge:

14

Pin material:

Tin

Cavities:

3

Vehicle Uses:

• Alternator
• Sensor - Brake Fluid Level
• Sensor - Throttle Position
