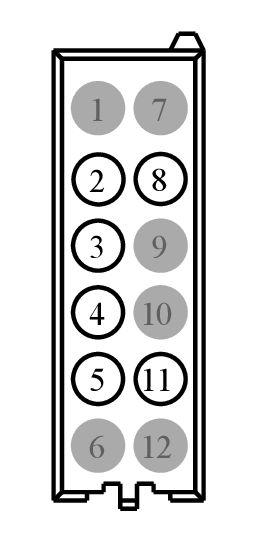

Connector End View (C9071C) - PARKING ASSIST CONTROL MODULE (PAM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C9071C	PARKING ASSIST CONTROL MODULE (PAM)	BK	14014	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	VMP16 (YE-GY)	22	SENSOR - PARKING AID # REAR # (RIGHT INNER)	N/A
3	VMP14 (WH-OG)	22	SENSOR - PARKING AID # REAR # (LEFT INNER)	N/A
4	VMP17 (YE-OG)	22	SENSOR - PARKING AID # REAR # (RIGHT OUTER)	N/A
5	VMP15 (YE-GN)	22	SENSOR - PARKING AID # REAR # (LEFT OUTER)	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	RMP07 (GN-WH)	22	CTRL MOD. - PARKING AID # SENSORS REAR	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	LMP07 (BU-WH)	22	CTRL MOD. - PARKING AID # SENSORS REAR	N/A
12	*	*	Not Used	N/A

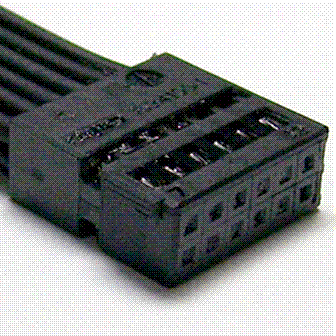

Available Pigtail Kits

Pigtail Kit Part Number WPT-1178

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-YA

Gauge:

18

Pin material:

Tin (greased)

Cavities:

12

Vehicle Uses:

• Module - Reverse Park Aid (RPA)
