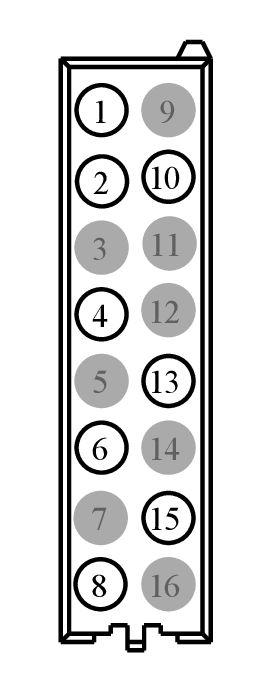

Connector End View (C9071A) - PARKING ASSIST CONTROL MODULE (PAM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C9071A	PARKING ASSIST CONTROL MODULE (PAM)	BK	14014	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBB37 (WH)	20	FUSE - 37 OR CIRCUIT BREAKER	N/A
1	CBR01 (BU)	20	FUSE - 1 OR CIRCUIT BREAKER	wagon	N/A
1	CBR11 (BU-RD)	20	FUSE - 11 OR CIRCUIT BREAKER	Start-Stop	N/A
2	RMP09 (BU-GN)	22	CTRL MOD. - PARKING AID # SOUNDER REAR	N/A
3	*	*	Not Used	N/A
4	CMP18 (GN-BN)	22	SWITCH - PARKING AID	N/A
5	*	*	Not Used	N/A
6	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	N/A
7	*	*	Not Used	N/A
8	GD351 (BK-GN)	22	GROUND - TUNNEL # 2ND STUD	N/A
8	GD351 (BK-GN)	20	GROUND - TUNNEL # 2ND STUD	N/A
9	*	*	Not Used	N/A
10	CMP09 (BN-BU)	22	CTRL MOD. - PARKING AID # SOUNDER REAR	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	CMP02 (GN-BU)	22	CTRL MOD. - PARKING AID # INDICATOR STATUS	N/A
14	*	*	Not Used	N/A
15	VDB05 (WH)	22	CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL)	N/A
16	*	*	Not Used	N/A

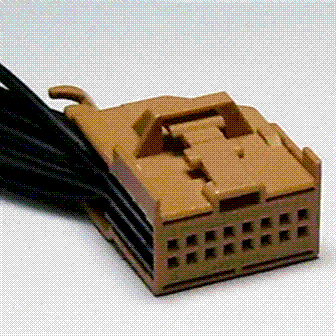

Available Pigtail Kits

Pigtail Kit Part Number WPT-1189

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-ZA

Gauge:

18

Pin material:

Tin (greased)

Cavities:

16

Vehicle Uses:

• Module - Reverse Park Aid (RPA)
