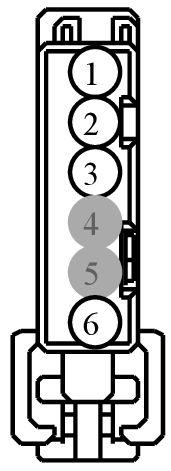

Connector End View (C9050) - GLOBAL POSITIONING SYSTEM MODULE (GPMS)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C9050	GLOBAL POSITIONING SYSTEM MODULE (GPMS)	BK	14G540/14335	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VMN03 (OG-WH)	22	ANTENNA - GPS (GLOBAL POSITIONING SYSTEM)	N/A
1	VMN03 (BN-RD)	22	ANTENNA - GPS (GLOBAL POSITIONING SYSTEM)	without city safe	N/A
2	VDB06 (GY-OG)	22	CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL)	N/A
3	VDB07 (VT-OG)	22	CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL)	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	GD338 (BK-WH)	22	GROUND - TUNNEL # 2ND STUD	N/A
