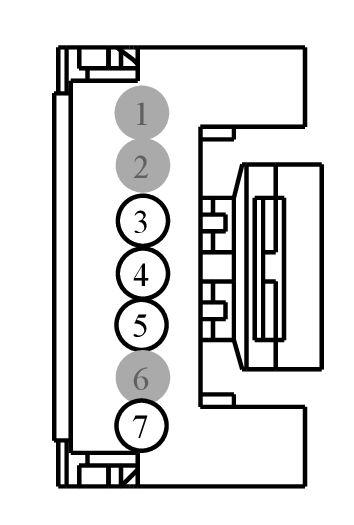

Connector End View (C9024) - FRONT DISTANCE SENSING MODULE (FDSM)
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C9024 | FRONT DISTANCE SENSING MODULE (FDSM) | GN | 14G540 | part# N/A | Not Available |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * | * | Not Used | N/A | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | VDB05 (WH) | 22 | CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL) | N/A | ||||
| 4 | VDB04 (WH-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | N/A | ||||
| 5 | CMF01 (WH-BU) | 22 | CTRL MOD. - FORWARD SENSING # INDICATOR 1 | N/A | ||||
| 6 | * | * | Not Used | N/A | ||||
| 7 | GD113 (BK) | 22 | GROUND - COWL RIGHT | N/A | ||||
