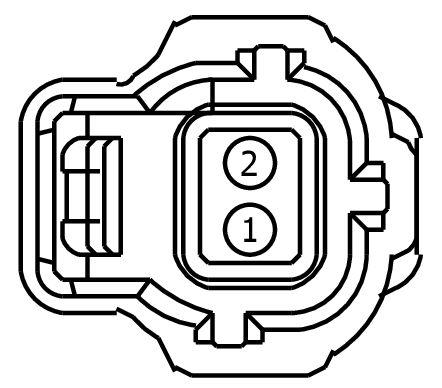

Connector End View (C4116) - EVAP CANISTER VENT CONTROL SOLENOID

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4116	EVAP CANISTER VENT CONTROL SOLENOID	BK	14A411	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RH107 (BK-YE)	20	CTRL MOD. - AMBIENT TEMP. SENSOR	N/A
2	CE112 (GN-VT)	20	CTRL MOD. - POWERTRAIN # CANISTER PURGE PUMP CONTROL (CANPPC)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-322

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-JZA

Gauge:

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Resistor - Daytime Running Lamp (DRL)
• Sensor - Air Charge Temperature
• Sensor - Brake Pressure
• Solenoid - Canister Vent
• Switch - Brake Pressure
