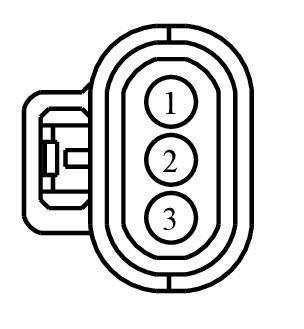

Connector End View (C4012) - REAR INNER PARKINGAID SENSOR RH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4012	REAR INNER PARKINGAID SENSOR RH	BK	15K868	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LMP07 (BU-WH)	22	CTRL MOD. - PARKING AID # SENSORS REAR	N/A
2	VMP16 (YE-GY)	22	SENSOR - PARKING AID # REAR # (RIGHT INNER)	N/A
3	RMP07 (GN-WH)	22	CTRL MOD. - PARKING AID # SENSORS REAR	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1287

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-YA

Gauge:

18

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Coil - Ignition
• Sensor - Front Park Aid (FPA)
• Sensor - Reverse Park Aide (RPA)
