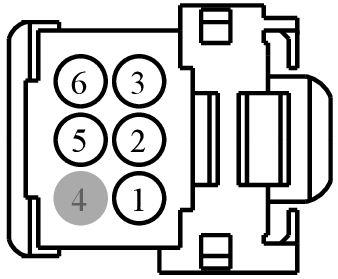

Connector End View (C3462) - A/C CONTROL SWITCH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3462	A/C CONTROL SWITCH	BK	15K857	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CH425 (GN-BN)	22	SWITCH - AC HEAD PRESSURE (ACPSW)	N/A
2	CH411 (BK-WH)	22	RESISTOR - REAR BLOWER # SPEED 2	N/A
3	CH425 (BN)	22	SWITCH - AC HEAD PRESSURE (ACPSW)	N/A
4	*	*	Not Used	N/A
5	CLN17 (BN)	22	SWITCH - IP/SWITCH ILLUMINATION	N/A
6	CH434 (BN)	22	SWITCH - CLIMATE MODE # AC	N/A

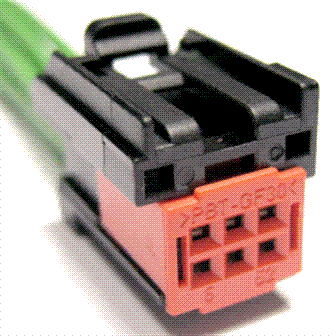

Available Pigtail Kits

Pigtail Kit Part Number WPT-1164

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-JB

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Switch - Deck Lid / Hatch Release
• Switch - Deck Lid / Lift Gate Ajar
• Switch - Hazard Warning
• Switch - Heated Back Light (Rear Defrost)
• Switch - Power Liftgate
• Switch - Reverse Park Aid
• Switch - Start/Stop
• Switch - Sunshade
• Switch - Traction Control
