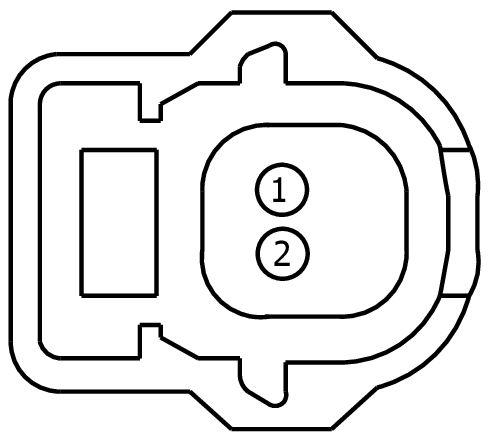

Connector End View (C3248) - LH C-PILLAR SIDE IMPACT SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3248	LH C-PILLAR SIDE IMPACT SENSOR	BK	14014	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR153 (GN-WH)	20	CTRL MOD. - VEHICLE 2	FNA	N/A
1	VR217 (GY-YE)	20	SENSOR - SIDE IMPACT FRONT DRIVER SIDE	FOE	N/A
2	RR131 (VT-GY)	20	CTRL MOD. - SENSOR IMPACT FRONT 2ND OR RIGHT	FOE	N/A
2	RR153 (GY-BU)	20	CTRL MOD. - STEERING COLUMN DEPLOY	FOE	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1314

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-AAC

Gauge:

20

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Sensor - Crash (Engine Compartment)
• Sensor - Seat Track Position
• Sensor - Side Impact
• Solenoid - Down Shift
• Solenoid - Torque Control Coupling
• Valve - Heated PCV
• Valve - Heater Core Shut Off
• Valve - Transmission Fluid Warmer
