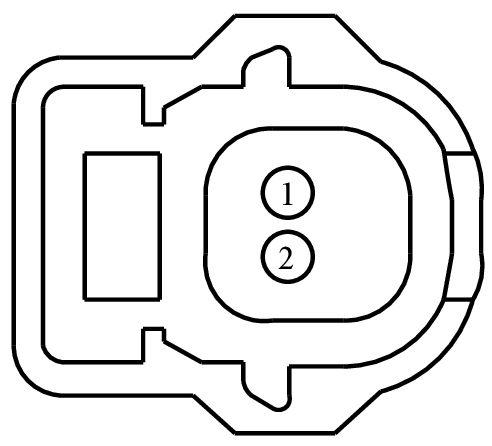

Connector End View (C3211) - LH B-PILLAR SIDE IMPACT SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3211	LH B-PILLAR SIDE IMPACT SENSOR	BK	14014	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9A8T-14474-CA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR153 (GN-WH)	20	CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR (#3) +	RHD	9A8T-14474-CA
1	VR217 (GY-YE)	20	SENSOR - SIDE IMPACT FRONT DRIVER SIDE	LHD	9A8T-14474-CA
2	RR131 (VT-GY)	20	CTRL MOD. - SENSOR SIDE IMPACT FRONT DRIVER SIDE -	LHD	9A8T-14474-CA
2	RR153 (GY-BU)	20	CTRL MOD. - OCCUPANT CLASSIFICATION WEIGHT SENSOR (#3) -	RHD	9A8T-14474-CA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1314

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-AAC

Gauge:

20

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Sensor - Crash (Engine Compartment)
• Sensor - Seat Track Position
• Sensor - Side Impact
• Solenoid - Down Shift
• Solenoid - Torque Control Coupling
• Valve - Heated PCV
• Valve - Heater Core Shut Off
• Valve - Transmission Fluid Warmer
