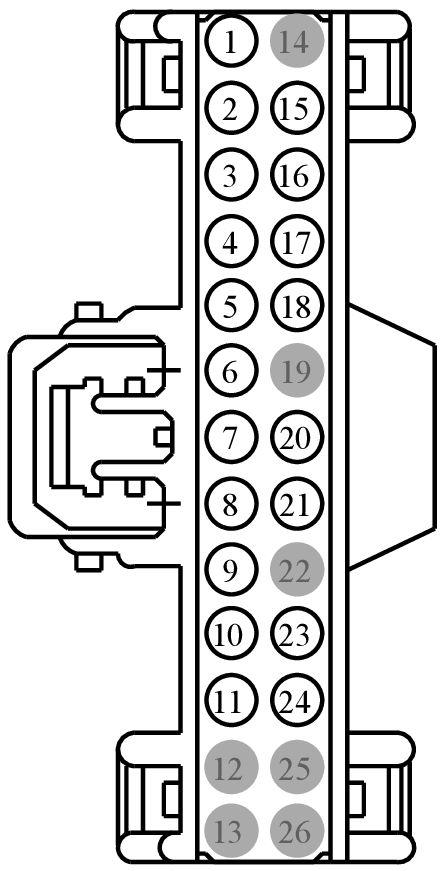

Connector End View (C3198) - REAR HEATING, VENTILATION AND AIR CONDITIONING (RHVAC) CONTROL MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3198	REAR HEATING, VENTILATION AND AIR CONDITIONING (RHVAC) CONTROL MODULE	BK	15K857	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VH101 (WH-VT)	20	CTRL MOD. - CLIMATE # BLOWER MOTOR CONTROL	N/A
2	CH235 (BU)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 3	N/A
3	CH233 (VT-BN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 1 / CLOSE (IF PLUS)	N/A
4	CH204 (GY-OG)	22	CTRL MOD. - POWERTRAIN # RELAY A/C CLUTCH	N/A
5	CH202 (BU-GN)	22	CTRL MOD. - POWERTRAIN # RELAY A/C CLUTCH	N/A
6	VH406 (VT-BN)	22	SENSOR - A/C EVAPORATOR TEMPERATURE (ACET)	N/A
7	RHA29 (WH-VT)	20	CTRL MOD. - REAR CLIMATE # VALVE REFRIGERANT TXV	N/A
8	GD311 (BK-VT)	22	GROUND - TUNNEL # 2ND STUD	N/A
9	CH201 (BN-BU)	22	CTRL MOD. - POWERTRAIN # RELAY A/C CLUTCH	N/A
10	CBP04 (YE-GN)	22	FUSE - 4 OR CIRCUIT BREAKER	N/A
11	SBP17 (RD)	20	FUSE - 17 OR CIRCUIT BREAKER	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	CH236 (WH)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 4	N/A
16	CH234 (YE-GN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 2 / OPEN (IF PLUS)	N/A
17	CH205 (BN-WH)	22	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 4	N/A
18	CH203 (GN-BN)	22	CTRL MOD. - POWERTRAIN # RELAY A/C CLUTCH	N/A
19	*	*	Not Used	N/A
20	CHP03 (GN-BN)	22	SWITCH - PTC HEATER	N/A
21	RH105 (GN)	22	SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS)	N/A
22	*	*	Not Used	N/A
23	CH232 (WH-BN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COMMON	N/A
24	CLN17 (BN)	22	SWITCH - IP/SWITCH ILLUMINATION	N/A
25	*	*	Not Used	N/A
26	*	*	Not Used	N/A
