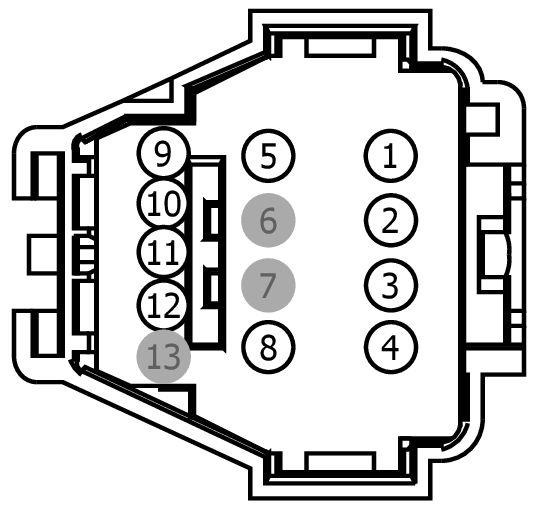

Connector End View (C2812) - BLOCK CONNECTOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2812	BLOCK CONNECTOR	BK	14401	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CLS22 (YE)	16	CTRL MOD. - SIDE MARKER REAR RIGHT	N/A
2	CLS26 (GN)	16	CTRL MOD. - SIDE MARKER REAR RIGHT	N/A
3	SBR42 (VT-RD)	16	FUSE - 30 OR CIRCUIT BREAKER	N/A
4	SBBA9 (GY-RD)	18	FUSE - 90 OR CIRCUIT BREAKER	N/A
5	SBR27 (BU-RD)	10	FUSE - 27 OR CIRCUIT BREAKER	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	SBR27 (BU-RD)	10	FUSE - 27 OR CIRCUIT BREAKER	N/A
9	VMC05 (VT-OG)	20	SWITCH - DOME LAMP DEFEAT (DISABLE) (OVERRIDE)	N/A
10	CBBA9 (WH-VT)	20	FUSE - 90 OR CIRCUIT BREAKER	N/A
11	SBR41 (VT-RD)	20	FUSE - 30 OR CIRCUIT BREAKER	N/A
12	SBR38 (BN-RD)	20	FUSE - 30 OR CIRCUIT BREAKER	N/A
12	SBR41 (VT-RD)	20	FUSE - 30 OR CIRCUIT BREAKER	UPFITTER	N/A
13	*	*	Not Used	N/A
