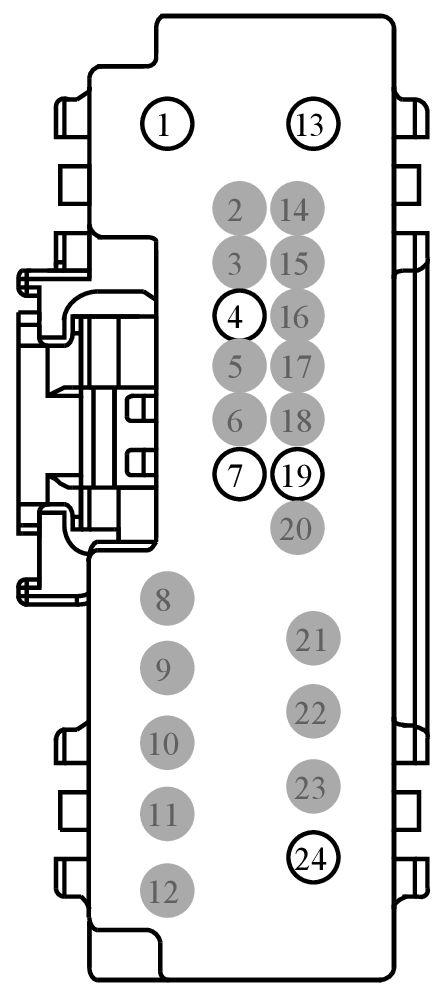

Connector End View (C2800) - ADAPTIVE FRONT LIGHTING MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2800	ADAPTIVE FRONT LIGHTING MODULE	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CLF34 (YE-OG)	18	CTRL MOD. - MOTOR DYNAMIC BENDING LIGHT RIGHT	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	GD134 (BK-VT)	18	GROUND - PILLAR A LEFT # 2ND STUD	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	VDB05 (WH)	22	CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL)	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	CLF29 (BN)	18	CTRL MOD. - INDICATOR FOG LAMPS FRONT	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	N/A
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
22	*	*	Not Used	N/A
23	*	*	Not Used	N/A
24	CLF12 (BN-YE)	18	CTRL MOD. - CORNERING LAMP RIGHT	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1550

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-AJA

Gauge:

14 16 20

Pin material:

Tin & Silver

Cavities:

24

Vehicle Uses:

• Lamp - Front Cornering/ Turn
• Module - Driver Door
• Module - Headlamp Control
• Module - Heated Seat
• Module - Seat Memory
• Module - Upfitter Interface
