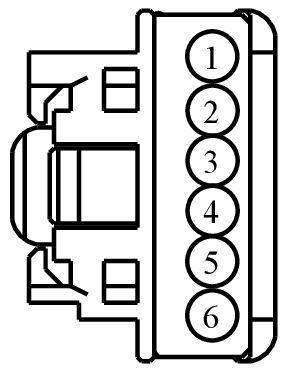

Connector End View (C2474) - FRONT CONTROLS INTERFACE MODULE (FCIM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2474	FRONT CONTROLS INTERFACE MODULE (FCIM)	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBP06 (BN-RD)	18	FUSE - 6 OR CIRCUIT BREAKER	N/A
2	CBP86 (WH-BU)	22	FUSE - 86 OR CIRCUIT BREAKER	N/A
3	CR114 (YE-OG)	22	CTRL MOD. - DEPLOY OUTPUT VEMS/TAS	N/A
4	CR116 (GN-WH)	22	CTRL MOD. - DEPLOY OUTPUT VEMS/TAS	N/A
5	VMC29 (YE)	22	SWITCH - DOME LAMP DEFEAT (DISABLE) (OVERRIDE)	N/A
6	GD133 (BK-WH)	18	GROUND - PILLAR A LEFT	N/A

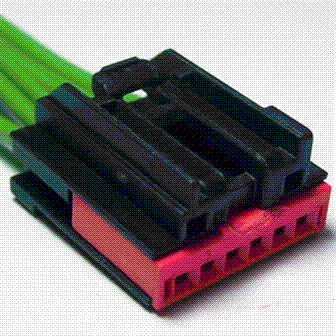

Available Pigtail Kits

Pigtail Kit Part Number WPT-1242

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-MJB

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Indicator - Passenger Airbag Deactivation (PADI)
• Sensor - EATC In Car Temperature
• Switch - Multifunction
