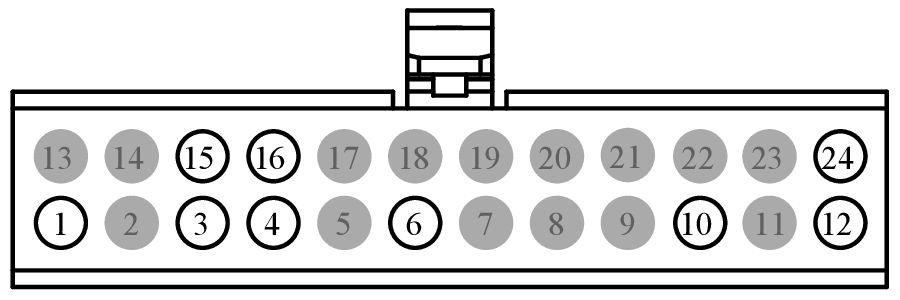

Connector End View (C2409) - TELEMATICS MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2409	TELEMATICS MODULE	BK	TBJ2009-FS	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GND2 (BK)	22	POWER GND	N/A
2	*	*	Not Used	N/A
3	TXD (YE)	22	SERIAL TRANS	N/A
4	RXD (GN)	22	SERIAL RECEIVE	N/A
5	*	*	Not Used	N/A
6	CGND (BK)	22	COMMON GND	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	IGNRS (GN)	22	IGN RUN	N/A
11	*	*	Not Used	N/A
12	VB1 (YE-RD)	22	VBATT	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	HSCANP (WH-BU)	22	HSCAN+	N/A
16	HSCANM (WH)	22	HSCAN-	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
22	*	*	Not Used	N/A
23	*	*	Not Used	N/A
24	5VTB (RD)	22	5V T-BOX	N/A
