Connector End View (C2383) - SYNC MODULE [APIM]

Connector: Description Color Harness Base Part # Service Pigtail
C2383 SYNC MODULE [APIM] BK 14401 part# N/A Not Available

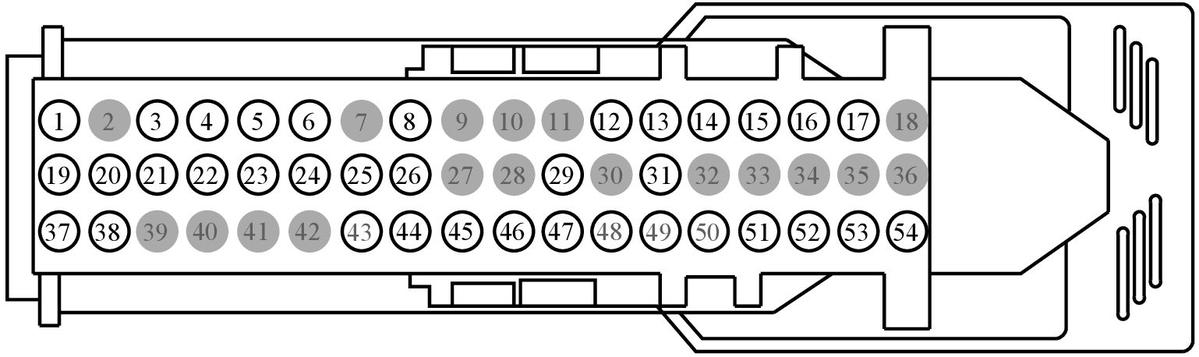

GFDWR19414Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 SBP67 (BU-RD) 22 FUSE - 67 OR CIRCUIT BREAKER SYNC GEN 1 N/A
1 SBP09 (BN-RD) 20 FUSE - 9 OR CIRCUIT BREAKER SYNC GEN 3 N/A
2 * * Not Used N/A
3 VME80 (VT-GN) 22 SWITCH - REDUNDANT AUDIO N/A
4 RME80 (BU-GY) 22 SWITCH - CONTACT PLATE SLIDING DOOR RIGHT # SPEAKER SLIDING DOOR N/A
5 VMM13 (YE-GN) 20 MICROPHONE - PHONE/VOICE CONTROL N/A
6 RMM13 (BU) 20 MICROPHONE - PHONE/VOICE CONTROL N/A
7 * * Not Used N/A
8 VME67 (VT-GY) 20 SWITCH - REDUNDANT AUDIO N/A
9 * * Not Used N/A
10 * * Not Used N/A
11 * * Not Used N/A
12 VMM13 (YE-GN) 20 MICROPHONE - PHONE/VOICE CONTROL N/A
13 RMM13 (BU) 20 MICROPHONE - PHONE/VOICE CONTROL N/A
14 VMP31 (BU) 22 SENSOR - PARKING AID # REAR # (RIGHT OUTER) N/A
15 RMP31 (GN) 22 CTRL MOD. - PARKING AID # SOUNDER REAR N/A
16 VDB13 (BU-GY) 22 CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL) SYNC GEN 1 N/A
17 VDB14 (VT-GY) 22 CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL) SYNC GEN 1 N/A
18 * * Not Used N/A
19 VDB13 (BU-GY) 22 CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL) N/A
20 VDB14 (VT-GY) 22 CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL) N/A
21 DME80 (*) 22 JACK - AUDIO # EXT. AUX IN N/A
22 DME17 (*) 22 CTRL MOD. - AUDIO # RADIO SYNC GEN 1 N/A
22 DME52 (*) 22 JACK - AUDIO # EXT. AUX IN N/A
23 VME18 (VT) 22 TACHOGRAPH - PULSE (PULSE PER METRE) SYNC GEN 1 N/A
23 VME52 (BU) 22 SWITCH - REDUNDANT AUDIO N/A
24 RME18 (YE) 22 CTRL MOD. - AUDIO # SPEAKER SUBWOOFER RIGHT REAR SYNC GEN 1 N/A
24 RME52 (GY-OG) 22 SWITCH - CONTACT PLATE SLIDING DOOR RIGHT # SPEAKER SLIDING DOOR N/A
25 VME17 (GN) 22 TACHOGRAPH - PULSE (PULSE PER METRE) SYNC GEN 1 N/A
25 VME53 (VT-GN) 22 SWITCH - REDUNDANT AUDIO N/A
26 RME17 (GY) 22 CTRL MOD. - AUDIO # RADIO LEFT SYNC GEN 1 N/A
26 RME53 (BN-WH) 22 SWITCH - CONTACT PLATE SLIDING DOOR RIGHT # SPEAKER SLIDING DOOR N/A
27 * * Not Used N/A
28 * * Not Used N/A
29 DMM13 (*) 22 CTRL MOD. - FORWARD SENSING # FORWARD LOOKING CAMERA SYNC GEN 1 N/A
30 * * Not Used N/A
31 DMM13 (*) 20 CTRL MOD. - FORWARD SENSING # FORWARD LOOKING CAMERA SYNC GEN 3 N/A
32 * * Not Used N/A
33 * * Not Used N/A
34 * * Not Used N/A
35 * * Not Used N/A
36 * * Not Used N/A
37 GD135 (BK-GY) 20 GROUND - PILLAR A LEFT # 3RD STUD SYNC GEN 1 N/A
37 GD338 (BK-WH) 20 GROUND - TUNNEL # 2ND STUD N/A
38 GD135 (BK-GY) 20 GROUND - PILLAR A LEFT # 3RD STUD SYNC GEN 1 N/A
38 RME67 (BN-WH) 20 SWITCH - CONTACT PLATE SLIDING DOOR RIGHT # SPEAKER SLIDING DOOR N/A
39 * * Not Used N/A
40 * * Not Used N/A
41 * * Not Used N/A
42 * * Not Used N/A
43 * * Not Used N/A
44 DME37 (*) 22 CTRL MOD. - AUDIO # REAR N/A
45 VME37 (GY-VT) 22 CTRL MOD. - ANTENNA # REAR WINDOW N/A
46 RME45 (YE-GN) 22 JACK - AUDIO # EXT. AUX IN LEFT (-) SYNC GEN 1 N/A
46 VME14 (GY-YE) 22 TACHOGRAPH - PULSE (PULSE PER METRE) N/A
47 RME24 (BU-WH) 22 CTRL MOD. - AUDIO # VIDEO N/A
47 VME38 (WH-OG) 22 CTRL MOD. - ANTENNA # REAR WINDOW SYNC GEN 1 N/A
48 * * Not Used N/A
49 * * Not Used N/A
50 * * Not Used N/A
51 VME58 (YE-VT) 22 SWITCH - REDUNDANT AUDIO N/A
52 VME59 (YE-OG) 22 SWITCH - REDUNDANT AUDIO N/A
53 VDB04 (WH-BU) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH N/A
54 VDB05 (WH) 22 CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL) N/A
