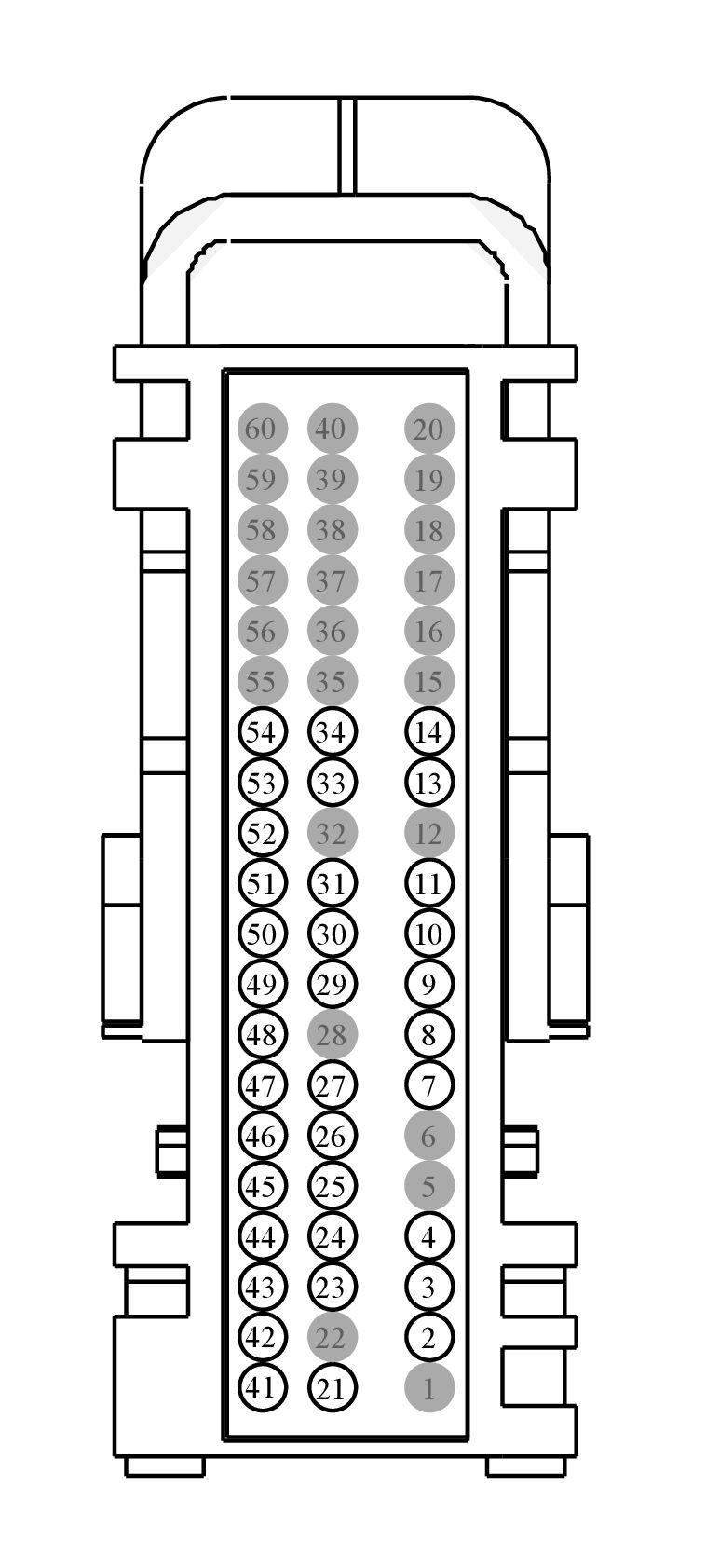

Connector End View (C2280C) - BODY CONTROL MODULE (BCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280C	BODY CONTROL MODULE (BCM)	BK	14401	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	CRD04 (BN-GN)	26	INDICATOR - HEATER REAR WINDOW	N/A
3	VMC34 (WH)	26	CTRL MOD. - STEERING WHEEL MODULE LIN BUS	N/A
4	VLF25 (GN-VT)	22	SENSOR - HEADLAMP LEVELING REAR	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	N/A
8	VDB05 (WH)	22	CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL)	N/A
9	VH406 (VT-BN)	22	SENSOR - A/C EVAPORATOR TEMPERATURE (ACET)	N/A
10	CH434 (GY-YE)	22	SWITCH - CLIMATE MODE # AC	N/A
11	CPL42 (GY-YE)	26	SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR)	N/A
11	CPL43 (BK-WH)	22	SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR)	N/A
12	*	*	Not Used	N/A
13	CPLXX (WH-YE)	26	SWITCH - VALET MODE # SET	N/A
14	CLN17 (BN)	22	SWITCH - IP/SWITCH ILLUMINATION	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
21	CLN27 (BN-GN)	20	SWITCH - VANITY MIRROR ILLUM. RIGHT	N/A
22	*	*	Not Used	N/A
23	VH414 (GN-BU)	22	SENSOR - DISCHARGE TEMP. # RIGHT 2ND	N/A
24	CDC13 (VT-GY)	22	CONVERTER - DC-DC # FAULT (DCF)	N/A
25	CMC25 (WH-VT)	22	SWITCH - PARKING BRAKE	N/A
26	CPL43 (VT-GY)	22	SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR)	N/A
27	CLS32 (BN-YE)	22	CTRL MOD. - SIDE MARKER REAR RIGHT	N/A
28	*	*	Not Used	N/A
29	RH105 (GN)	22	SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS)	N/A
30	GD133 (BK)	26	GROUND - PILLAR A LEFT	N/A
31	CRD03 (BU-GN)	26	INDICATOR - HEATER FRONT WINDOW	N/A
32	*	*	Not Used	N/A
33	CYD03 (BN-YE)	26	CTRL MOD. - DC/DC CONVERTER # INTERLOCK POS (DCINT+)	N/A
34	VRT23 (VT-GY)	22	TRANSCEIVER - PASSIVE ANTI THEFT (IMMOBILIZER) # RX DATA (RX_IN)	N/A
35	*	*	Not Used	N/A
36	*	*	Not Used	N/A
37	*	*	Not Used	N/A
38	*	*	Not Used	N/A
39	*	*	Not Used	N/A
40	*	*	Not Used	N/A
41	CET52 (GN)	20	SWITCH - TRANSMISSION PARK DETECT	N/A
42	LYA03 (YE-VT)	26	CTRL MOD. - DC/AC INVERTER # LED INDICATOR	N/A
43	CDC32 (BN-YE)	20	SWITCH - IGNITION # RUN	N/A
44	CDC33 (VT-GN)	22	SWITCH - IGNITION # RUN; ACCESSORY	N/A
45	CRD09 (BU-GY)	22	SWITCH - HEATER REAR WINDOW	N/A
46	CDC30 (BU-GY)	22	SWITCH - IGNITION # KEY IN	N/A
47	CRW10 (BU-GN)	26	CTRL MOD. - FRONT WIPER	N/A
48	CRD08 (GN-OG)	22	SWITCH - HEATER FRONT WINDOW	N/A
49	CHP03 (GN-BN)	22	SWITCH - PTC HEATER	N/A
50	CRH03 (BN)	26	SWITCH - HORN	N/A
50	CRH03 (BN)	22	SWITCH - HORN	N/A
51	CR115 (BN)	26	CTRL MOD. - DEPLOY OUTPUT VEMS/TAS	N/A
52	VMC05 (VT-OG)	20	SWITCH - DOME LAMP DEFEAT (DISABLE) (OVERRIDE)	N/A
53	CHP01 (BU)	22	CTRL MOD. - PTC HEATER # HEATER	N/A
54	VRT24 (YE-OG)	22	TRANSCEIVER - PASSIVE ANTI THEFT (IMMOBILIZER) # TX CNTRL	N/A
55	*	*	Not Used	N/A
56	*	*	Not Used	N/A
57	*	*	Not Used	N/A
58	*	*	Not Used	N/A
59	*	*	Not Used	N/A
60	*	*	Not Used	N/A
