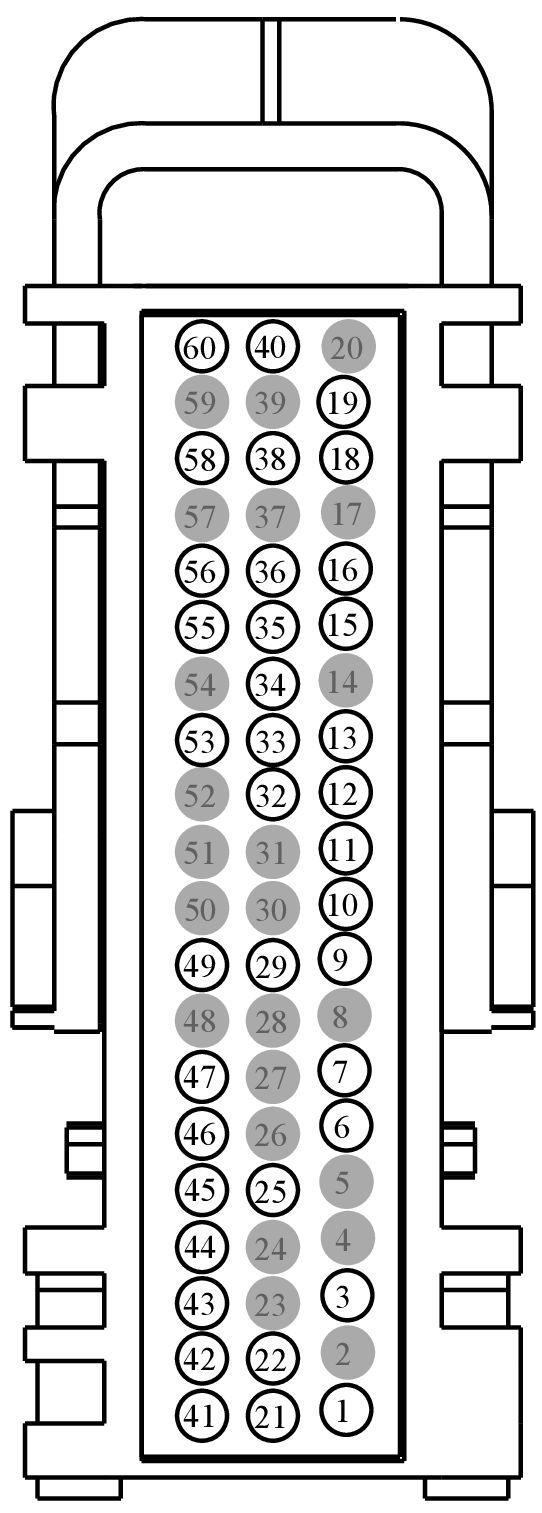

Connector End View (C2280B) - BODY CONTROL MODULE (BCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280B	BODY CONTROL MODULE (BCM)	BK	14014	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CLS08 (VT-GN)	20	CTRL MOD. - PARK REAR LEFT	N/A
2	*	*	Not Used	N/A
3	CLS27 (GN-OG)	18	CTRL MOD. - SIDE MARKER REAR RIGHT	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	CLS23 (GY-OG)	18	CTRL MOD. - SIDE MARKER REAR RIGHT	N/A
7	CHP03 (GN-BN)	22	SWITCH - PTC HEATER	N/A
8	*	*	Not Used	N/A
9	CLS44 (VT-BN)	18	CTRL MOD. - STOP	N/A
10	CLS45 (BN-GN)	18	CTRL MOD. - STOP/TURN RIGHT	N/A
11	CLS45 (VT-GN)	18	CTRL MOD. - STOP/TURN RIGHT	N/A
12	CLS44 (VT-BN)	18	CTRL MOD. - STOP	N/A
13	CLS09 (VT-GN)	20	CTRL MOD. - PARK REAR RIGHT	N/A
14	*	*	Not Used	N/A
15	CLS17 (YE-GY)	20	CTRL MOD. - SIDE MARKER REAR RIGHT	N/A
16	CPL53 (WH-OG)	18	SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR)	N/A
17	*	*	Not Used	N/A
18	CLN17 (BN)	22	SWITCH - IP/SWITCH ILLUMINATION	N/A
19	CHP01 (BU)	22	CTRL MOD. - PTC HEATER # HEATER	N/A
20	*	*	Not Used	N/A
21	CPL45 (YE-VT)	20	SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR)	N/A
22	CRD02 (BN-BU)	20	CTRL MOD. - RELAY HEATER REAR WINDOW	N/A
23	*	*	Not Used	N/A
24	*	*	Not Used	N/A
25	CPL39 (YE)	22	SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR)	N/A
26	*	*	Not Used	N/A
27	*	*	Not Used	N/A
28	*	*	Not Used	N/A
29	RMC32 (GN-BU)	20	CTRL MOD. - SENSOR FUEL LEVEL	N/A
30	*	*	Not Used	N/A
31	*	*	Not Used	N/A
32	VMP35 (WH-BU)	22	SENSOR - PARKING AID # REAR # (RIGHT OUTER)	N/A
33	CPL29 (YE-GY)	22	SWITCH - LATCH DRIVER # SET	N/A
34	CPL11 (GY-BN)	18	CTRL MOD. - DOOR LOCK # DRIVER LOCK	N/A
35	CPL53 (WH-OG)	18	SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR)	N/A
36	CPL42 (GY-YE)	22	SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR)	N/A
37	*	*	Not Used	N/A
38	VRB09 (GY-BU)	22	SENSOR - SIDE IMPACT ROW 3 PASSENGER SIDE	N/A
39	*	*	Not Used	N/A
40	VRB10 (YE-OG)	22	SENSOR - SIDE IMPACT ROW 3 PASSENGER SIDE	N/A
41	CDC03 (BU)	20	CONNECTOR - DIAGNOSTIC # FLASH EEPROM POWER SUPPLY (FEPS)	N/A
41	SRH01 (YE-RD)	20	RELAY - HORN	van	N/A
42	SRH01 (YE-RD)	20	RELAY - HORN	N/A
43	CRW02 (GY-BU)	20	CTRL MOD. - FRONT WIPER	N/A
44	CPL36 (GN)	22	SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR)	N/A
45	CPL26 (GN-VT)	22	CTRL MOD. - DOOR LOCK # PASSENGER DOORS LOCK (ALL EXCLUDING DRIVER)	N/A
46	CPL31 (WH)	22	SWITCH - LATCH PASSENGER # AJAR	N/A
47	CPL44 (YE-OG)	22	SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR)	N/A
48	*	*	Not Used	N/A
49	CPL45 (BN)	26	SWITCH - LATCH REAR DRIVER SIDE # AJAR (INCL.SLIDING DOOR)	N/A
50	*	*	Not Used	N/A
51	*	*	Not Used	N/A
52	*	*	Not Used	N/A
53	VMC11 (YE-VT)	20	SWITCH - DOME LAMP DEFEAT (DISABLE) (OVERRIDE)	N/A
