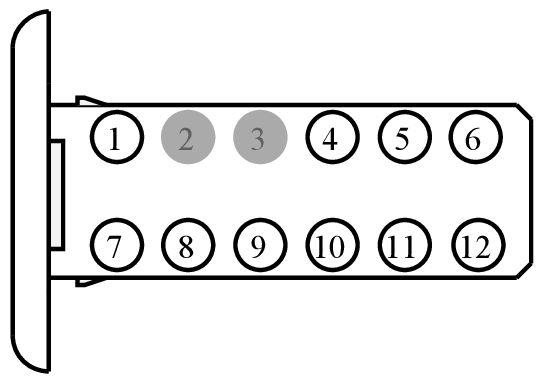

Connector End View (C2123) - FRONT CONTROL/DISPLAY INTERFACE MODULE (FCDIM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2123	FRONT CONTROL/DISPLAY INTERFACE MODULE (FCDIM)	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBP06 (BN-RD)	22	FUSE - 6 OR CIRCUIT BREAKER	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	VDB13 (BU-GY)	22	CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL)	N/A
5	VDB14 (VT-GY)	22	CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL)	N/A
6	VMP31 (BU)	22	SENSOR - PARKING AID # REAR # (RIGHT OUTER)	N/A
7	VME14 (GY-YE)	22	TACHOGRAPH - PULSE (PULSE PER METRE)	N/A
8	VMC29 (YE)	22	SWITCH - DOME LAMP DEFEAT (DISABLE) (OVERRIDE)	N/A
9	GD138 (BK-WH)	18	GROUND - PILLAR A RIGHT	N/A
10	RME24 (BU-WH)	22	CTRL MOD. - AUDIO # VIDEO	N/A
11	GD138 (BK-WH)	18	GROUND - PILLAR A RIGHT	N/A
12	RMP31 (GN)	22	CTRL MOD. - PARKING AID # SOUNDER REAR	N/A

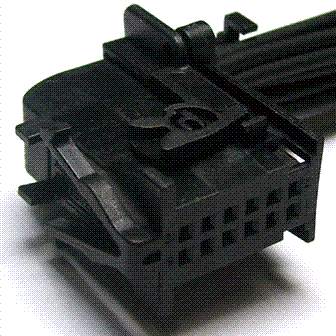

Available Pigtail Kits

Pigtail Kit Part Number WPT-1278

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ABA

Gauge:

18

Pin material:

Tin (greased)

Cavities:

12

Vehicle Uses:

• Message Center
• Module - Driver Information
• Module - Front Interface
