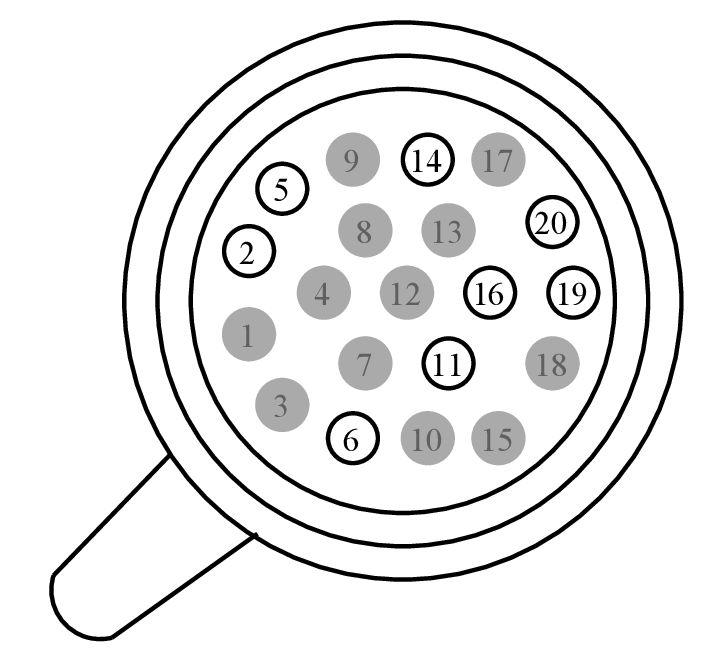

Connector End View (C1940) - MPS6 TRANSMISSION

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1940	MPS6 TRANSMISSION	BK	12A690	7M5T-14A464-DNA	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	- ()	*	Not Used	N/A
2	VDB05 (WH)	20	HS1 CAN -	N/A
3	- ()	*	Not Used	N/A
4	- ()	*	Not Used	N/A
5	VDB04 (WH-BU)	20	HS1 CAN +	N/A
6	CBB26 (BU-WH)	18	POWER B+ FUSE 26	N/A
7	- ()	*	Not Used	N/A
8	- ()	*	Not Used	N/A
9	- ()	*	Not Used	N/A
10	- ()	*	Not Used	N/A
11	CBB38 (GY-BU)	18	IGN FUSE 38	N/A
12	- ()	*	Not Used	N/A
13	- ()	*	Not Used	N/A
14	CDC26 (GY-OG)	20	CONVERTER - DC-DC # FAULT (DCF)	N/A
15	- ()	*	Not Used	N/A
16	CET42 (GN-VT)	20	CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL LOW-SIDE 2 (SS2)	N/A
17	- ()	*	Not Used	N/A
18	- ()	*	Not Used	N/A
19	GD120 (BK-GN)	16	GROUND	N/A
20	CET43 (GY)	20	CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL LOW-SIDE 2 (SS2)	N/A
