Connector End View (C1915E) - POWERTRAIN CONTROL MODULE (PCM)

Connector: Description Color Harness Base Part # Service Pigtail
C1915E POWERTRAIN CONTROL MODULE (PCM) BK 12A690 part# N/A Not Available

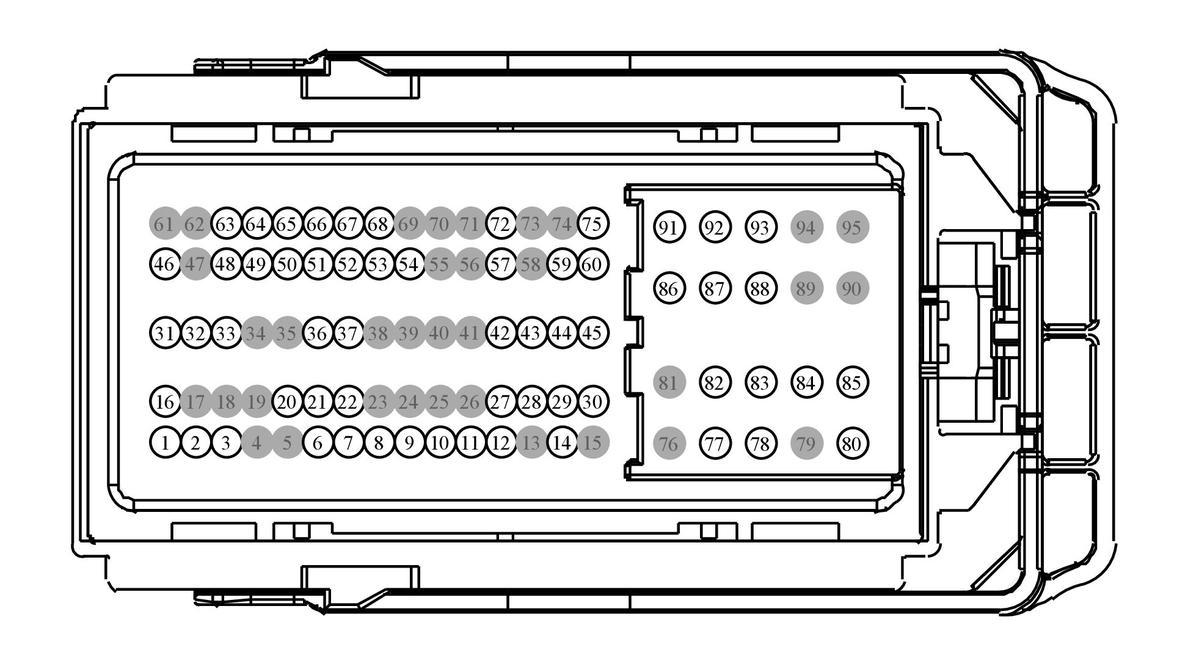

GFDWR19377Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
BU5T-14474-BA DU2Z-14474-CA 0.64
BU5T-14474-UA DU2Z-14474-DA 1.5
BU5T-14474-AA DU2Z-14474-CA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CE501 (GY) 18 CONTROL - INTAKE AIR BU5T-14474-BA
2 CET18 (GY-YE) 20 CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL LOW-SIDE 1 (SS1) BU5T-14474-AA
3 CE167 (YE-OG) 18 CTRL MOD. - POWERTRAIN # INDICATOR CATALYST OVERHEATED BU5T-14474-BA
4 * * Not Used N/A
5 * * Not Used N/A
6 LE143 (GN-BN) 20 CTRL MOD. - POWERTRAIN # ENGINE OIL QUALITY SENSOR BU5T-14474-AA
7 CE426 (BU-GN) 20 CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 2 (VCT2) BU5T-14474-AA
8 LE135 (GY-VT) 20 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) BU5T-14474-AA
9 CE908 (BU-BN) 20 SWITCH - ENGINE OIL LEVEL (EOL) BU5T-14474-AA
10 VET32 (VT) 20 SENSOR - TRANSMISSION RANGE # 4 (TR4) [DTRS] BU5T-14474-AA
11 VE711 (YE-VT) 20 SENSOR - CRANKSHAFT POSITION (CKPP) BU5T-14474-AA
12 RET26 (BN-GN) 20 CTRL MOD. - POWERTRAIN # SENSOR OUTPUT SHAFT SPEED (OSS) BU5T-14474-AA
13 * * Not Used N/A
14 VE827 (GN-WH) 18 SENSOR - WATER IN FUEL BU5T-14474-BA
15 * * Not Used N/A
16 CE178 (WH-OG) 18 CTRL MOD. - POWERTRAIN # INDICATOR CATALYST OVERHEATED BU5T-14474-BA
17 * * Not Used N/A
18 * * Not Used N/A
19 * * Not Used N/A
20 RE329 (WH-BN) 18 CTRL MOD. - POWERTRAIN # MANIFOLD PRESSURE SENSOR (MAP) BU5T-14474-BA
21 VDC46 (BU-BN) 20 CTRL MOD. - GENERATOR (ALTERNATOR) LIN BUS (NON-PCM CONTROLLED) BU5T-14474-AA
22 LET57 (WH-GN) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE ANALOG 2 (TR-A2BVREF) BU5T-14474-AA
23 * * Not Used N/A
24 * * Not Used N/A
25 * * Not Used N/A
26 * * Not Used N/A
27 VET33 (WH-OG) 20 SENSOR - TRANSMISSION RANGE # 4 (TR4) [DTRS] BU5T-14474-AA
28 VE706 (BN-BU) 20 SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP1) [CID-H] (CID1) BU5T-14474-AA
29 CE508 (VT-BN) 18 CTRL MOD. - EXHAUST GAS RECIRCULATION BU5T-14474-BA
30 CET08 (BN-WH) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 4 (PC4) [EPC] [VFS] BU5T-14474-AA
31 RE427 (YE-VT) 20 CTRL MOD. - SENSOR CLUTCH PEDAL BU5T-14474-AA
32 RET24 (BN-BU) 20 CTRL MOD. - POWERTRAIN # SENSOR OUTPUT SHAFT SPEED (OSS) BU5T-14474-AA
33 VE803 (YE) 20 SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP) BU5T-14474-AA
34 * * Not Used N/A
35 * * Not Used N/A
36 VE716 (YE) 20 SENSOR - DELTA PRESSURE FEEDBACK EGR (DPFE) BU5T-14474-AA
37 VE727 (BU-BN) 20 SENSOR - FUEL RAIL PRESSURE/INJECTION PRESSURE (FRP) (IPS) BU5T-14474-AA
38 * * Not Used N/A
39 * * Not Used N/A
40 * * Not Used N/A
41 * * Not Used N/A
42 CE303 (WH-VT) 20 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP-A) BU5T-14474-AA
43 CE306 (GN-VT) 20 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP-D) BU5T-14474-AA
44 CET10 (BU-GY) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 6 (PC6) [EPC] [VFS] BU5T-14474-AA
45 CET06 (GN-BN) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 2 (PC2) [EPC] [VFS] BU5T-14474-AA
46 VE712 (BU-GY) 20 SENSOR - CYLINDER HEAD TEMPERATURE (CHT) BU5T-14474-AA
47 * * Not Used N/A
48 VE826 (BN-VT) 18 SENSOR - WATER IN FUEL BU5T-14474-BA
49 LE451 (BN-YE) 18 CTRL MOD. - SENSOR CLUTCH PEDAL BU5T-14474-BA
50 VE802 (BN-BU) 20 SENSOR - KNOCK 2ND (KS2P) [KSL2+] BU5T-14474-AA
51 RE324 (BN-GN) 20 CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND (KS2N) [KSL2-] BU5T-14474-AA
52 CE412 (YE-VT) 20 CTRL MOD. - POWERTRAIN # SUPERCHARGER INTERCOOLER PUMP CONTROL (SCIPC) BU5T-14474-AA
53 RE135 (GN-BN) 20 CTRL MOD. - ACP BUS MINUS (AUDIO CONTROL PROTOCOL) BU5T-14474-AA
54 VE707 (GN-VT) 20 SENSOR - CAMSHAFT POSITION BANK 2 IN+EX / IN (CMP2) [CID-H] (CID2) BU5T-14474-AA
55 * * Not Used N/A
56 * * Not Used N/A
57 CE304 (YE-BU) 20 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP-B) BU5T-14474-AA
58 * * Not Used N/A
59 CET09 (YE-VT) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 5 (PC5) [EPC] [VFS] BU5T-14474-AA
60 CET05 (BN-GN) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 1 (PC1) [EPC] [VFS] BU5T-14474-AA
61 * * Not Used N/A
62 * * Not Used N/A
63 LE448 (GY-BU) 18 CTRL MOD. - SENSOR CLUTCH PEDAL BU5T-14474-BA
64 LE452 (GN) 18 CTRL MOD. - SENSOR CLUTCH PEDAL BU5T-14474-BA
65 VE801 (VT-OG) 20 SENSOR - KNOCK 1ST OR UNIQUE (KS1P) [KSL1+] BU5T-14474-AA
66 RE323 (WH-BN) 20 CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST OR UNIQUE (KS1N) [KSL1-] BU5T-14474-AA
67 VET27 (BN-YE) 20 SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) BU5T-14474-AA
68 VE818 (BN) 20 SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1-NS) BU5T-14474-AA
69 * * Not Used N/A
70 * * Not Used N/A
71 * * Not Used N/A
72 CE305 (BU-OG) 20 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP-C) BU5T-14474-AA
73 * * Not Used N/A
74 * * Not Used N/A
75 CET07 (GY-OG) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 3 (PC3) [EPC] [VFS] BU5T-14474-AA
76 * * Not Used N/A
77 RE256 (GY-BU) 18 CTRL MOD. - POWERTRAIN # HEATED OXYGEN SENSOR PRE CAT 2ND 7C3T-14474-DA
78 CE256 (BU-OG) 18 CTRL MOD. - POWERTRAIN # HOLD PCM RELAY (PCM) 7C3T-14474-DA
79 * * Not Used N/A
80 CET25 (BU-GN) 20 CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL LOW-SIDE 2 (SS2) BU5T-14474-UA
81 * * Not Used N/A
82 RE207 (GN-VT) 18 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) 7C3T-14474-DA
83 RE206 (BU-OG) 18 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) 7C3T-14474-DA
84 RE205 (YE-BU) 18 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) 7C3T-14474-DA
85 RE208 (BU) 18 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) 7C3T-14474-DA
86 VE819 (GN-VT) 18 SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2-PS) 7C3T-14474-DA
87 CE205 (GN-BU) 18 CTRL MOD. - POWERTRAIN # INDICATOR CATALYST OVERHEATED 7C3T-14474-DA
88 CE206 (GY-YE) 18 CTRL MOD. - POWERTRAIN # INDICATOR CATALYST OVERHEATED 7C3T-14474-DA
89 * * Not Used N/A
90 * * Not Used N/A
91 LE428 (BU-WH) 18 CTRL MOD. - POWERTRAIN # THROTTLE POSITION (TPREF) 7C3T-14474-DA
92 CE208 (YE-OG) 18 CTRL MOD. - POWERTRAIN # INDICATOR CATALYST OVERHEATED 7C3T-14474-DA
93 CE207 (VT-GY) 18 CTRL MOD. - POWERTRAIN # INDICATOR CATALYST OVERHEATED 7C3T-14474-DA
94 * * Not Used N/A
95 * * Not Used N/A
