Connector End View (C1915B) - POWERTRAIN CONTROL MODULE (PCM)

Connector: Description Color Harness Base Part # Service Pigtail
C1915B POWERTRAIN CONTROL MODULE (PCM) BK 12A690 part# N/A Not Available

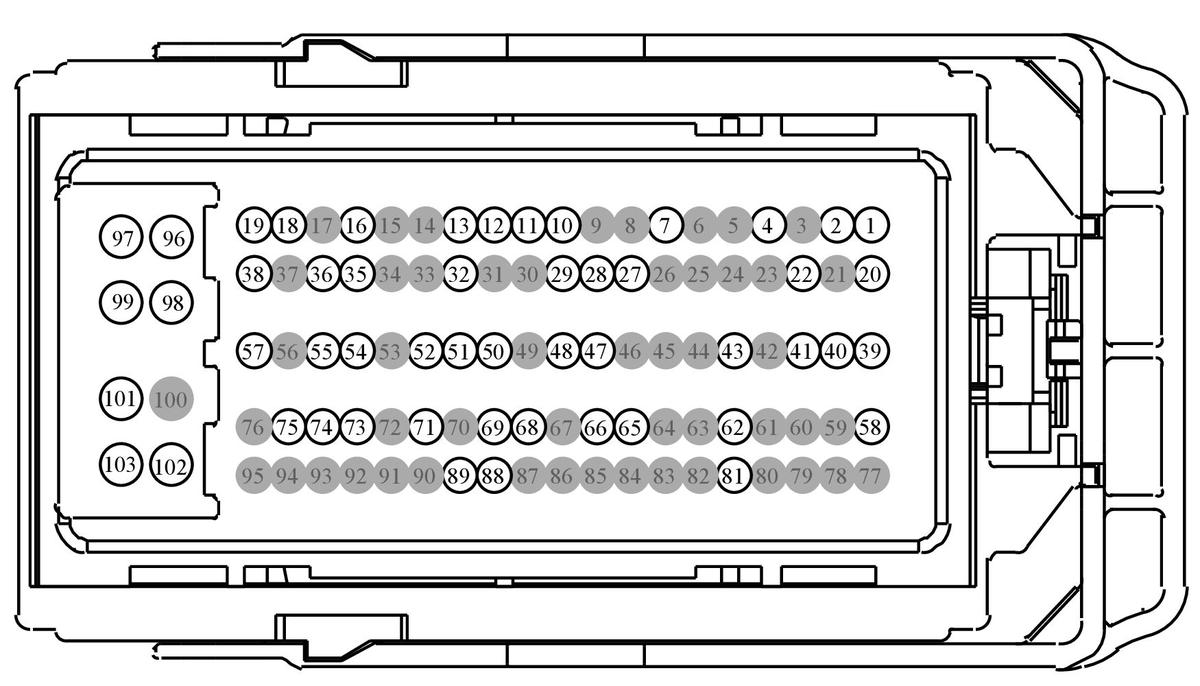

GFDWR19378Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
BU5T-14474-BA DU2Z-14474-CA 0.64
BU5T-14474-AA DU2Z-14474-CA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 RE731 (WH-OG) 18 DRIVER - FUEL PUMP MOTOR (FPDM) BU5T-14474-BA
2 CH109 (WH-OG) 20 TRANSAXLE MANAGEMENT UNIT - MOTOR TORQUE AC SENSOR (TMAC) BU5T-14474-AA
3 * * Not Used N/A
4 VE203 (VT) 20 CTRL MOD. - POWERTRAIN # FAN CONTROL VARIABLE (FC-V) BU5T-14474-AA
5 * * Not Used N/A
6 * * Not Used N/A
7 RET42 (GN-VT) 20 CTRL MOD. - POWERTRAIN # SENSOR OUTPUT SHAFT SPEED (OSS) BU5T-14474-AA
8 * * Not Used N/A
9 * * Not Used N/A
10 LE137 (BU-GY) 20 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) BU5T-14474-AA
11 LH108 (GY-BN) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE ANALOG 2 (TR-A2BVREF) BU5T-14474-AA
12 LE136 (GN-OG) 20 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) BU5T-14474-AA
13 LE238 (GY) 20 CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR BU5T-14474-AA
14 * * Not Used N/A
15 * * Not Used N/A
16 RE238 (GN-VT) 20 CTRL MOD. - POWERTRAIN # FUEL TEMP. SENSOR BU5T-14474-AA
17 * * Not Used N/A
18 RH107 (GN-BU) 20 CTRL MOD. - AMBIENT TEMP. SENSOR BU5T-14474-AA
19 RE804 (GY-BU) 20 DRIVER - FUEL PUMP MOTOR (FPDM) BU5T-14474-AA
20 CE112 (GN-VT) 20 CTRL MOD. - POWERTRAIN # CANISTER PURGE PUMP CONTROL (CANPPC) BU5T-14474-AA
21 * * Not Used N/A
22 CE113 (WH-BN) 18 CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP) BU5T-14474-BA
23 * * Not Used N/A
24 * * Not Used N/A
25 * * Not Used N/A
26 * * Not Used N/A
27 VE518 (BN-WH) 20 MONITOR - FUEL PUMP (FPM) BU5T-14474-AA
28 CE436 (VT-OG) 20 CTRL MOD. -WAKE UP PCM BU5T-14474-AA
29 VE518 (BN-WH) 20 MONITOR - FUEL PUMP (FPM) BU5T-14474-AA
30 * * Not Used N/A
31 * * Not Used N/A
32 VE805 (GY-OG) 20 SENSOR - MANIFOLD TEMPERATURE BU5T-14474-AA
33 * * Not Used N/A
34 * * Not Used N/A
35 RE137 (YE-GN) 20 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2RTN) BU5T-14474-AA
36 RE136 (VT-GN) 20 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1RTN) BU5T-14474-AA
37 * * Not Used N/A
38 RE242 (GN) 18 CTRL MOD. - POWERTRAIN # HEATED OXYGEN SENSOR POST CAT 1ST OR UNIQUE BU5T-14474-BA
39 VE225 (YE-OG) 20 CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC) BU5T-14474-AA
40 CE172 (GN) 20 CTRL MOD. - POWERTRAIN # INDICATOR CATALYST OVERHEATED BU5T-14474-AA
41 VE462 (WH-BN) 18 CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC) BU5T-14474-BA
42 * * Not Used N/A
43 CDC12 (YE) 20 CONTROL UNIT - BATTERY # POWER OFF (BPO) BU5T-14474-AA
44 * * Not Used N/A
45 * * Not Used N/A
46 * * Not Used N/A
47 CDC12 (BU-YE) 20 CONTROL UNIT - BATTERY # POWER OFF (BPO) BU5T-14474-AA
48 CBB38 (GY-BU) 20 FUSE - 38 OR CIRCUIT BREAKER BU5T-14474-AA
49 * * Not Used N/A
50 VDC46 (BU-BN) 20 CTRL MOD. - GENERATOR (ALTERNATOR) LIN BUS (NON-PCM CONTROLLED) BU5T-14474-AA
51 VH407 (YE-GN) 20 SENSOR - AMBIENT TEMP. BU5T-14474-AA
52 VH442 (GN-BN) 20 SENSOR - THERMAL EXPANSION VALVE TEMPERATURE (TXVTS) BU5T-14474-AA
53 * * Not Used N/A
54 VE702 (BU-WH) 20 SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) BU5T-14474-AA
55 VE701 (YE-OG) 20 SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) BU5T-14474-AA
56 * * Not Used N/A
57 VE731 (YE-GN) 18 SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) BU5T-14474-BA
58 CE302 (YE-BU) 20 CTRL MOD. - POWERTRAIN # IDLE AIR CONTROL VALVE (IAC) BU5T-14474-AA
59 * * Not Used N/A
60 * * Not Used N/A
61 * * Not Used N/A
62 CDC12 (BU-WH) 20 CONTROL UNIT - BATTERY # POWER OFF (BPO) BU5T-14474-AA
63 * * Not Used N/A
64 * * Not Used N/A
65 CES09 (VT-OG) 20 SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) BU5T-14474-AA
66 CCB08 (VT-WH) 20 CTRL MOD. - ELEC.PARK BRAKE # APPLY BU5T-14474-AA
67 * * Not Used N/A
68 VDB05 (WH) 20 CTRL MOD. - GENERIC # UBP BUS (UART BASED PROTOCOL) BU5T-14474-AA
69 VDB04 (WH-BU) 20 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH BU5T-14474-AA
70 * * Not Used N/A
71 VE761 (BN-BU) 18 SENSOR - INTERMEDIATE SHAFT SPEED (ISS) BU5T-14474-BA
72 * * Not Used N/A
73 VE922 (VT-GN) 20 SENSOR - WATER IN FUEL BU5T-14474-AA
74 VE804 (GN-BN) 20 SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) BU5T-14474-AA
75 VE805 (GY-OG) 20 SENSOR - MANIFOLD TEMPERATURE BU5T-14474-AA
76 * * Not Used N/A
77 * * Not Used N/A
78 * * Not Used N/A
79 * * Not Used N/A
80 * * Not Used N/A
81 CE171 (YE-VT) 20 CTRL MOD. - POWERTRAIN # INDICATOR CATALYST OVERHEATED BU5T-14474-AA
82 * * Not Used N/A
83 * * Not Used N/A
84 * * Not Used N/A
85 * * Not Used N/A
86 * * Not Used N/A
87 * * Not Used N/A
88 CET42 (WH-GN) 20 CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL LOW-SIDE 2 (SS2) BU5T-14474-AA
89 CET43 (BN-VT) 20 CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL LOW-SIDE 2 (SS2) BU5T-14474-AA
90 * * Not Used N/A
91 * * Not Used N/A
92 * * Not Used N/A
93 * * Not Used N/A
94 * * Not Used N/A
95 * * Not Used N/A
96 GD120 (BK-GN) 16 GROUND - CROSS CAR BEAM # 3RD STUD 7C3T-14474-DA
97 GD120 (BK-GN) 16 GROUND - CROSS CAR BEAM # 3RD STUD 7C3T-14474-DA
98 GD120 (BK-GN) 16 GROUND - CROSS CAR BEAM # 3RD STUD 7C3T-14474-DA
99 GD120 (BK-GN) 16 GROUND - CROSS CAR BEAM # 3RD STUD 7C3T-14474-DA
100 * * Not Used N/A
101 CBB32 (GN-VT) 16 FUSE - 32 OR CIRCUIT BREAKER 7C3T-14474-DA
102 CBB32 (GN-VT) 16 FUSE - 32 OR CIRCUIT BREAKER 7C3T-14474-DA
103 CBB32 (GN-VT) 16 FUSE - 32 OR CIRCUIT BREAKER 7C3T-14474-DA
